一．Product Introduction

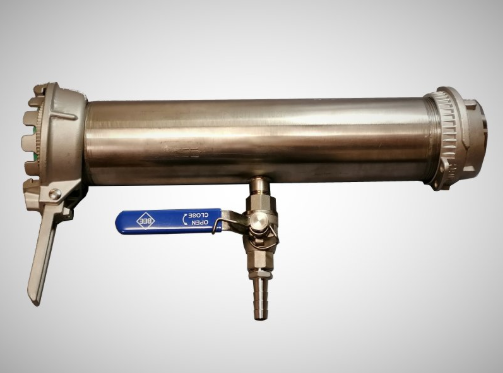

The 9S Tank Truck Sampling Valve “Inline” is a specialized valve engineered for efficient, representative, and GMP-compliant sampling of liquids in tank truck applications, spanning industries like petroleum, chemicals, and bulk liquid transport. Designed to integrate directly into tank truck pipelines (inline configuration), this valve enables operators to extract samples without disrupting the main flow or compromising the integrity of the stored medium.
It addresses the critical need for accurate sampling in high-volume tank truck operations, ensuring samples reflect the quality and composition of the bulk liquid for compliance testing, quality control, and regulatory audits. Its robust build and inline design make it a reliable solution for demanding transport and storage environments, aligning with strict industry standards for safety and precision.
二．Product Features
- Inline Integration Design: Installs directly into tank truck pipelines, enabling seamless sampling without bypassing or interrupting the main process flow, improving operational efficiency.
- GMP-Compliant Sampling: Engineered to meet GMP standards, ensuring minimal contamination, sample integrity, and adherence to pharmaceutical, chemical, and petroleum industry regulations.
- Leak-Tight & Safe Operation: Features secure seals and a robust construction to prevent spills, leaks, and exposure to hazardous liquids, prioritizing operator safety during sampling.
- High-Durability Construction: Manufactured from premium stainless steel (e.g., 316L), resistant to corrosion from aggressive chemicals, fuels, and environmental factors, ensuring long-term reliability.
- Intuitive Operation: Equipped with a color-coded (blue) lever for clear “OPEN/CLOSE” actuation, enabling straightforward, one-handed operation even in challenging conditions.
- Minimal Dead Space: Optimized internal geometry eliminates residue accumulation points, ensuring accurate, representative samples and reducing cross-contamination risks between different cargoes.
- Versatile Liquid Compatibility: Suitable for sampling a wide range of liquids, including petroleum products, chemicals, lubricants, and pharmaceutical-grade fluids.
三．Technical Data
| Parameter | Specification |
|---|---|
| Design Type | Inline Tank Truck Sampling Valve |
| Wetted Material | 316L Stainless Steel |
| Connection Type | Inline Flanged (compatible with tank truck pipeline standards) |
| Nominal Diameter (DN) | DN50 (typical, customizable) |
| Max Operating Pressure | 16 bar (232 psi) |
| Max Operating Temperature | -20°C to 120°C |
| Seal Material | PTFE, Viton (chemical-resistant, leak-tight) |
| Actuation Type | Manual (Blue Lever, “OPEN/CLOSE” Marked) |
| Compliance | GMP, API, ASME B31.3 |
| Sampling Flow Control | Precise, adjustable via lever actuation |
| Weight | Approx. 10–15 kg (varies by configuration) |
