All Weather Breather Valve ( HXF-I )

The All Weather Breather Valve (HXF-I) is a specialized ventilation device engineered for installation on petrochemical storage tanks. Its core functions are to prevent tank damage caused by internal overpressure or excessive vacuum, block external flame intrusion, and minimize the volatilization loss of stored liquids. Our HXF-I series breather valves adopt a scientifically optimized compact structure, featuring large ventilation capacity and minimal leakage rate. To meet diverse market demands, the product line includes breathing type, single exhalation type, and single inhalation type variants. These structural forms can be used independently, and are also compatible with fire resistance devices as well as exhalation and inhalation end connecting pipes.

Ⅰ．Product Introduction

The All Weather Breather Valve (HXF-I) is a specialized ventilation device engineered for installation on petrochemical storage tanks. Its core functions are to prevent tank damage caused by internal overpressure or excessive vacuum, block external flame intrusion, and minimize the volatilization loss of stored liquids.

Our HXF-I series breather valves adopt a scientifically optimized compact structure, featuring large ventilation capacity and minimal leakage rate. To meet diverse market demands, the product line includes breathing type, single exhalation type, and single inhalation type variants. These structural forms can be used independently, and are also compatible with fire resistance devices as well as exhalation and inhalation end connecting pipes.

Tailored materials are selected for the valves to adapt to storage tanks holding different media such as oil products, chemicals, and food, fully satisfying the process requirements of storage and transportation systems. For scenarios with thermal insulation needs, the valve can be customized into a sandwich structure. For applications requiring special pressure ratings or large-diameter specifications, our company can conduct customized design and production based on the specific parameters provided by customers.

Ⅱ．Product Features

Multi-functional Protection

Simultaneously prevents tank overpressure and over-vacuum, and blocks external flame from entering the tank, providing comprehensive protection for storage tanks and stored media.
High Ventilation Efficiency & Low Leakage

Adopts a compact and scientific structural design, which ensures large ventilation capacity to quickly balance tank internal pressure, and minimizes liquid volatilization loss due to low leakage rate.
Diverse Structural Options

Offers breathing type, single exhalation type and single inhalation type; can be used alone or combined with fire resistance devices and connecting pipes, meeting various application scenarios.
Customizable Material Configuration

Provides multiple material combinations according to different stored media (oil products, chemicals, food, etc.), ensuring excellent corrosion resistance and compatibility.
Insulation Customization

Can be designed into a sandwich structure to meet the thermal insulation requirements of special working conditions.
Customizable Specifications

Supports customized design and production for special pressure rating and large-diameter requirements, adapting to non-standard application scenarios.

Ⅲ．Technical Data Summary

1. Housing Material and Applicable Media

Model Grade	Monoblock	MinPan	Guide Rod	Fire Resistance Layer	Sealed Seat	Applicable Medium
Ⅰ	Cast Aluminium Alloy	Alufer	1CR13	304	Polytetrafluoroethylene (PTFE)	Oil
Ⅱ	Carbon Steel	304	304	304	Polytetrafluoroethylene (PTFE)	Oil products, Chemical products
Ⅲ	SS304	304	304	304	Polytetrafluoroethylene (PTFE)	Chemicals
Ⅳ	SS304L	304L	304L	304L	Polytetrafluoroethylene (PTFE)	Chemicals
Ⅴ	SS316	316	316	316	Polytetrafluoroethylene (PTFE)	Chemicals
Ⅵ	SS316L	316L	316L	316L	Polytetrafluoroethylene (PTFE)	Chemicals
Ⅶ	PP	PP	PP	–	PP	Chemicals
Ⅷ	PVC	PVC	PVC	–	PP	Chemicals

2. Operating Pressure

Pressure Rating	Exhalation Pressure	Inhalation Pressure
A	+355Pa (36mmH₂O)	-295Pa (30mmH₂O)
B	+980Pa (100mmH₂O)	-295Pa (30mmH₂O)
C	+1765Pa (180mmH₂O)	-392Pa (40mmH₂O)
D	Customized by User	Customized by User

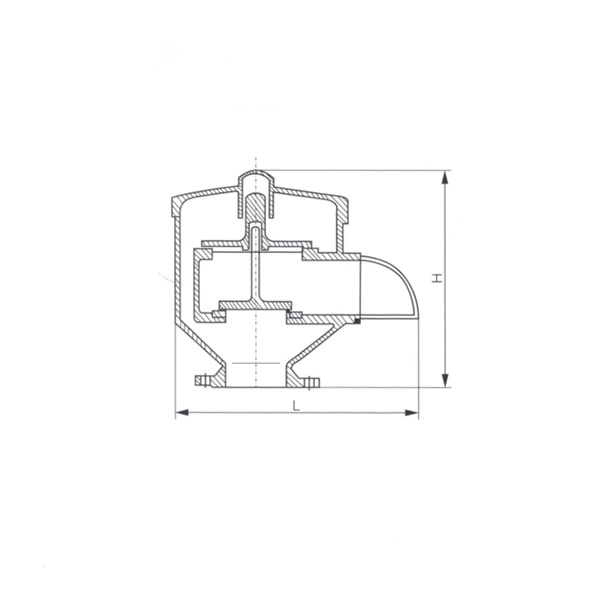

Ⅳ．The main shape and connection size

Aeration and leakage amount of the breathing valve

code name	pressure rating	Each each capacity of m3/h
code name	pressure rating	50	80	100	150	200	250
A	+355	25	60	90	190	340	550
A	-295	20	50	75	160	280	450
B	+980	30	70	100	200	380	600
B	-295	20	50	75	160	280	450
C	+1765	40	95	140	280	500	800
C	-295	20	50	75	160	280	450
Standard allows leakage of m³ / h		≤0.04				≤0.4

parameter table

DN	L	H
50	160	255
80	213	260
100	265	290
150	305	330
200	355	350
250	420	400
300	480	510
