â… . Product Introduction

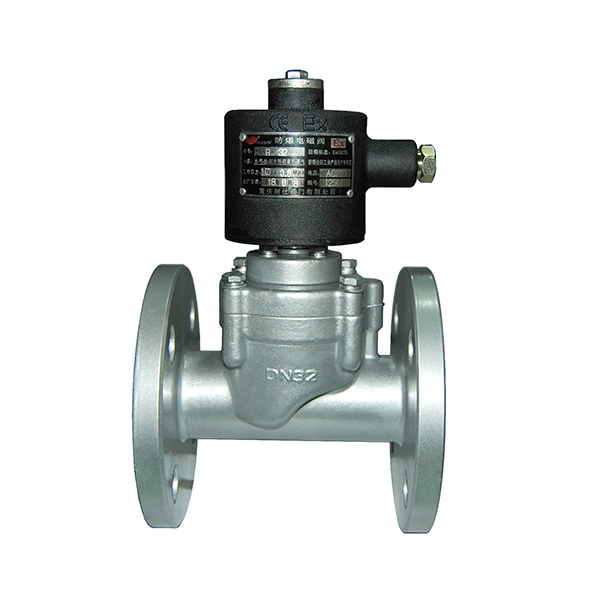

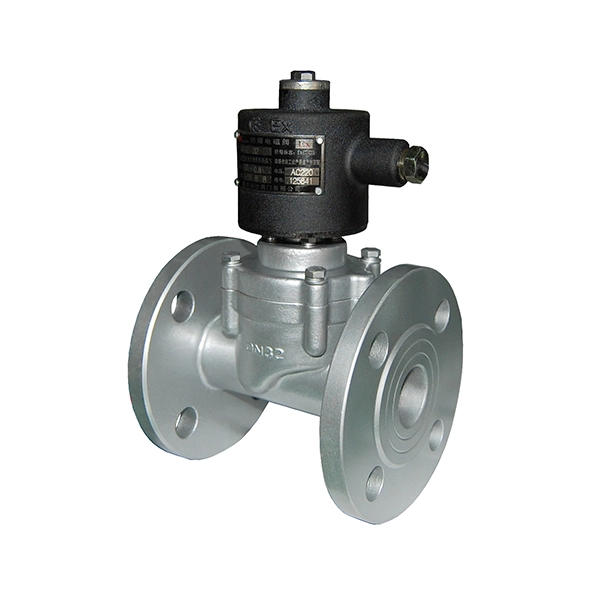

Gas Solenoid Valve is a kind of automatic control component specially used in gas and various special fluid pipeline systems to control the opening and closing of the valve through electromagnetic signals. As a key control part in the pipeline system, its core function is to realize fast and accurate on-off control of gas and other fluids. It is widely used in petrochemical industry, urban gas supply, metallurgy, food processing, medicine, energy and many other fields. Whether it is a household gas water heater, industrial gas combustion equipment, or a large-scale gas transmission pipeline network, the gas solenoid valve assumes the important responsibility of ensuring the safe and stable operation of the system.
With the characteristics of electromagnetic drive, this type of valve has a fast response speed, which can complete the opening and closing action in an instant after receiving the control signal, effectively avoiding potential safety hazards such as fluid leakage. At the same time, combined with different structural designs, material selections and parameter configurations, it can be adapted to working scenarios with different medium characteristics, pressure levels and temperature ranges, meeting the diverse industrial and civil needs. It is an indispensable important component in the modern fluid control system.
â…¡. Product Features
1. Precise Control and Fast Response: Adopting pilot-type action mode and high-performance electromagnetic coil, ensuring that the valve can respond quickly after receiving the control signal, realizing precise on-off control of gas and other fluids with high opening and closing sensitivity and no delay, effectively improving the control precision of the pipeline system.
2. Wide Adaptability and Strong Versatility: Covering a variety of caliber specifications, pressure levels and temperature ranges, it can be adapted to flammable gases, corrosive gases, flammable and explosive fluids and other media. At the same time, it supports a variety of international standard voltages, is compatible with different control systems, and can meet the usage needs of different industries and scenarios.
3. Excellent Sealing Performance and Zero Leakage Guarantee: Adopting high-precision sealing structure design and high-quality sealing materials to achieve zero leakage sealing effect. This is crucial for the control of flammable, explosive, toxic and harmful media such as gas, which can maximize the avoidance of safety accidents caused by medium leakage and ensure the safe operation of the system.
4. High-Quality Materials and Strong Durability: The valve body is made of high-quality materials such as stainless steel (304, 316, 316L), cast steel and aluminum alloy, which have good corrosion resistance, high temperature resistance and pressure resistance. It can adapt to complex and harsh working environments, effectively extend the service life of the valve and reduce the later maintenance cost.
5. Convenient Installation and Diverse Connections: Providing a variety of connection methods such as threaded (internal thread, external thread), flange, welding, clamp and union, which can be flexibly selected according to the actual installation scenario and pipeline layout. The installation process is simple and suitable for different pipeline connection needs.
6. Stable Operation and High Reliability: The working temperature of the coil is strictly controlled within a safe range with good heat dissipation performance, avoiding damage to the valve operation due to overheating of the coil. At the same time, the overall structure design is reasonable, the mechanical failure rate is low, and it can maintain stable performance during long-term continuous work, improving the overall reliability of the system.
7. Flexible Control and Simple Operation: Supporting two control modes: normally closed and normally open, which can be selected according to the working needs of the system. No complicated manual operation is required, and remote or automatic control can be realized through electromagnetic signals, simplifying the control process of the system.
â…¢. Technical Data
1. Action mode: Pilot type
2. Diameter range: DN0.1-600mm
3. Working environment temperature: -30—+80℃; -50—+100℃
4. Coil operating temperature: <+50℃, <+85℃
5. Control mode: Normally closed, Normally open
6. International standard voltage: AC (380, 220, 110, 24) V, DC (220, 110, 24, 12) V
7. Circulating fluid medium: Flammable gas, corrosive fluid, flammable and explosive fluids, etc.
8. Circulating fluid temperature: <-200℃, <-100℃, <-40℃, <+60℃, <+120℃, <+200℃, <+350℃
9. Circulating fluid pressure: 6bar, 16bar, 25bar, 40bar, 64bar, 100bar, 150bar, 200bar
10. Valve body material: Stainless steel (304, 316, 316L), cast steel, aluminum alloy
11. Connection method: Threaded (internal thread, external thread), flange, welding, clamp, union
12. Leakage: Zero leakage
