一．Product Introduction

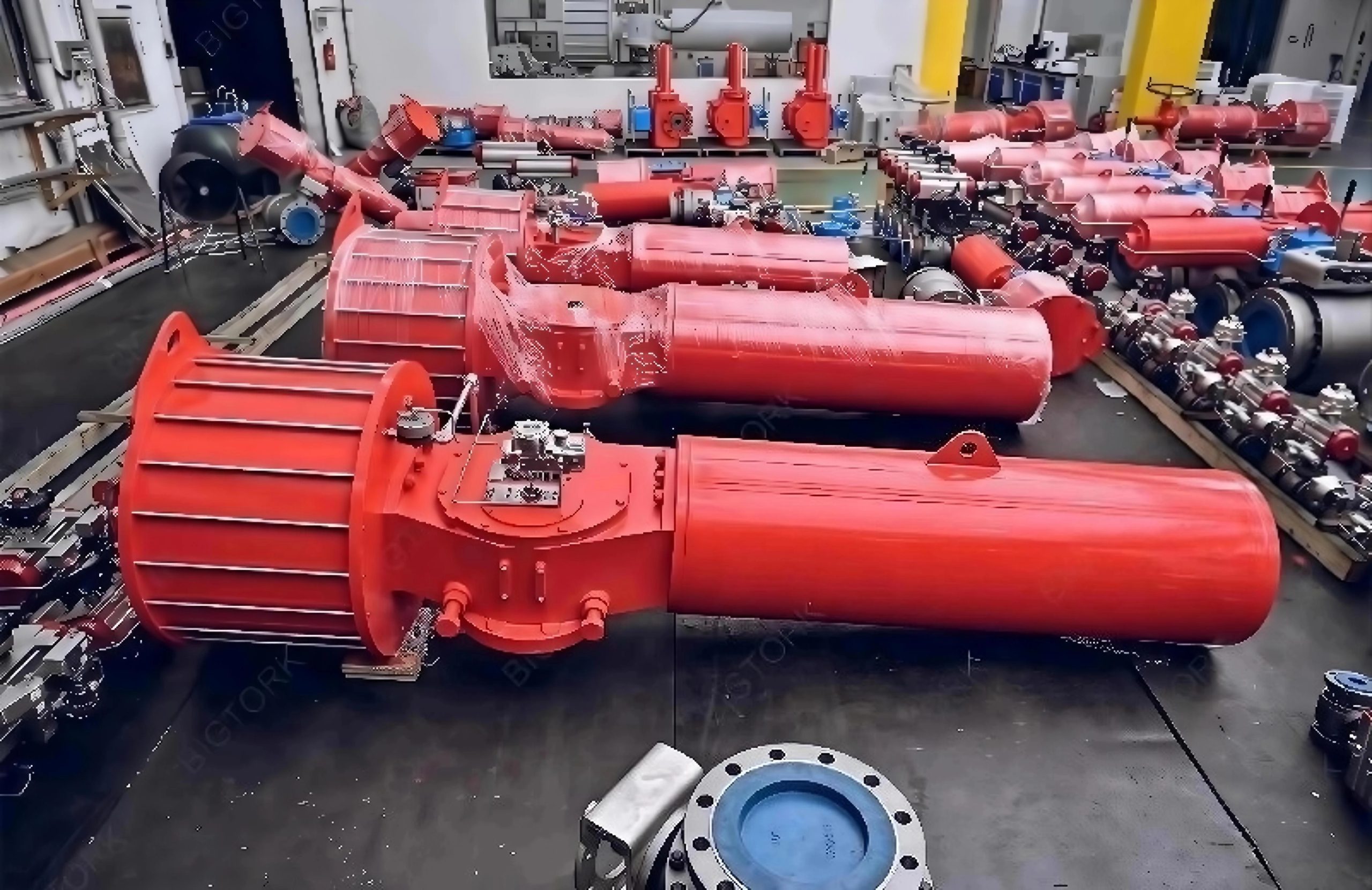

The heavy duty rotary actuator are available as pneumatic or hydraulic scotch yoke actuators for 90 degree angular valves, dampers or any device.BG series is accompanied by a complete sets of accessories modular, involving side-mounted handwheel, jackscrew & hydraulic overrides, filter/regulater/gauge, limit switches, solenoids valve and positioners, etc. The Heavy duty rotary actuator used in various industries like chemical, refining, pipeline, pharmaceutical, water processing, offshore, etc.
二．Product Features
1. Modular design facilitates on-site configuration, maintenance, and inventory management.
2. The safety design ensures safe operation with a fully enclosed spring module.
3. The machining accuracy is guaranteed, as the housing is processed and formed in a single pass by a CNC machining center.
4. Excellent surface corrosion resistance is achieved through hard chrome plating on the cylinder and piston rod, enhancing corrosion resistance and service life.
5. Efficient and durable, the design features low friction and self-lubricating components for dynamic transmission and sealing.
6. The rated torque output range spans from 100Nm to over 500,000Nm.
7. Wide temperature range coverage includes ultra-low temperature (-60°C), low temperature (-40°C), standard type (-20°C), and high temperature (+150°C).
8. Optional manual operating devices are available, including screw, bevel gear, and hydraulic options (side-mounted handwheel, bevel gear manual override, and hydraulic manual override).
三．Technical data
| Technical Parameter Category | Specific Parameters |
|---|---|
| Actuator Type | Pneumatic Scotch Yoke Actuator, Hydraulic Scotch Yoke Actuator |
| Torque Range | 100 Nm – 500,000 Nm (covers various models and pressure configurations) |
| Pressure Rating | – Pneumatic: 0.4 – 1.0 MPa (gauge pressure)
– Hydraulic: Up to 21 MPa (gauge pressure, depending on model) |
| Stroke Angle | 90° (for quarter-turn valves, dampers, and similar devices) |
| Temperature Range | – Ultra-low temperature: -60°C
– Low temperature: -40°C – Standard: -20°C – High temperature: +150°C |
| Material of Key Components | – Housing: Processed by CNC machining center in one pass (aluminum alloy, carbon steel, stainless steel optional)
– Cylinder & Piston Rod: Hard chrome plated for corrosion resistance – Seals: NBR, FKM/Viton, EPDM (selected based on temperature and media compatibility) – Internal Parts: Hardened steel, stainless steel, self-lubricating engineering plastics |
| Modular Accessories | – Manual Operation: Side-mounted handwheel, jackscrew, bevel gear manual override, hydraulic manual override
– Control & Monitoring: Filter/regulator/gauge, limit switches (mechanical/inductive), solenoid valves (pneumatic/hydraulic), positioners (analog, digital, HART/Fieldbus smart positioners) – Mounting: Compliant with ISO 5211 standard mounting interface |
| Machining & Manufacturing | Housing processed in one pass by CNC machining center to ensure machining accuracy |
| Corrosion Resistance | Hard chrome plating on cylinder and piston rod enhances corrosion resistance and service life |
| Efficiency & Durability | Low friction, self-lubricating components for dynamic transmission and sealing, ensuring long-term reliable operation |
| Safety Design | Fully enclosed spring module for safe operation |
| Industry Standards & Certifications | Compliant with ISO 5211; Optional ATEX, IECEx (explosion-proof), API, ASME, NACE MR0175 (for specific industrial applications) |
