一．Product Introduction

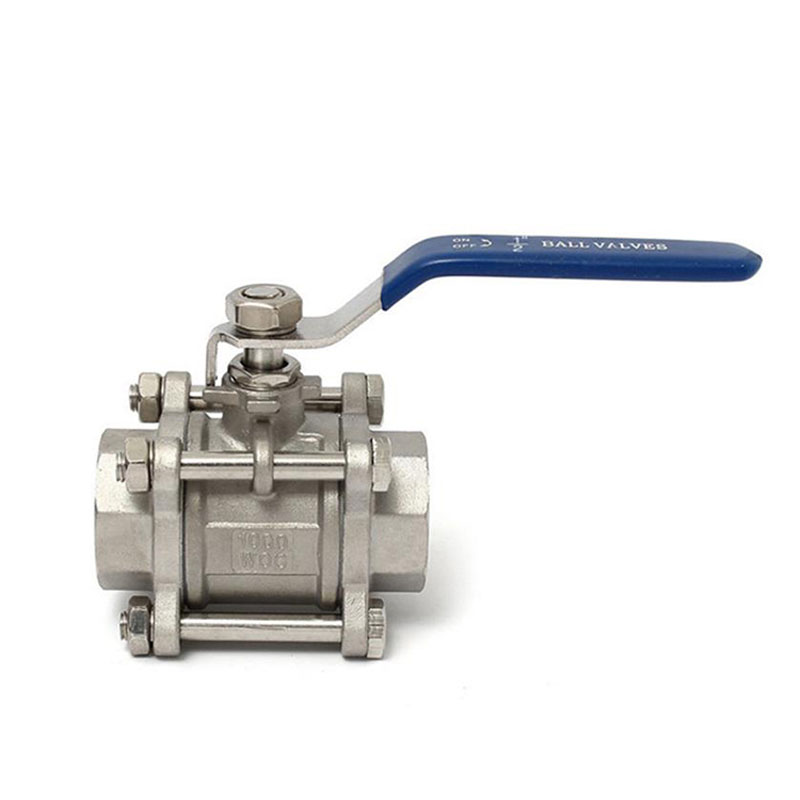

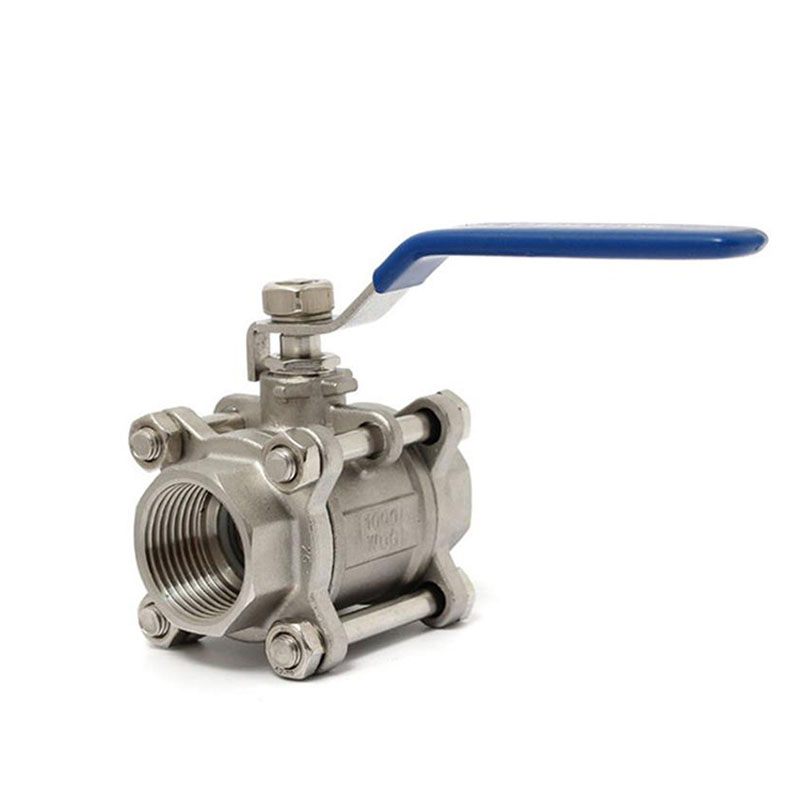

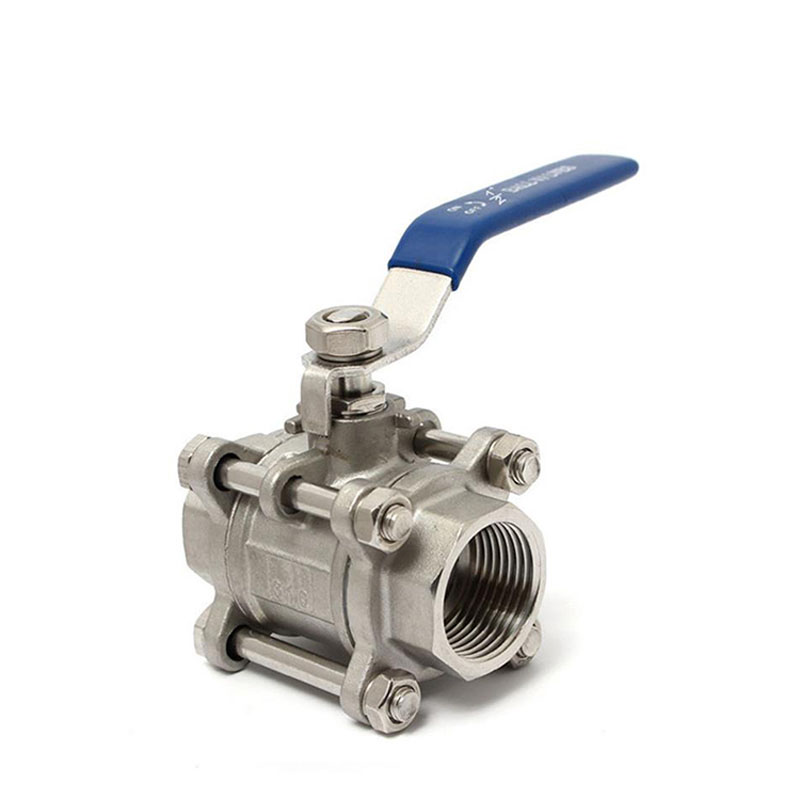

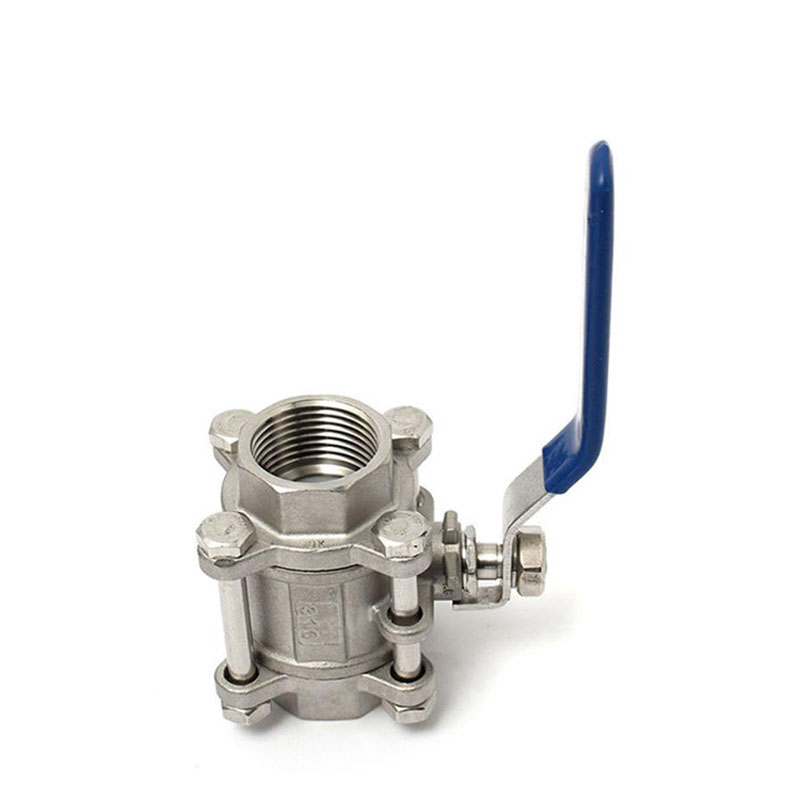

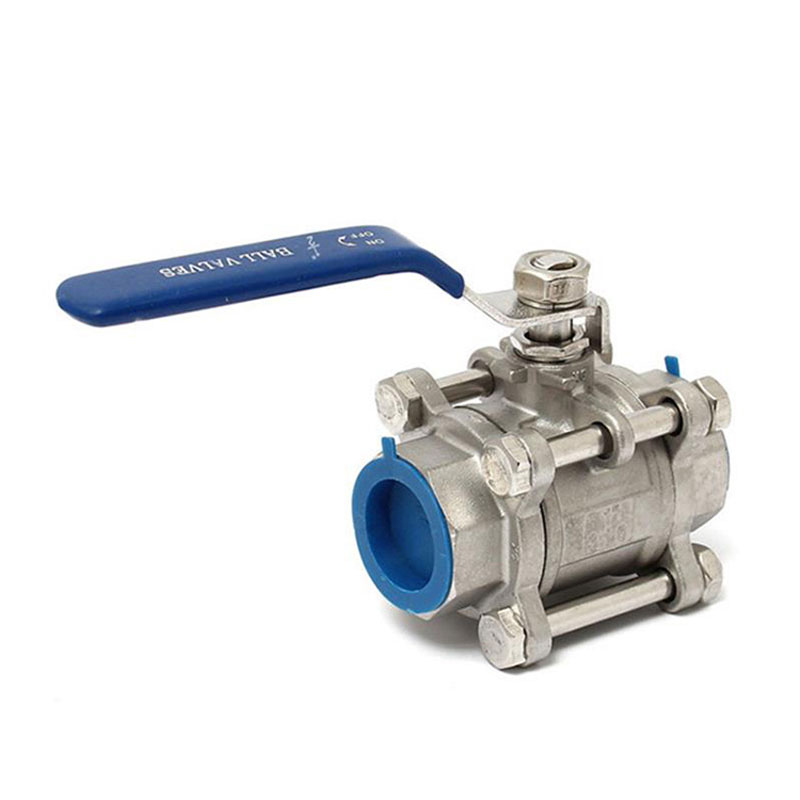

HK3T 3 Piece Female Threaded Ball Valve 3-piece design ball valve which could easy to disassemble and clean. Long service life & cost-effective. Suitable for water, oil, air, steam, etc. Manufacturing ball valve in 3-piece design/flanged/tri-clamp/welding for your projects. Consult us to get the best price!
二．Product Features
● 3-piece ball valve design features of easy to repair and long lifespan
● Threaded type 3-piece ball valves are available in G and NPT threaded
● Stainless steel 304 or 316 material for your choice
● ISO5211 mounting plate for electric actuator and pneumatic actuator
● Also available in flanged type, tri-clamp type and welded type
三．Technical data
● Size Range: DN8 to 100
● Material: Stainless Steel
● Pressure: 16 bar
● Temperature: -29 to 180℃
● Connection: Female Thread
● Suitable Medium: Water, Oil, Gas, Nitric Acid, Acetic Acid, etc

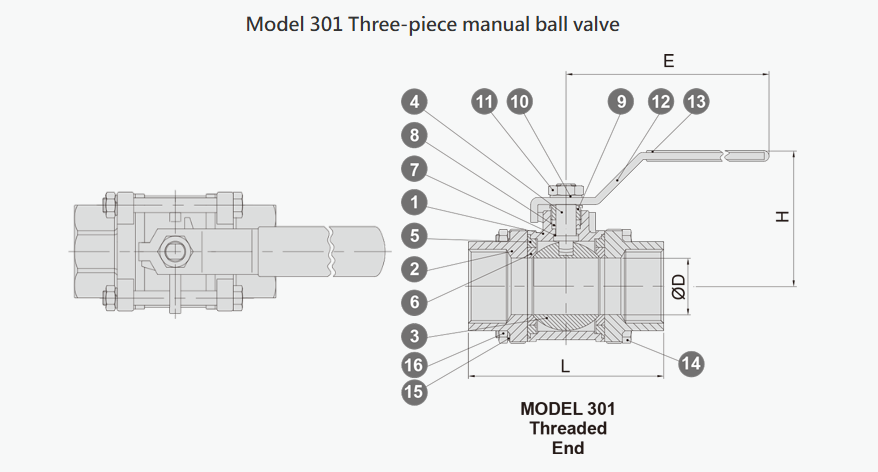

四．The main shape and connection size
| No. | Part Name | Q’TY | Material |
|---|---|---|---|
| 1 | BODY | 1 | CF8M |
| 2 | END CAP | 2 | CF8M |
| 3 | BALL | 1 | SUS316 |
| 4 | STEM | 1 | SUS316 |
| 5 | PACKING | 2 | PTFE |
| 6 | SEAT | 2 | PTFE |
| 7 | STEM SEAL | 1 | PTFE |
| 8 | STEM PACKING | 1 | PTFE |
| 9 | GLAND NUT | 1 | SUS304 |
| 10 | WASHER | 1 | SUS304 |
| 11 | STEM NUT | 1 | SUS304 |
| 12 | HANDLE | 1 | SUS304 |
| 13 | HANDLE SLEEVE | 1 | VINYL |
| 14 | BOLT | 4~6 | SUS304 |
| 15 | WASHER | 4~12 | SUS304 |
| 16 | BOLT NUT | 4~12 | SUS304 |
| Size | ØD | ØD1 | E | F | G | G1 | H | S | L | L1 | LE | LG | ØN | ØN1 | O | ØP | ØP1 | RT | ØY | ØZ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 1/4″ | 11.6 | – | 103 | 3.6 | – | – | 54 | 11 | 61 | 61 | 223 | – | 11.6 | 11.6 | 1 | 18 | 15 | 14.2 | – | – |
| 3/8″ | 12.5 | – | 103 | 2 | – | – | 54 | 11 | 61 | 61 | 223 | – | 12.5 | 14 | 1 | 18 | 17 | 17.7 | – | – |
| 1/2″ | 15 | 15 | 133 | 2 | 15.9 | 7.93 | 55 | 12 | 69 | 69 | 225 | 127 | 17 | 15.6 | 1 | 22.7 | twenty one | 21.9 | 20.6 | 17.8 |
| 3/4″ | 20 | 20 | 133 | 2.6 | 15.9 | 7.93 | 59 | 14 | 78 | 78 | 225 | 127 | 22.5 | 20.7 | 1 | 27.7 | 26.8 | 27.3 | 26.7 | 23.8 |
| 1″ | 25 | 25 | 153 | 3.2 | 15.9 | 7.93 | 70 | 14 | 84 | 84 | 244 | 152.4 | 26 | 25.8 | 1 | 33.5 | 34.4 | 34.1 | 33.4 | 30.2 |
| 11/4″ | 32 | 32 | 153 | 4.05 | 15.9 | 7.93 | 75 | 15 | 104 | 104 | 253 | 152.4 | 34.4 | 33.3 | 1 | 42.2 | 43.4 | 42.8 | 42.2 | 39 |
| 11/2″ | 38 | 38 | 191 | 3.7 | 15.9 | 7.93 | 84 | 17 | 118 | 119 | 258 | 177.8 | 41.5 | 40.5 | 1 | 48.8 | 49.8 | 48.8 | 48.3 | 45.1 |
| 2″ | 50 | 50 | 191 | 4.35 | 15.9 | 7.93 | 92 | 19 | 129 | 131 | 275 | 203.2 | 53 | 51.5 | 1 | 61 | 61 | 61.3 | 60.3 | 57.2 |
| 21/2″ | 65 | 65 | 247 | 5.75 | 15.9 | 7.93 | 128 | twenty one | 162 | 162 | 332 | 228.6 | 65.8 | 68 | 1 | 77 | 77 | 74 | 73 | 69.1 |
| 3″ | 80 | 80 | 247 | 5.25 | 15.9 | 7.93 | 137 | 25 | 182 | 182 | 351 | 254 | 81 | 81 | 1 | 91 | 91 | 90 | 88.9 | 84.9 |
| 4″ | 100 | 100 | 295 | 5.7 | 15.9 | 9.53 | 173 | 30 | 230 | 230 | 360 | 304.8 | 102 | 101 | 1 | 115 | 115 | 115.6 | 114.3 | 110.3 |
