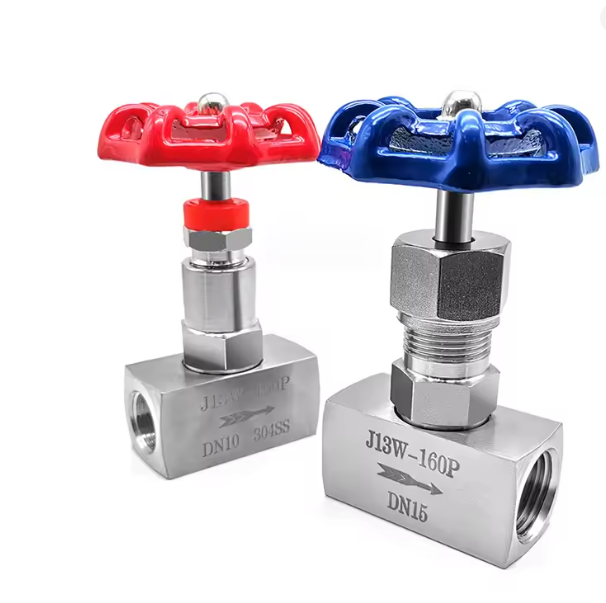

J13/J23 needle globe valve

The needle-shaped globe valve of the instrument is suitable for non-corrosive gas pipelines such as natural gas, liquefied petroleum gas, urban gas, air or nitrogen.

一.Product Introduction

The needle-shaped globe valve of the instrument is suitable for non-corrosive gas pipelines such as natural gas, liquefied petroleum gas, urban gas, air or nitrogen.

二.Product Features

– Suitable for non – corrosive gas pipelines.

– Applicable media include natural gas, liquefied petroleum gas, urban gas, air or nitrogen.

– Manual operation (inferred from the valve structure with a handwheel – like component for control).

– Compact and needle – shaped globe valve design.

– Likely to have precise flow control due to the needle – valve – like structure.

三.Technical data

Nominal pressure 2.5 4.0 6.4 16 25 32
Shell test pressure(MPa) 3.75 6.0 9.6 24 37.5 48
High pressure sealing test pressure(MPa) 2.75 4.4 7.04 17.6 27.5 35.2
Low pressure air sealing test pressure(MPa) 0.5~0.7
Applicable media Water, steam, oil(C、I) Nitric acid(P) Acetic acid(R)
Applicable temperature(℃) C≤425、I≤560 ≤200

 四.The main shape and connection size

 1.6MPa main shape and connection size

Size DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400
L mm 130 150 160 180 200 230 290 310 350 400 480 600 650 750 850 950
H mm 200 243 253 280 312 321 325 355 415 460 510 700 975 1115 1250 1380
W mm 120 140 160 160 200 200 240 240 280 320 360 560 600 700 800 900

2.5MPa main shape and connection size

Size DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400
L mm 130 150 160 180 200 230 290 310 350 400 480 600 650 750 850 950
H mm 200 243 253 280 312 321 325 355 415 460 510 700 975 1115 1250 1380
W mm 120 140 160 160 200 200 240 240 280 320 360 560 600 700 800 900

4.0MPa main shape and connection size

Size DN 15 20 25 32 40 50 65 80 100 125 150 200 250 300 350 400
L mm 130 150 160 180 200 230 290 310 350 400 480 600 650 750 850 950
H mm 200 243 253 280 312 321 325 355 415 460 510 700 975 1115 1250 1380
W mm 120 140 160 160 200 200 240 240 280 320 360 560 600 700 800 900
