â… . Product Introduction
The oxygen filter is a special filter specifically designed for oxygen piping networks. It is mainly composed of a shunt cone and a filter pipe. The thrust of the fluid (water flow) plays a key role in gas diversion, which effectively avoids the rupture of the filter caused by excessive frontal pressure. This targeted structural design makes it highly compatible with oxygen piping systems, laying a solid foundation for the safe operation of the entire pipeline.
In terms of application scope, oxygen filters are widely used in various industrial production departments. They are not only applicable to oxygen filtration but also suitable for filtering other gases such as air and nitrogen. By effectively removing impurities in the gas, these filters ensure the safe use of subsequent equipment connected to the pipeline, preventing equipment failures or damages caused by contaminated gases and further improving the stability of the production line.
â…¡. Product Features
1. Specialized for Oxygen Piping: As a filter tailored for oxygen piping networks, it matches the working characteristics of oxygen systems, ensuring safe and stable filtration performance during operation.
2. Scientific Structural Composition: The core structure of shunt cone and filter pipe works in coordination. With the gas diversion function driven by fluid thrust, it not only improves filtration efficiency but also avoids filter rupture due to frontal pressure, enhancing the overall service life of the product.
3. Flexible Model Selection: There are two main models to adapt to different pipeline layouts. The YTG type is a straight-through model, which is particularly suitable for straight pipe sections; the YTG-A type is an angular model, specially designed for pipe bends. This flexible configuration meets the installation needs of various industrial scenarios.
4. Outstanding Filtration Performance: Both YTG and YTG-A models have the advantages of large filtration area and small resistance loss. The large filtration area ensures thorough impurity removal, while the small resistance loss avoids excessive pressure drop in the pipeline, ensuring the normal gas supply efficiency.
5. Wide Industrial Applicability: It is widely used in various industrial production sectors for filtering air, nitrogen, oxygen and other gases, providing reliable protection for subsequent equipment and ensuring the smooth progress of industrial production.
â…¢. Technical Data
1. Model Specifications: YTG (Straight-through type, suitable for straight pipe sections); YTG-A (Angular type, especially suitable for pipe bends)
2. Applicable Medium: Air, nitrogen, oxygen and other industrial gases
3. Filtration Area: ≥ 0.2 m² (both models feature large filtration area; specific value varies by model, customizable)
4. Resistance Loss: ≤ 0.02 MPa (both models have small resistance loss; tested under standard working conditions, slightly affected by gas flow rate)
5. Working Pressure: 0.1 – 1.6 MPa (supports customization for high-pressure or low-pressure piping systems)
6. Working Temperature: -20 ℃ – 120 ℃ (adapts to common industrial operating temperature ranges)
7. Filter Precision: 5 μm (optional precision levels available, such as 1μm, 5μm, 10μm, etc., based on application requirements)
8. Material of Main Components: Shunt cone & filter tube – Stainless steel 316L (optional: Carbon steel / Other specialized materials) (selectable according to medium characteristics and working conditions)
9. Installation Size: Refer to the product dimension drawing (customizable for non-standard pipeline sizes)

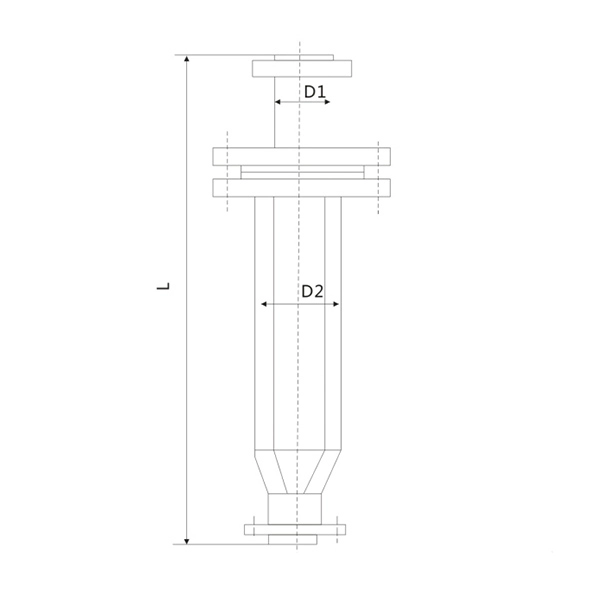

Ⅳ．The main shape and connection size
| inside nominal diameter
DN |
D1 | D2 | structure length L | |
| 1.6 | 1.6-4.0 | |||
| 40 | 45 | 89 | 450 | 460 |
| 50 | 57 | 108 | 510 | 500 |
| 65 | 73 | 133 | 600 | 600 |
| 80 | 89 | 219 | 620 | 640 |
| 100 | 108 | 219 | 720 | 770 |
| 125 | 133 | 273 | 820 | 900 |
| 150 | 159 | 325 | 920 | 1000 |
| 200 | 219 | 426 | 1200 | 1250 |
| 250 | 273 | 529 | 1650 | 1600 |
| 300 | 325 | 630 | 1700 | 1900 |
| 350 | 377 | 720 | 1800 | 2200 |
| 400 | 426 | 820 | 2100 | 2400 |
