â… ï¼ŽProduct Introduction

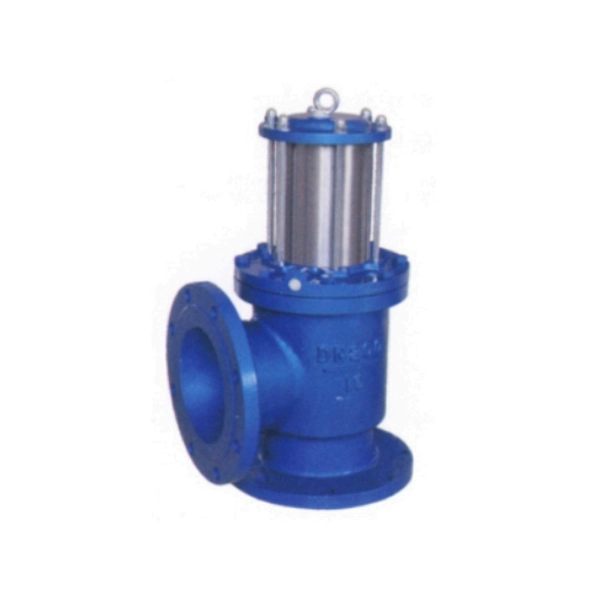

The Pneumatic And Hydraulic Angle Mud Drain Valve (Model: J744X(J44X)-1.0) is a specialized valve product designed for sediment discharge in various types of pools. It is mainly applicable to water supply companies and other enterprises that operate pools, and is installed outside the pool to effectively remove sediment accumulated at the bottom of the pool, ensuring the cleanliness of the pool water and the normal operation of related equipment.
This valve adopts pneumatic/hydraulic drive mode, with a reasonable structural design and reliable performance. It integrates the advantages of strong sealing, flexible operation, easy maintenance and long service life, and can meet the long-term and stable sediment discharge needs of different pool scenarios. The driving fluid of the valve can be gas or water, which has strong adaptability to different working environments.
Ⅱ．Product Features
-
Strong Sealing Performance: The valve adopts medium-resistant nitrile rubber seals, which can effectively prevent medium leakage during operation, ensure the tightness of the valve in the closed state, and avoid the waste of water resources or the impact of leakage on the surrounding environment.
-
Flexible Switching & High Efficiency: Driven by pneumatic/hydraulic power, the valve plate can be opened in only 20 seconds, realizing fast sediment discharge and improving the work efficiency of pool maintenance. The switching process is stable and smooth without jamming.
-
Easy Maintenance: The product has a simple and reasonable structure, with clear division of components such as valve body, hydraulic cylinder, piston, valve stem and valve flap. Daily inspection and maintenance are convenient, which can reduce the maintenance cost and downtime.
-
Long Service Life: The main components are made of high-quality materials such as HT200, 304 stainless steel and medium-resistant nitrile rubber, which have good wear resistance, corrosion resistance and durability. The service life can reach more than 5 years, and the product provides an 18-month warranty period, ensuring the user’s use experience.
-
Dual Drive Fluid Adaptability: The driving fluid can be either gas or water, allowing users to choose according to the actual working conditions and on-site equipment configuration, with strong flexibility and applicability.
-
Remote Control Capability: It can realize remote control of the switch of the sludge discharge valve by configuring a manual reversing valve, which is convenient for operators to control from a long distance, improving the operation safety and convenience.
Ⅲ．Technical Data
3.1 Product Use
This product is suitable for water supply companies and other enterprises with various types of pools. It is installed outside the pool to remove sediment accumulated in the pool, so as to maintain the water quality of the pool and the normal operation of subsequent water treatment equipment. It is widely used in water purification plants, sewage treatment plants, reservoirs, water storage tanks and other occasions.
3.2 Working Principle
The valve is composed of valve body, hydraulic cylinder, piston, valve stem and valve flap, among which the hydraulic cylinder is a fluid-driven component. It takes fluid (gas or water) as the power source, and drives the piston and valve stem to move through the pressure of the fluid, so as to realize the opening and closing of the valve flap (valve plate).
The opening time of the valve plate is only 20 seconds, which can quickly complete the sediment discharge operation. It should be noted that this valve must be equipped with a manual reversing valve to realize remote control of the switch of the sludge discharge valve. The whole working process is stable and reliable, with the characteristics of fast response and stable operation.
3.3 Technical Parameters
|
Item
|
Specification
|
|---|---|
|
Working Pressure (Valve Body)
|
1.0MPa
|
|
Hydraulic Cylinder Driving Pressure
|
0.15-0.5MPa (Switchable)
|
|
Medium
|
Tap Water
|
|
Operating Temperature
|
Normal Atmospheric Temperature
|
|
Driving Fluid
|
Gas, Water
|
|
Valve Plate Opening Time
|
20 Seconds
|
|
Service Life
|
More Than 5 Years
|
|
Warranty Period
|
18 Months
|
3.4 Component Materials
|
Component
|
Material
|
|---|---|
|
Valve Body
|
HT200
|
|
Hydraulic Cylinder
|
HT200
|
|
Cylinder Head
|
304 Stainless Steel
|
|
Valve Plate
|
HT200
|
|
Valve Stem
|
HT200
|
|
Seal
|
Medium-Resistant Nitrile Rubber
|
Ⅳ．The main shape and connection size
| Nominal through-diameter nlmm | D | D1 | L | H1 | H | ZΦd | Ban Ling take over
G |
| 80 | 195 | 160 | 135 | 114 | 460 | 4-18 | 1/2 |
| 100 | 215 | 180 | 145 | 125 | 500 | 8-18 | 1/2 |
| 150 | 280 | 240 | 185 | 155 | 630 | 8-23 | 1/2 |
| 200 | 335 | 295 | 225 | 185 | 750 | 8-23 | 1/2 |
| 250 | 390 | 350 | 250 | 245 | 835 | 12-23 | 1/2 |
| 300 | 440 | 00 | 280 | 240 | 970 | 12-23 | 1/2 |
| 350 | 500 | 460 | 340 | 275 | 1110 | 16-23 | 1/2 |
| 400 | 565 | 515 | 345 | 310 | 1220 | 16-25 | 1/2 |
