一.Product Introduction

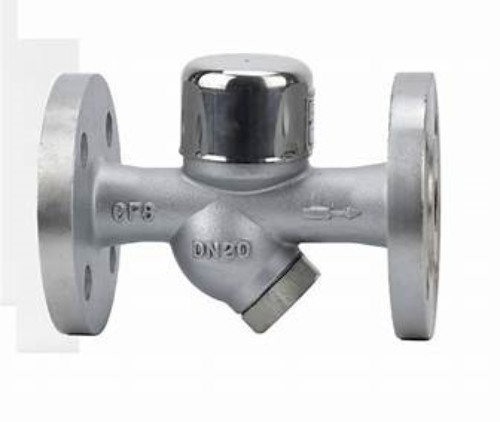

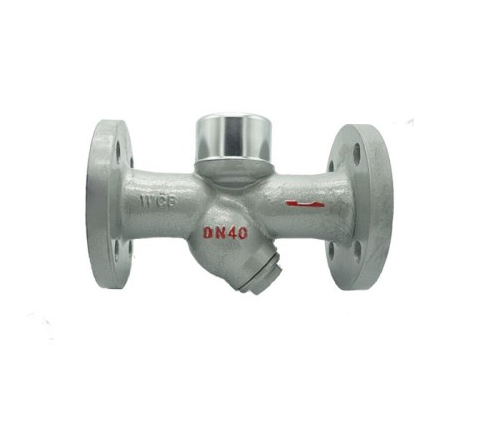

The SC49H – 16C / 25/40 Trap is a high – performance steam trap designed for efficient condensate removal in industrial systems. It can withstand a medium temperature of ≤ 300 °C and is suitable for media such as water, steam, and other relevant fluids. With a caliber range of DN15 – DN50 and a pressure rating of 1.6 – 4.0 MPa, this trap meets various pipeline requirements. The body is made of WCB material, ensuring durability and reliability. Featuring a flange connection method and designed in accordance with national standards, it provides stable and efficient operation in steam systems.
二.Product Features
1.High Temperature Resistance: Capable of operating with a medium temperature of ≤ 300 °C, making it suitable for high – temperature steam applications.
2.Versatile Media Compatibility: Can handle media like water, steam, and other applicable fluids, suitable for diverse industrial scenarios.
3.Suitable Caliber Range: Available in a caliber range of DN15 – DN50, fitting different pipeline dimension needs.
4.Reliable Pressure Rating: Operates at a pressure of 1.6 – 4.0 MPa, ensuring stable performance under industrial pressure conditions.
5.Durable Body Material: The body is made of WCB, providing excellent strength and longevity.
6.Flange Connection: Adopts a flange connection method, enabling easy and secure installation in pipeline systems.
7.Standardized Design: Designed according to national standards, guaranteeing quality and compatibility with industry norms.
三.Technical data
| SC49H-16C / 25/40 trap Material of main parts | |||||
| Part Name | material | ||||
| Valve body | WCB | ||||
| Valve seat | 35 | ||||
| Trim | 1Cr18Ni9Ti | ||||
| Trap valve SC49H performance specification | |||||
| model | Nominal pressure (MPA) |
Test pressure (mpa) water | Applicable temperature (valve seat: PTFE) |
Applicable medium | |
| strength | seal | ||||
| SC49H-16 | 1.6 | 2.40 | 1.76 | ≤425 ℃ | Water, steam, oil, etc. |
| SC49H-25 | 2.5 | 3.75 | 2.75 | ||
| SC49H-40 | 4.0 | 6.00 | 4.40 | ||
å››.The main shape and connection size
| SC49H trap size and connection size | |||||||
| model | Nominal diameter (mm) |
Size (mm) PN1.6 / 2.5 / 4.0Mpa | |||||
| L | D | D1 | D2 | b | z-φd | ||
| SC49H-16C / 25/40 | 15 | 150 | 95 | 65 | 45 | 14 | 4 * φ14 |
| 20 | 150 | 105 | 75 | 55 | 14 | 4 * φ14 | |
| 25 | 160 | 115 | 85 | 65 | 14 | 4 * φ14 | |
| 32 | 230 | 135 | 100 | 78 | 16 | 4 * φ18 | |
| 40 | 230 | 150 | 110 | 85 | 16 | 4 * φ18 | |
| 50 | 230 | 165 | 125 | 100 | 16 | 4 * φ18 | |
