一．Product Introduction

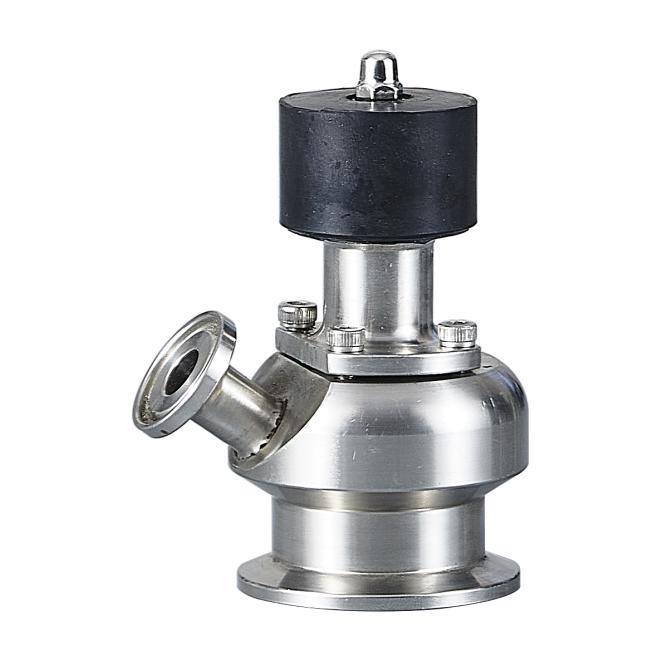

The Single-Nozzle Sampling Valve is a specialized device designed for efficient and hygienic sample collection in industries such as pharmaceutical, food and beverage, chemical, and biotechnology. It features a single sampling nozzle that allows for direct extraction of samples from pipelines, tanks, or process systems. This valve is engineered to minimize dead space and contamination, ensuring the integrity and representativeness of the sampled material. Its compact and robust design makes it suitable for various process environments where precise and clean sampling is essential for quality control and regulatory compliance.
二．Product Features
- Single-Nozzle Design: Enables direct and targeted sample extraction, reducing the complexity of the sampling process and minimizing the potential for sample dilution or contamination.
- Hygienic Construction: Manufactured from high-quality stainless steel (e.g., 316L) with smooth, polished surfaces and sanitary seals, preventing the accumulation of residues and ensuring compliance with strict hygiene standards (FDA, GMP).
- Minimal Dead Space: Optimized internal geometry eliminates areas where product residues can accumulate, ensuring accurate and representative samples and reducing the risk of cross-contamination.
- Easy Operation and Maintenance: Features a user-friendly actuation mechanism (manual or automated) and modular components, allowing for straightforward cleaning, inspection, and maintenance. It is also compatible with CIP (Clean-in-Place) and SIP (Steam-in-Place) systems.
- Versatile Compatibility: Equipped with sanitary connections (e.g., tri-clamp) that are compatible with a wide range of pipeline sizes and configurations, making it adaptable to various process setups.
- Robust Performance: Built to withstand process pressures and temperatures, ensuring reliable operation in demanding industrial environments.
三．Technical Data
| Parameter | Specification |
|---|---|
| Wetted Material | 316L Stainless Steel |
| Connection Type | Tri-Clamp (Sanitary Fitting) |
| Nominal Diameter (DN) | DN15, DN20, DN25 (typical sizes) |
| Max Operating Temperature | -10°C to 150°C (depending on seal material) |
| Max Operating Pressure | Up to 10 bar (145 psi) |
| Seal Material | PTFE, EPDM (food-grade and chemical-resistant options) |
| Actuation Type | Manual (Handwheel/Lever), Pneumatic, or Electric |
| Compliance | FDA, GMP, ASME BPE |
