一、Solar-Powered Smart Electric Butterfly Valve
Product Overview
The Solar-Powered Smart Electric Butterfly Valve is an intelligent irrigation control solution designed for modern agricultural and water management applications.
Integrating IoT control, wireless communication, remote data transmission, and automated valve control technologies, the system enables efficient, remote, and intelligent irrigation management.
With its compact design, high protection rating, high torque output, and durable construction, the valve is suitable for outdoor installation and long-term operation in agricultural environments.
The system supports remote valve opening and closing, scheduled operation, adjustable valve positioning, cloud platform connectivity, and third-party system integration. It helps reduce manual operation, improve irrigation efficiency, optimize water usage, and support automated irrigation management.
The butterfly valve features a simple and reliable structure and is suitable for both on/off control and flow regulation in low- and medium-pressure pipeline systems.
二、Key Features
1. Solar-Powered Operation
The system is powered by a solar panel and equipped with a built-in lithium battery, making it suitable for outdoor locations where conventional power supplies are unavailable or inconvenient.
2. 4G Remote Communication
Built-in 4G CAT1 communication enables long-distance remote monitoring and control without the distance limitations associated with short-range wireless communication.
3. Remote Valve Control
Users can remotely monitor and control the valve through a mobile WeChat Mini Program or computer-based management platform.
4. Adjustable Valve Opening
The valve opening position can be adjusted according to actual irrigation or flow-control requirements instead of being limited to fully open or fully closed operation.
5. Multiple Scheduling Functions
The system supports scheduled valve operation, allowing users to configure automatic opening and closing times according to irrigation plans.
6. Third-Party Platform Integration
The controller supports integration with private cloud platforms and third-party management systems, making it suitable for customized smart irrigation and IoT applications.
7. Multiple Communication and I/O Interfaces
The controller provides multiple interfaces for system expansion and external equipment connection, including:
- 1 × RS-485 interface
- Modbus-RTU communication protocol
- 2 × 4–20 mA analog input channels
- 4 × digital input / dry-contact interfaces
- 1 × digital output
8. Wide DC Input Voltage Range
The controller supports a wide DC 12–36V input voltage range, providing greater flexibility for different solar power and battery configurations.
9. High Load Driving Capacity
The controller supports high-power electric valve operation, with a rated electric valve drive capacity of:
DC 24V / 150W
Peak current can reach up to 20A.
10. Long Standby Time
In sleep mode, the controller can achieve a standby time of more than 60 days, depending on the actual battery configuration and operating conditions.
11. Electronic Torque Protection
When the valve becomes blocked or stalled and the operating current exceeds the preset threshold, the controller automatically triggers an alarm and uploads the fault information to the cloud platform.
This function helps protect the actuator and valve mechanism from excessive load.
12. Flexible Battery Configuration
Different battery capacities can be selected according to actual operating conditions, local sunlight availability, valve operating frequency, and application requirements.
13. Fast Response
The system provides fast real-time control performance:
- Control response time: less than 1 second
- Valve position signal synchronization time: less than 1 second
14. High-Precision Positioning
The system supports high-precision BeiDou positioning, helping users identify and manage field devices more efficiently.
15. Outdoor Installation
The controller is designed for convenient outdoor installation and can be mounted on either a wall or a pole.
三、Main Components

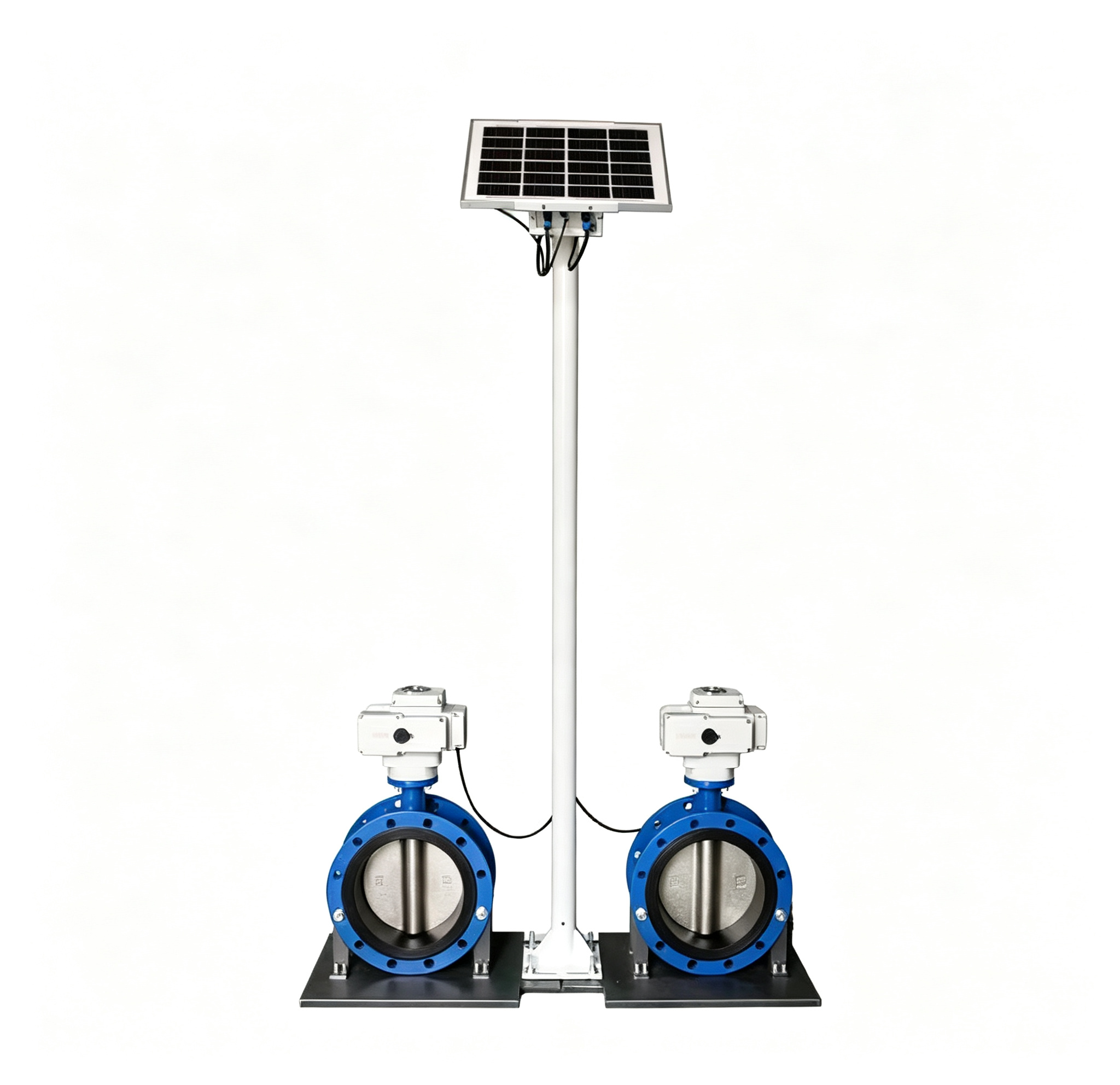

The Solar-Powered Smart Electric Butterfly Valve system mainly consists of:
- DC electric actuator
- Butterfly valve
- Vertical shaft / mounting pole
- Intelligent controller
- Solar panel
- Built-in control firmware
四、Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Solar-Powered Smart Electric Butterfly Valve |
| Controller Protection Rating | IP65 |
| Operating Voltage | DC 12–36V |
| Power Supply | Solar Panel |
| Operating Temperature | -30°C to 60°C |
| Valve Size | DN50–DN250 |
| Wireless Communication | 4G CAT1 |
| Communication Protocol | MQTT |
| Other Supported Protocols | TCP/IP, UDP, HTTP |
| Platform Integration | Private Cloud / Third-Party Platform Integration |
| RS-485 Interface | 1 |
| Analog Input | 2 × AI |
| Digital Input | 4 × DI |
| Digital Output | 1 × DO |
| Solar Input | 1 × Solar Panel Input |
| Electric Valve Drive Capacity | DC 24V / 150W |
| Peak Drive Current | Up to 20A |
| Valve Control Output | 1-channel standard output; 2-channel selectable |
| Built-in Battery | 2600mAh Lithium Battery, Standard Configuration |
| Control Response Time | < 1 Second |
| Positioning | High-Precision BeiDou Positioning |
| Recommended Mounting Height | 1.5 m |
| Standby Time | 60+ Days in Sleep Mode |
| Valve Position Control | Adjustable Opening Position |
五、Communication & Control
1、4G CAT1 Communication
The system uses 4G CAT1 wireless communication to connect field devices with the cloud management platform.
Compared with short-range wireless technologies, 4G communication is not restricted by the distance between the valve controller and the management center, provided that mobile network coverage is available.
This makes the system suitable for large agricultural areas and distributed irrigation projects.
2、MQTT Communication Protocol
The controller supports the MQTT protocol for IoT communication.
Other communication protocols may also be supported, including:
- TCP/IP
- UDP
- HTTP
This allows the device to communicate with private cloud platforms and third-party IoT systems.
3、RS-485 / Modbus-RTU
One RS-485 communication port is available and supports the Modbus-RTU protocol, enabling connection with compatible sensors, controllers, and other field equipment.
六、Smart Irrigation Management
The system is designed to support intelligent and automated irrigation management.
Through the cloud platform, users can remotely manage field valves and configure operating schedules based on irrigation requirements.
Typical control functions include:
- Remote valve opening
- Remote valve closing
- Adjustable valve opening position
- Scheduled irrigation
- Device status monitoring
- Alarm reporting
- Device grouping
- Multi-device management
- Customer permission management
- Cloud data transmission
七、Cloud Platform Management
The management system can be used to organize devices, customers, and device groups.
Each customer account can contain multiple device groups, allowing large numbers of irrigation controllers to be managed in an organized structure.
A single device can also be assigned to multiple customer groups when required.
For example, when the same device needs to be managed by two different customers or operators, the device can be added to the corresponding groups of both customer accounts.
The platform also allows administrators to configure different user permissions, such as:
- Read-only access
- Device operation permissions
- Alarm or notification permissions
- Device management permissions
八、Mobile Control
The system supports mobile operation through the “Wireless Valve Control” WeChat Mini Program.
Users can access their device management interface using an authorized account and password supplied by the distributor.
After logging in, users can:
- View device groups.
- View the device list.
- Check device online status.
- Select an online valve controller.
- Enter the device control interface.
- Perform available valve operations according to the on-screen instructions.
九、PC Management
A computer-based management interface is also available.
Users can log in using their:
- Account
- Password
- Verification code
The PC interface can be used as a supplementary management tool for device and customer management.
十、User Roles
1、Administrator
The administrator interface is primarily used to manage:
- Devices
- Customers
- Customer groups
- Device assignments
- User permissions
- Notifications
Administrators can assign individual devices to different customer groups and configure customer access permissions according to project requirements.
2、Customer
The customer interface is primarily designed for mobile operation, while the PC version serves as an additional management tool.
After logging in successfully, customers can view the device groups and devices associated with their accounts and perform permitted operations on devices within each group.
十一、System Advantages
The Solar-Powered Smart Electric Butterfly Valve combines solar power, 4G communication, intelligent control, and cloud-based management in a single irrigation control solution.
Its main advantages include:
- No conventional grid power required
- Suitable for remote agricultural areas
- Long-distance wireless communication
- Remote mobile and PC control
- Automatic scheduled irrigation
- Adjustable valve opening
- Low-power operation
- Long standby time
- Electronic overload and torque protection
- Multiple I/O interfaces
- RS-485 / Modbus-RTU support
- Cloud platform connectivity
- Third-party platform integration
- High-precision location management
- Suitable for centralized management of multiple valves
十二、Typical Applications
The system is suitable for intelligent water-control applications such as:
- Agricultural irrigation systems
- Smart farms
- Farmland irrigation
- Orchard irrigation
- Greenhouse irrigation
- Remote irrigation networks
- Water-saving irrigation projects
- Distributed pipeline control systems
- Automated water distribution systems
十三、Application Concept
In a typical irrigation system, the solar-powered controller is installed together with the electric butterfly valve in the field.
The solar panel provides power to the controller and battery system, while the 4G communication module connects the field device to the cloud platform.
Users can remotely monitor and operate valves through a mobile device or computer, allowing irrigation systems to be managed without requiring personnel to manually operate each valve in the field.
This helps create a more automated, efficient, remotely managed, and water-saving irrigation system.
