一．Product Introduction

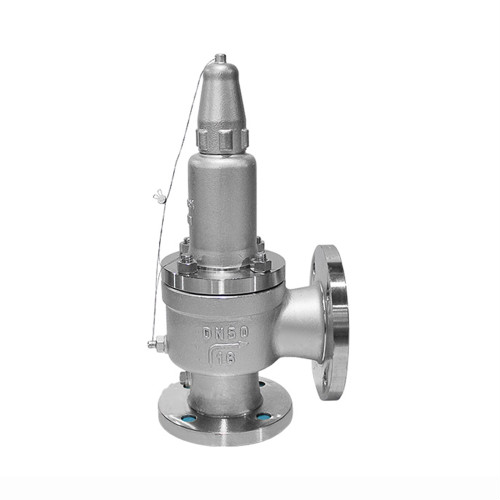

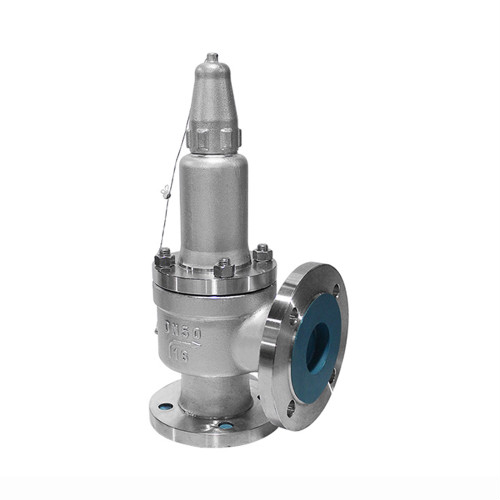

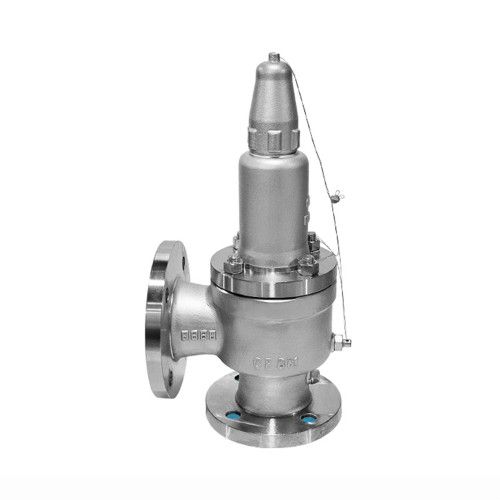

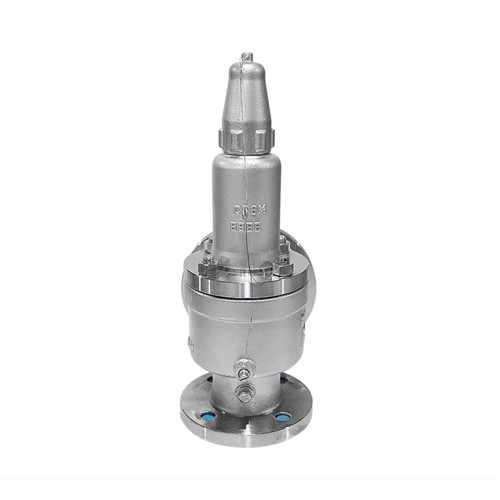

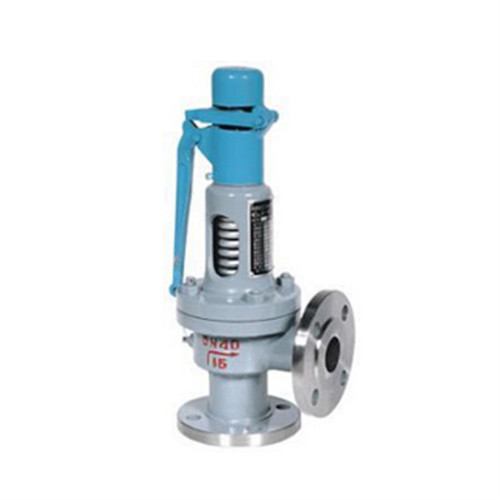

WYVALVE Flange end Lever Type Spring Loaded Safety Relief Valve is available with a screwed cap, packed lever, plain lever and gag. Unless otherwise specified, the valve is shipped with a screwed cap. Mainly used in boilers, pressure vessels and pipelines, control pressure does not exceed the specified value, plays an important role in protecting personal safety and equipment operation.
二．Product Features
- It Can be used in all kind of Gas and Liquid services
- Suitable for high pressure and temperature services
- Low cost compares to other types
- Different types of Safety Relief Valves used in process piping
- Safety relief valves are classified as conventional type, pilot operated, balanced bellows type, power actuated, and temperature actuated type.
三．Technical data
| Model | Safety Relief Valve |
| Size Range | 3/4″ to 16″ |
| Pressure Range | 1.6 to 10MPa |
| Material | WCB, Stainless Steel |

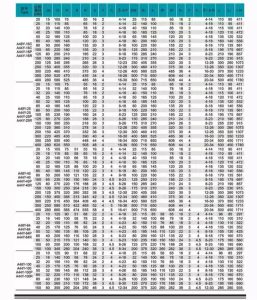

四．The main shape and connection size
