一．Product Introduction

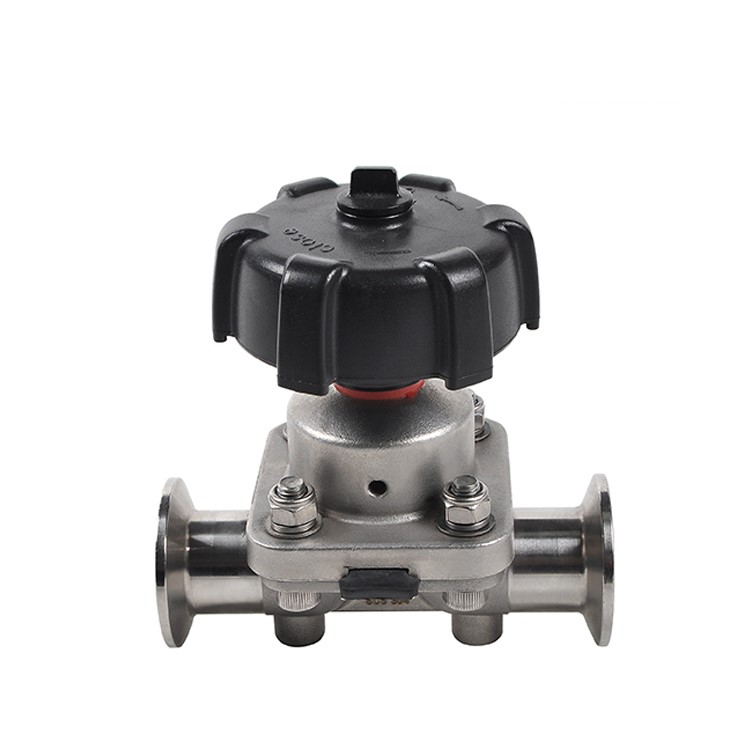

The sanitary diaphragm valve is remotely operated by the driving device or manually operated by the handle. The driving device has three standards: normally closed type, normally open type and pneumatic type. It has the advantages of simple structure, beautiful appearance, quick disassembly and assembly, flexible operation, low fluid resistance, safe and reliable use. It is suitable for the control of water, gas, oil and corrosive media in the chemical, petroleum, metallurgical, water heating, food, pharmaceutical and other industries.
The structural design of the diaphragm valve is particularly suitable for ultra-pure media or heavily polluted, very viscous liquids, gases, corrosive or inert media. When combined with control equipment, the diaphragm valve can replace other traditional control systems, especially suitable for solid and easily polluted inert media
二．Product Features
- A few product connectors, good overall hardness performance
- Fast interception, easy to open, flexible and precise
- Diaphragm replaceable, low maintenance costs
- The overall structure of the valve body is relatively small, easy to install and maintain
- A variety of surface polishing techniques, no dead ends, no residue in the normal position
三．Technical data
| Valve Material |
Body: cast iron, ductile iron, carbon steel, 316L, 304, WCB Bonnet: cast iron, ductile iron, carbon steel, 316L, 304, WCB Lining: rubber Diaphragm: rubber Disc: cast iron Stem: carbon steel, 316L, 304, WCB Handwheel: cast iron |
| Connection Type | Tri Clamp, Weld, Flange Connection |
| Size | 1/2″ to 4″ (1/2″, 3/4″, 1”, 1 1/2″, 2″, 2 1/2″, 3″, 4″) |
| Diameter Nominal | DN15 to DN100 (DN15, DN20, DN25, DN40, DN50, DN65, DN80, DN100) |
| Maximum working temperature | 150 ° C |
| Medium | EPDM-steam, alcohol, oil, fuel, steam, neutral gas or liquid, organic solvent, acid-based solution, etc. |
