一．Product Introduction
WYVALVEÂ Full Open Thermal Safety Valve is used for power plant boilers, pressure containers, pressure and temperature reducing devices and other facilities. And service as overpressure protection device.
1.Standard:GB,DIN,ANSI are available.
2.Medium: air,water,or equivalences
3.Main material:Cast steel,carbon steel and stainless steel ect.
二．Product Features
- It Can be used in all kind of Gas and Liquid services
- Suitable for high pressure and temperature services
- Low cost compares to other types
- Different types of Safety Relief Valves used in process piping
- Safety relief valves are classified as conventional type, pilot operated, balanced bellows type, power actuated, and temperature actuated type.
三．Technical data
| Model | Safety Relief Valve |
| Size Range | 1/2 – 4 Inch |
| Pressure Range | PN16 – PN260 |
| Material | Stainless Steel |
|
Structure
|
Open Type with Lever
|
|
Application
|
Steam
|
|
Working Pressure
|
CLASS150 – 1500,PN16 – PN260 |
|
Connection
|
Thread
|

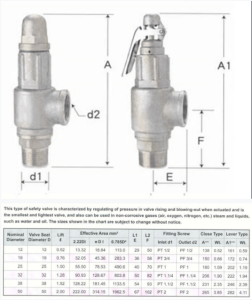

四．The main shape and connection size
Â
Â
