一.Product Introduction

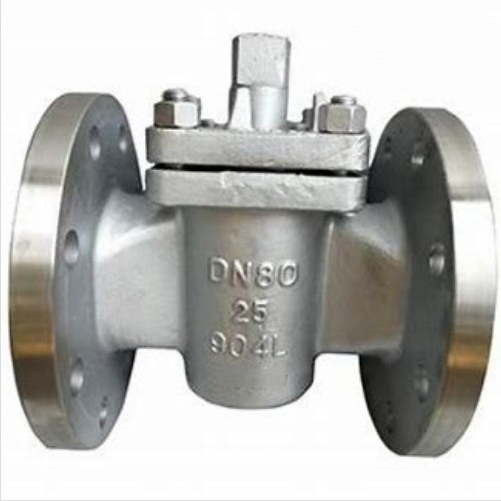

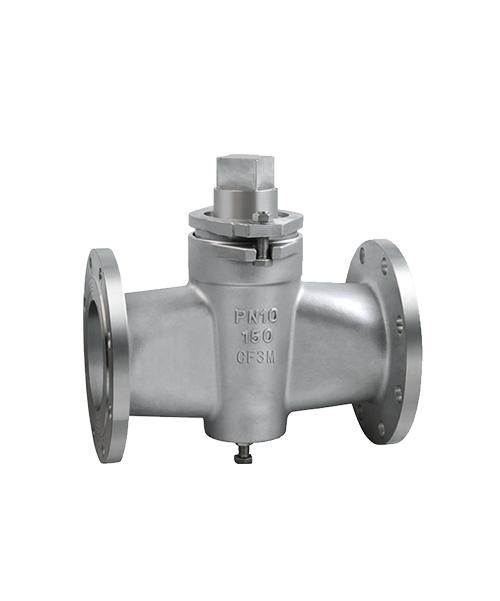

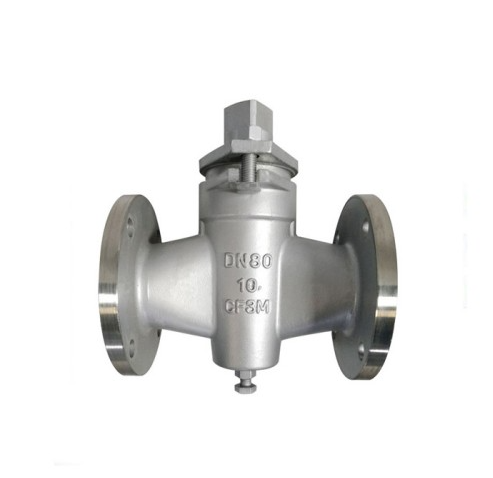

The X43W – 10P GB Stainless Steel Plug Valve is a high – performance valve engineered for diverse industrial applications. Constructed from stainless steel, it boasts excellent corrosion resistance and durability. It can operate within a medium temperature range of – 29 – 200 °C and handle various media including water, steam, oil, and nitric acid. With a caliber range of DN50 – DN400 and a pressure rating of 1.0 – 1.6 MPa, this valve meets the demands of different pipeline systems. Featuring a flange connection method and designed in accordance with national standards, it ensures reliable and secure fluid control in numerous industrial scenarios.
二.Product Features
1.Wide Temperature Adaptability: Capable of functioning in a medium temperature range from -29 °C to 200 °C, suitable for various temperature – related industrial processes.
2.Versatile Media Compatibility: Can handle multiple media such as water, steam, oil, and nitric acid, making it applicable in different industrial fields.
3.Appropriate Caliber Range: Available in a caliber range of DN50 – DN400, fitting various pipeline dimension requirements.
4.Reliable Pressure Rating: Operates at a pressure of 1.0 – 1.6 MPa, ensuring stable performance under standard industrial pressure conditions.
5.Durable Material: Made of stainless steel, providing excellent corrosion resistance and a long service life.
6.Standardized Design: Designed according to national standards, guaranteeing quality and compatibility with industry norms.
7.Flange Connection: Adopts a flange connection method, enabling easy and secure installation in pipeline
三.Technical data
| X43W-10P GB stainless steel plug valve Material of main parts | |||||
| Part Name | material | ||||
| Valve body | CF8 / CF3 / CF8M / CF3M | ||||
| Stopcock | CF8 / CF3 / CF8M / CF3M | ||||
| cap | CF8 / CF3 / CF8M / CF3M | ||||
| seal | Flexible graphite | ||||
| X43W-10P GB stainless steel plug valve Performance standard | |||||
| model | Nominal pressure (MPA) |
Test pressure (mpa) water | proper temperature | Applicable medium | |
| strength | seal | ||||
| X43W-10P | 1.0 | 1.50 | 1.10 | ≤200 ℃ | Gas, oil, nitric acid |
å››.The main shape and connection size
| X43W-10P GB stainless steel plug valve dimensions and connection dimensions | |||||||
| model | Nominal diameter (mm) |
Size (mm) | |||||
| L | D | D1 | D2 | bf | z-φd | ||
| 15 | 80 | 95 | 65 | 45 | 12-2 | 4 * φ14 | |
| 20 | 90 | 105 | 75 | 55 | 14-2 | 4 * φ14 | |
| 25 | 110 | 115 | 85 | 65 | 14-2 | 4 * φ14 | |
| X43W-10 | 32 | 130 | 135 | 100 | 78 | 16-2 | 4 * φ18 |
| 40 | 150 | 145 | 110 | 85 | 18-3 | 4 * φ18 | |
| 50 | 170 | 160 | 125 | 100 | 18-3 | 4 * φ18 | |
| 65 | 220 | 180 | 145 | 120 | 20-3 | 4 * φ18 | |
| 80 | 250 | 195 | 160 | 135 | 20-3 | 4 * φ18 | |
| 100 | 300 | 215 | 180 | 155 | 22-3 | 8 * φ18 | |
| 125 | 350 | 245 | 210 | 185 | 24-3 | 8 * φ18 | |
| 150 | 400 | 280 | 240 | 210 | 24-3 | 8 * φ23 | |
| 200 | 460 | 335 | 295 | 265 | 24-3 | 8 * φ23 | |
| 250 | 530 | 390 | 350 | 320 | 26-3 | 12 * φ23 | |
| 300 | 580 | 440 | 400 | 368 | 28-4 | 12 * φ23 | |
