一.Product Introduction

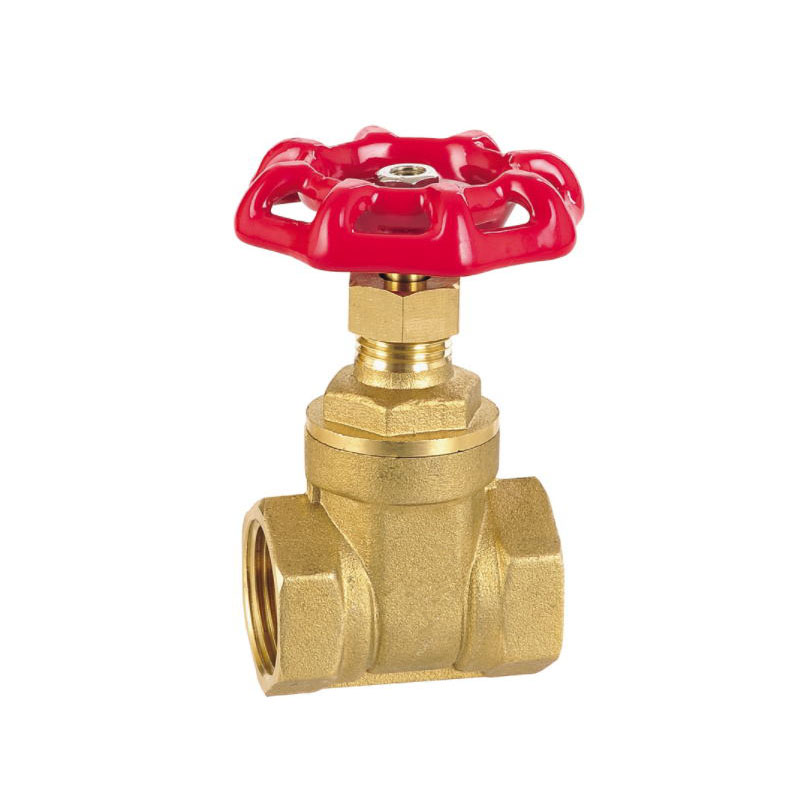

The Z15W-16T BRASS GATE VALVEShas a brass body, NBR O-ring upper seal, and HT150 cast iron handwheel, suitable for water and non-corrosive liquids at -20°C to 110°C with PN1.6MPa and ISO 228 threads.
二.Product Features
1.Durable Construction: Features a brass valve body for long – lasting use and resistance to corrosion.
2.Reliable Sealing: Utilizes an NBR O – ring upper seal to ensure excellent sealing performance and prevent leakage.
3.Easy Operation: Equipped with an HT150 cast iron handwheel, enabling smooth and effortless operation.
4.Versatile Application: Suitable for a range of media including water and non – corrosive liquids, and can work in a temperature range of – 20°C to 110°C with a nominal pressure up to 1.6MPa
5.Standard Complianc: Threads conform to the ISO 228 standard, ensuring compatibility and ease of installation with other standard components.
三.Technical data
| Valvebody | brass |
| Upper seal | O-ring(NBR) |
| Handwheel | cast iron HT150 |
| Nominal pressure | PN≤1.6MPa |
| Working medium | water, non-corrosive liquid |
| Working temperature | -20°C≤T≤110°C |
| Thread standard | complies with ISO 228 standard |
