一．Product Introduction

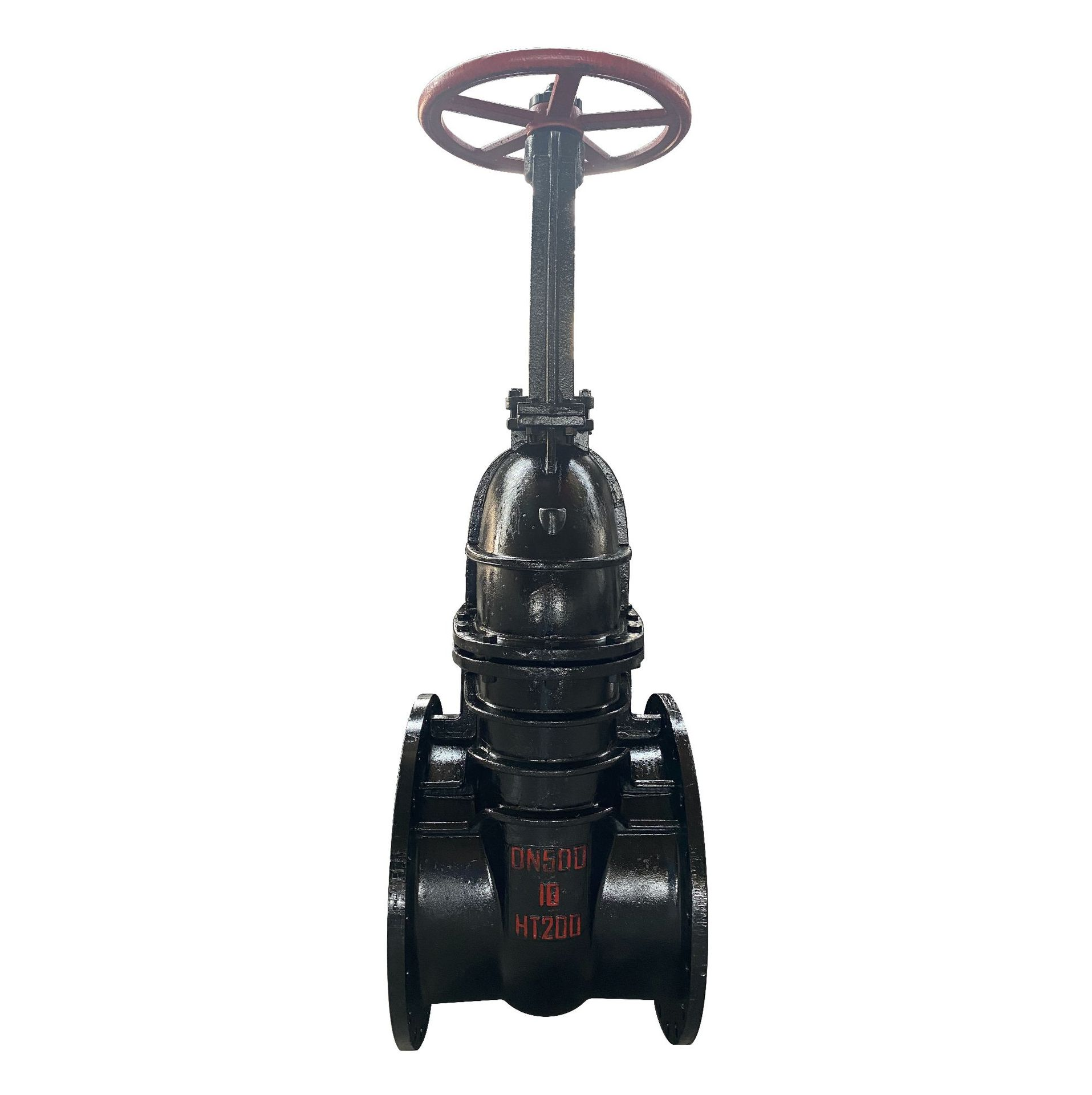

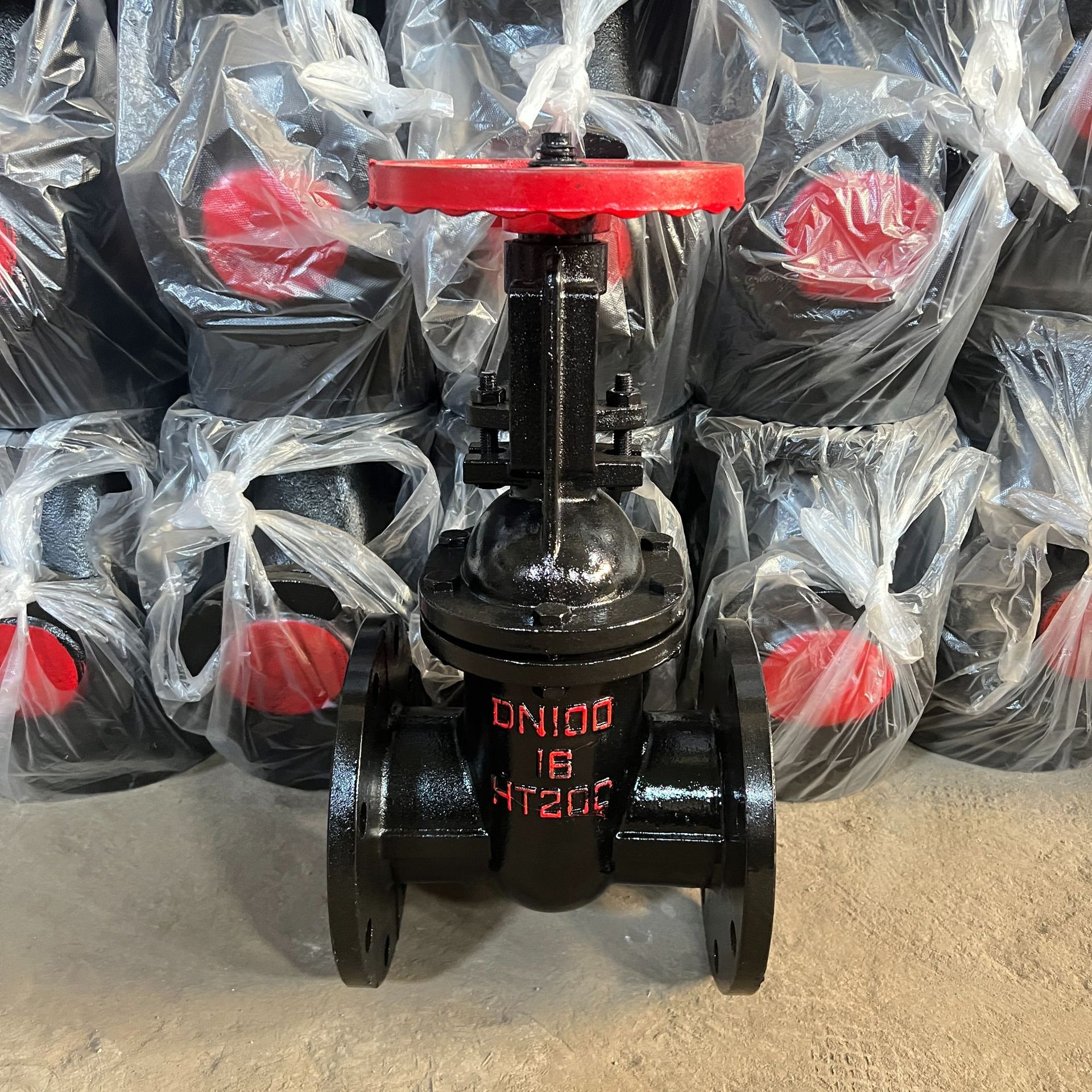

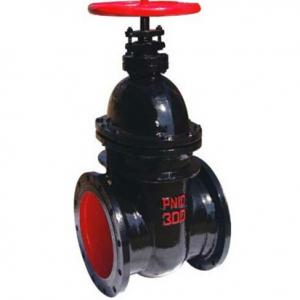

Z45T Non-rising stem cast iron gate valve generally used to connect or disconnect the piping in the media, it shut down parts (gate)in the vertical plane centerline of the valve channel to give a lift moving. Z45T Non-rising stem cast iron gate valve can not be used as a regulating the flow of media.
二.Product Features
- Suitable for water, oil, steam and non
- corrosive media.
- Working temperature up to ≤200℃.
- Nominal pressure PN10. – Flanged connection.
- 5.Rubber sealing.
- Main parts (body, bonnet, handle) made of cast iron GG18;disc of cast iron GG2≥18; stem of carbon steel + zinc; seal of brass.
三.Technical data
| Model | Z45T Non – rising stem cast iron gate valve |
| Suitable medium | Water, oil, steam and non – corrosive media |
| Working temperature | ≤200℃ |
| Nominal pressure | PN10 |
| Connection | Flanged |
| Sealing | Rubber |
| Main Parts material – Body, bonnet, and handle | Cast iron GG18 |
| Main Parts material – Disc | Cast iron GG2≥18 |
| Main Parts material – Stem | Carbon steel + zinc |
| Main Parts material – Seal | Brass |
