一．Product Introduction

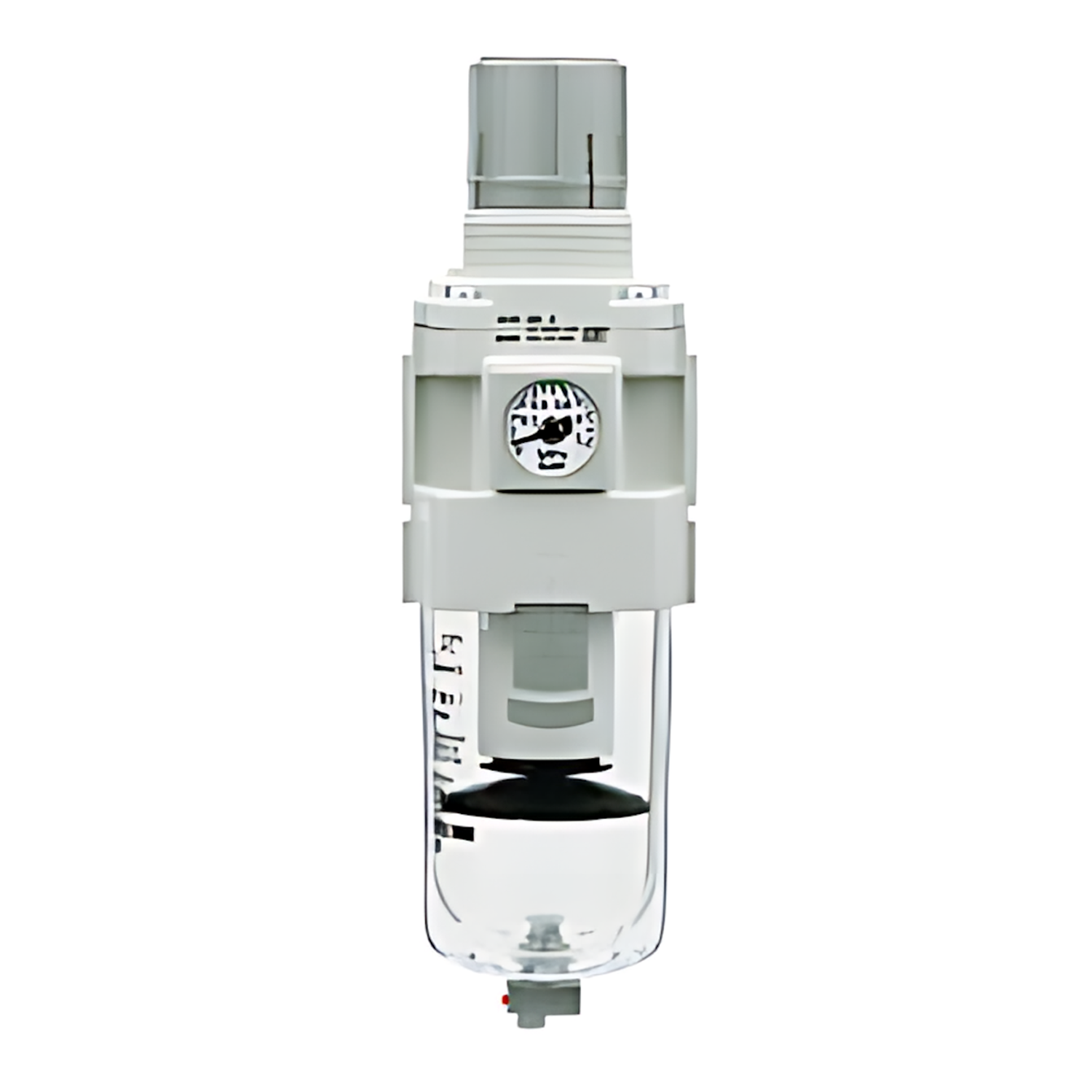

This is a WYE modular-style F.R.L. (Filter Regulator) combination unit (a core component in pneumatic systems), mainly used to purify compressed air, filter impurities, and stabilize air pressure for downstream pneumatic equipment (such as valves, actuators). It integrates air filtration and pressure regulation functions, suitable for scenarios requiring clean, stable air supply (e.g., industrial automation, mechanical equipment).
二．Product Features
- All-round Protection Design
Adopts a polycarbonate transparent bowl guard (instead of a traditional window structure), covering the entire internal bowl. This enhances environmental resistance, avoids direct adhesion of corrosive chemicals/oil to the bowl, and reduces the risk of bowl breakage.
- 360° Visibility
The transparent bowl guard allows observation of the drain status inside the filter bowl and residual oil (if matched with a lubricator) from any angle, making maintenance more convenient.
- No Rusting Risk
The bowl guard structure ensures no rusting issues, improving the unit’s service life.
- Panel Mountable
Equipped with a set nut, supporting panel installation for flexible layout in pneumatic systems.
三．Technical Data
| Item | Specifications |
|---|---|
| Regulator Unit Combination | Filter Regulator |
| Connection Dia. | M5 |
| Filter, Filtration Level | 5μm |
| Compressed Air Quality | General Dry Air |
| Max. Operating Pressure | 1 MPa |
| Case Material | [Plastic] Polycarbonate Case |
| Case Guard | No |
| Exhaust Structure | Relief type |
| Flow Direction | [Standard Flow (Left to Right)] Flow Direction |
| Condensate Drain | [Manual] Manual |
| Pressure Gauge | No (No Pressure Port Plug) |
| Size of Body | 10 |
| Set Pressure | 0.05 to 0.7 MPa |
| Drain Outlet | With drain cock |
| Pressure Unit | Unit used on nameplate and pressure gauge: MPa |
| Made to order specifications | None |
| Accessories | With set nut (for panel mount) |

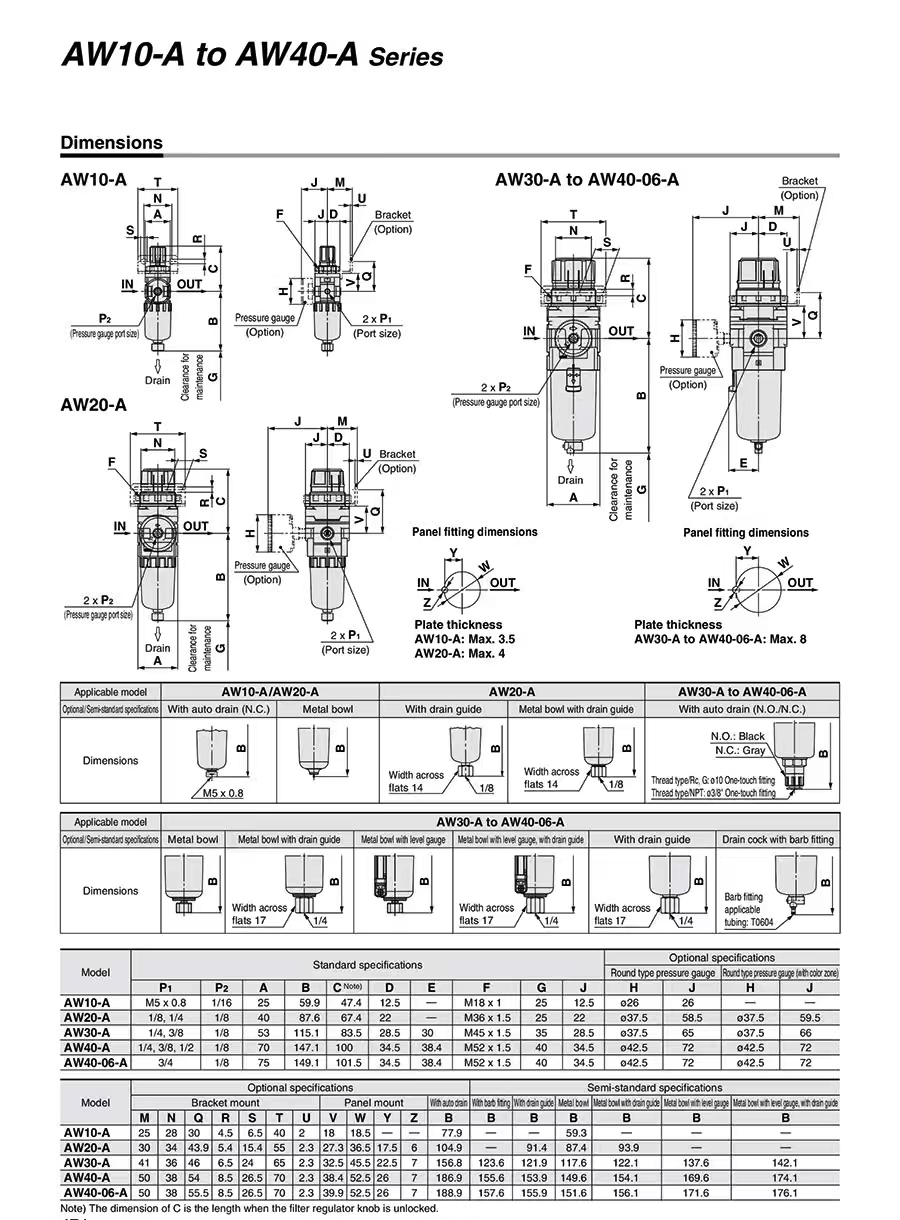

四．The main shape and connection size
