Smart Pneumatic Valve Positioner: Self-Calibration, Signal Feedback & Multi-Valve Compatibility Guide

A pneumatic valve positioner is a core control accessory for pneumatic control valves, designed to convert electrical or pneumatic control signals into precise mechanical displacement to regulate valve stem position. It acts as a "bridge" between the control system (e.g., DCS, PLC) and the pneumatic actuator, ensuring the valve responds accurately to control commands. Widely used in oil & gas, petrochemical, power generation, water treatment, and industrial automation projects (e.g., China Railway construction projects), it enhances control precision, stability, and reliability of the valve system, critical for process parameter regulation (pressure, flow, temperature, level).

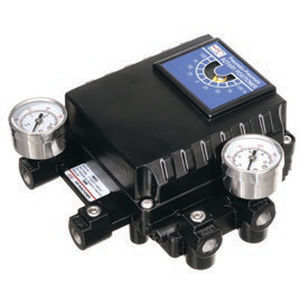

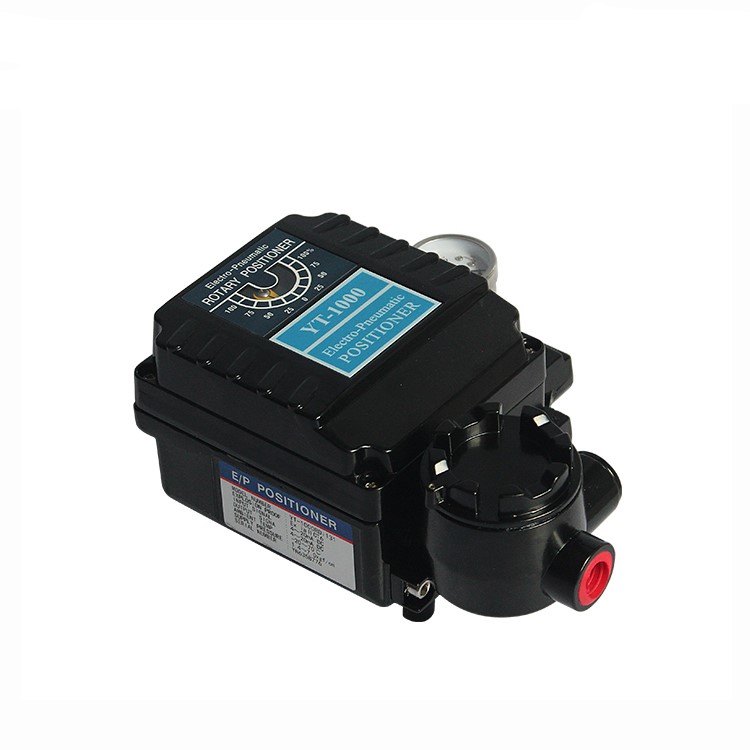

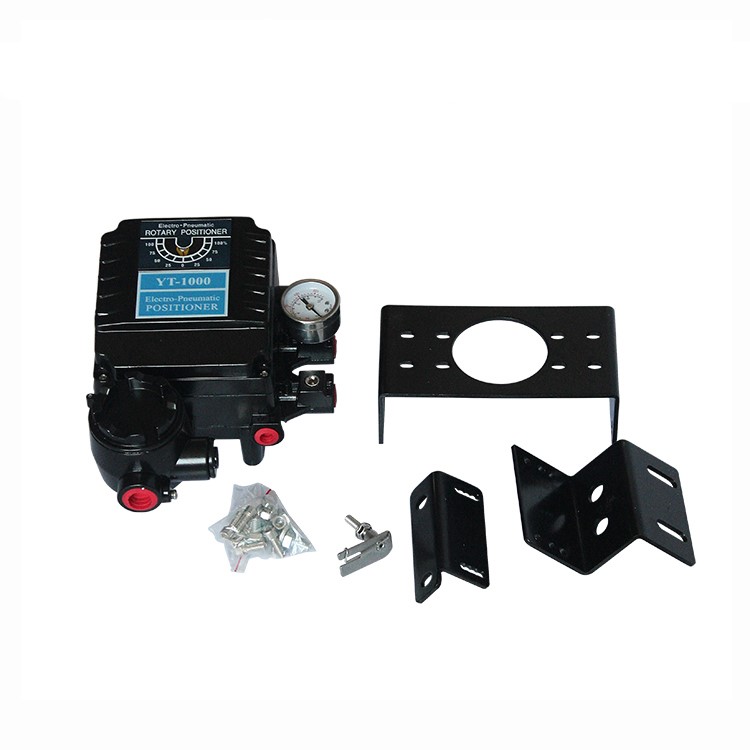

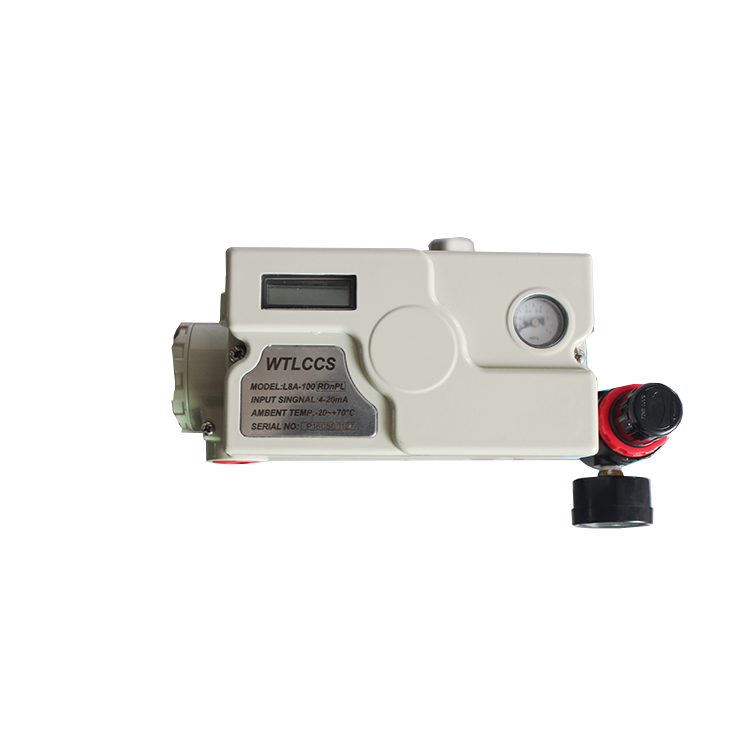

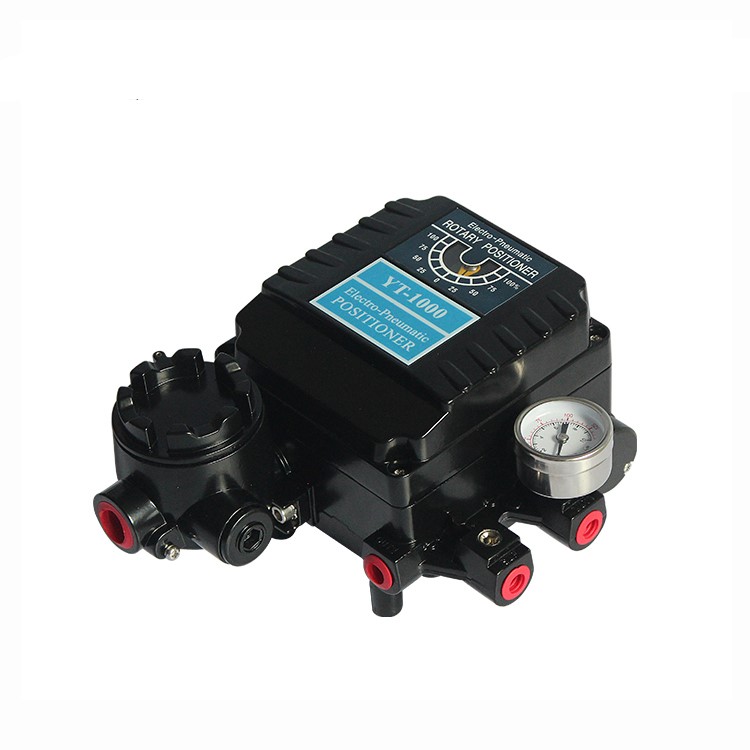

I. Product Introduction

The pneumatic valve positioner is a core control accessory for pneumatic control valves. Designed to convert electrical or pneumatic control signals into precise mechanical displacement, it regulates the position of the valve stem. Acting as a “bridge” between control systems (e.g., DCS, PLC) and pneumatic actuators, it ensures that valves respond accurately to control commands.

Widely used in oil and gas, petrochemical, power generation, water treatment, and industrial automation projects (e.g., China Railway construction projects), the pneumatic valve positioner enhances the control accuracy, stability, and reliability of valve systems, which is critical for the regulation of process parameters (pressure, flow rate, temperature, liquid level).

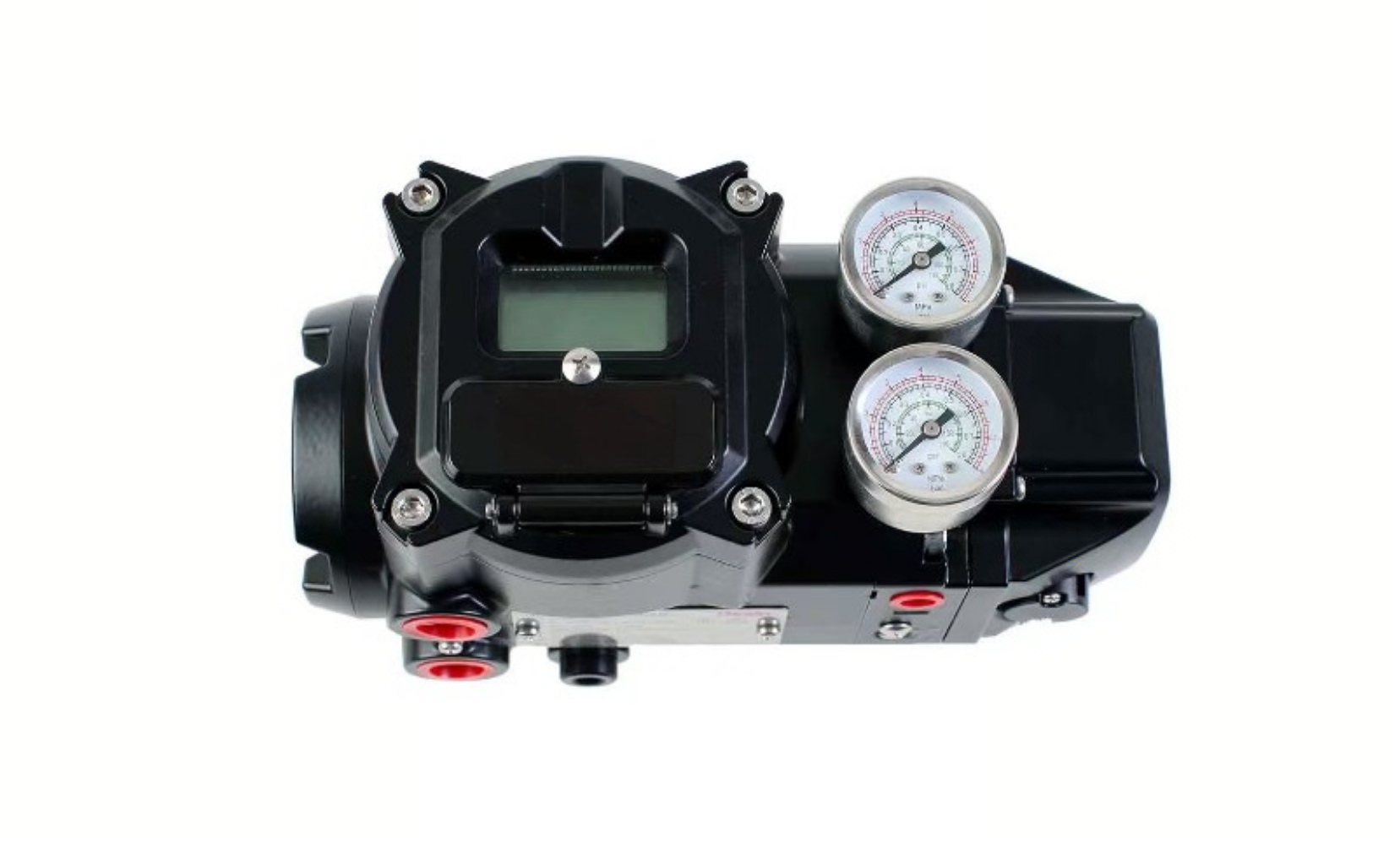

II. Product Features

LCD screen and 4 buttons for quick and easy automatic setting
Partial Stroke Testing (PST) function
Fault alarm function
Built-in automatic/manual switch knob
Self-diagnostic function
IP66/NEMA4X protection rating
Equipped with a large-flow pilot valve to speed up valve operation
Shock-resistant and vibration-resistant design

III. Technical Data

Specification	Details
Input Current Range	4~20mA DC
Internal Impedance	500Ω (at 20mA DC)
Input Air Pressure Range	0.14~0.7MPa
Stroke Range	Linear Stroke: 10~150mm, Rotary Stroke: 0~90º
Air Supply Connection Size	PT1/4, NPT1/4
Pressure Gauge Connection Size	PT1/8, NPT1/8
Electrical Connection Size	G(PF)1/2, NPT1/2
Explosion-Proof Rating	EX db IIC T5/T6
Enclosure Protection Rating	IP66
Ambient Temperature (Normal Operation)	Standard Type: -30℃~85℃ Low-Temperature Type: -40℃~85℃
Explosion-Proof Temperature Range	T5: -40℃~60℃ / T6: -40℃~40℃
Linearity	±0.5% F.S.
Sensitivity	±0.2% F.S.
Hysteresis	±0.5% F.S.
Repeatability	±0.3% F.S.
Air Consumption	Less than 2.3LPM (Supply Pressure = 0.14MPa)
Air Supply Quality Grade	Grade 3 (ISO 8573-1)
Flow Rate	More than 100LPM (Supply Pressure = 0.14MPa)
Material	Die-Cast Aluminum, 316 Stainless Steel
Weight	3.5kg

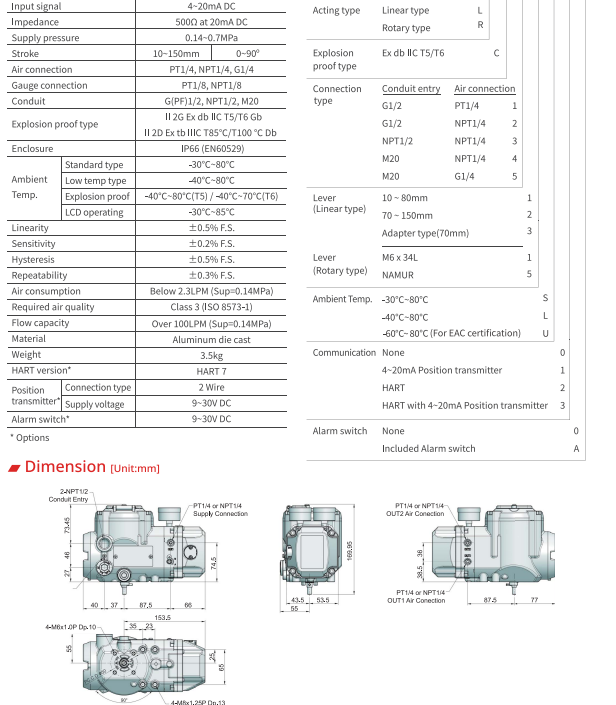

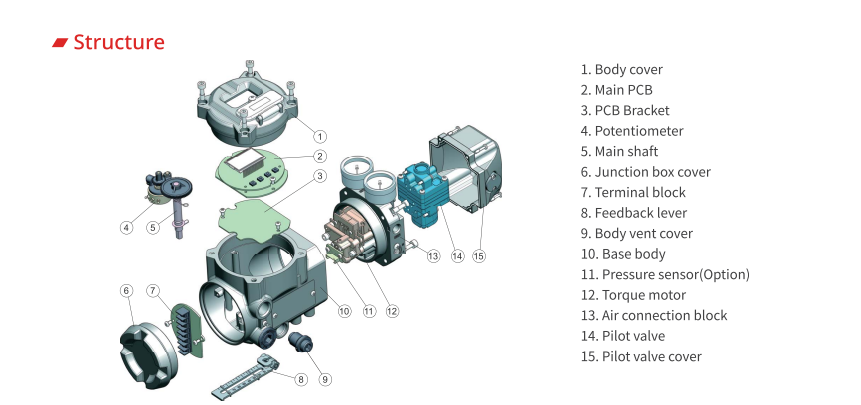

四．The main shape and connection size
