一．Product Introduction

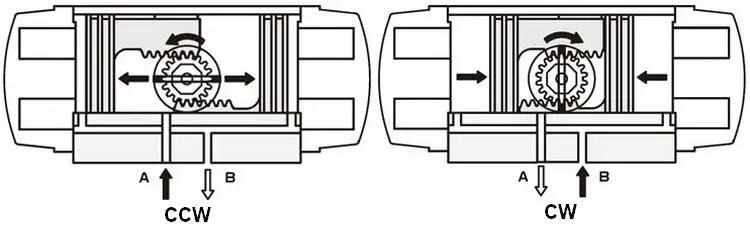

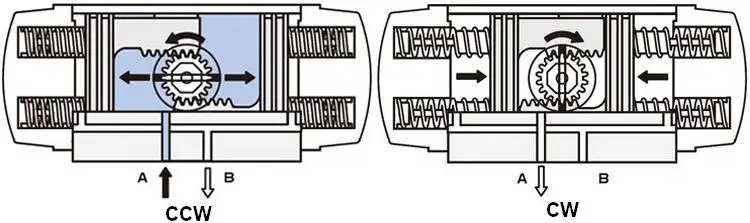

This is a 90-degree rotary pneumatic valve actuator that supports Double Acting and Spring Return (Single Acting) modes. It features a wide output torque range and reliable performance, and is widely applied in industries such as food & beverage, water treatment, chemical, etc. It is compatible with filtered dry compressed air and non-corrosive media, and has a long service life, making it suitable for various valve control scenarios.
二．Product Features
- Supports both Double Acting and Spring Return (Single Acting) modes to meet different valve control needs
- Long lifespan up to 1,000,000 cycles for stable long-term operation
- No lubrication required for the standard type under normal working conditions (special lubricants for extreme temperatures)
- Wide adaptation to media: applicable to filtered dry compressed air and non-corrosive media
- Rich optional accessories for easy function expansion (e.g., solenoid valve, limit switch)
- Lightweight and durable shell made of extruded aluminum alloy
三．Technical data
- Acting Mode: Double Acting, Spring Return (Single Acting)
- Output Torque: 14 to 1170Nm
- Air Supply Pressure: 2.5 to 8 bar
- Lifespan: 1,000,000 Times
- Angle of Rotation: 90°+4°
- Shell Material: Aluminum Alloy Extruded
- Applicable Media: Filtered, Dry Compressed Air, Non-Corrosive Medium
- Ambient Temp.: Standard: -20 to +80°C (-4 to 176°F)

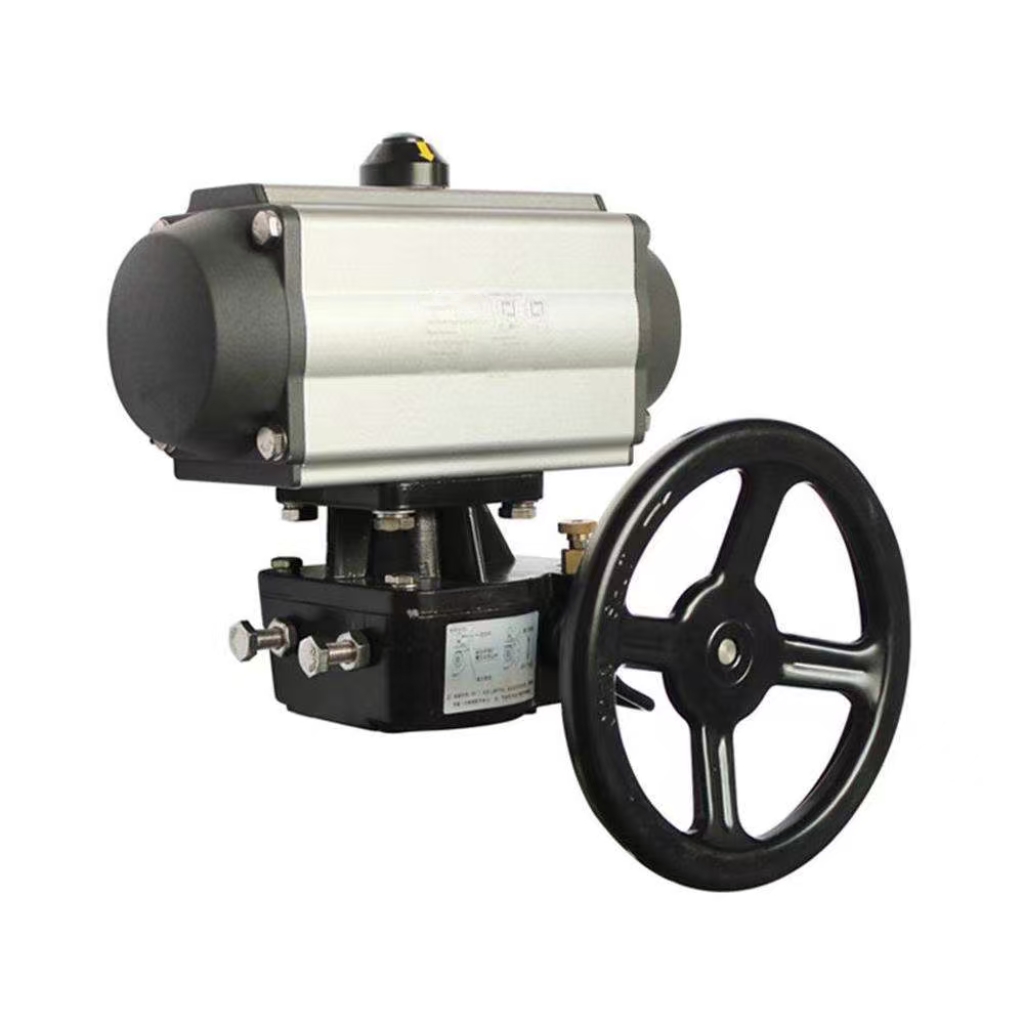

- Optional Accessories: Namur Solenoid Valve, Limit Switch, F.R.L, Position Indicator, Manual Device
- Application: Food & Beverage, Water & Wastewater, Ultra Pure Water, Desalination, Chemical, Textile, Pharmaceutical, Pulp & Paper
- Lubrication: No lubrication needed for standard type under normal operating conditions; special lubricants for low/high temperature conditions

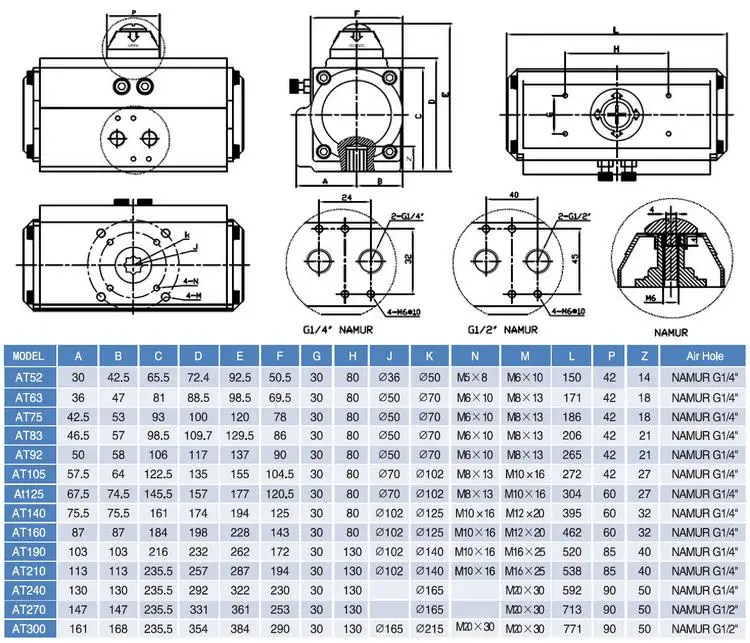

四．The main shape and connection size
