一．Product Introduction

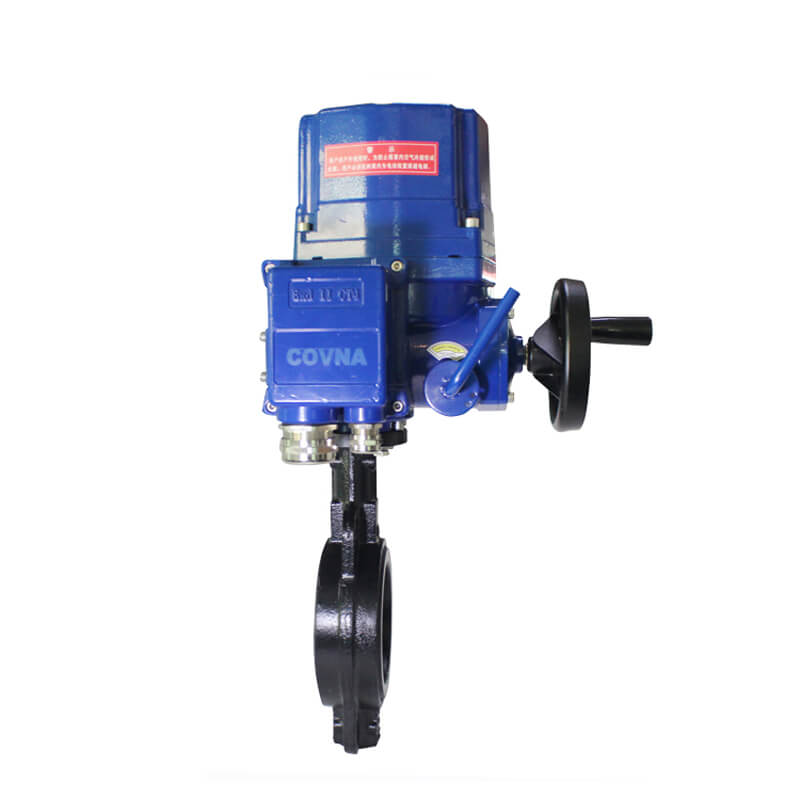

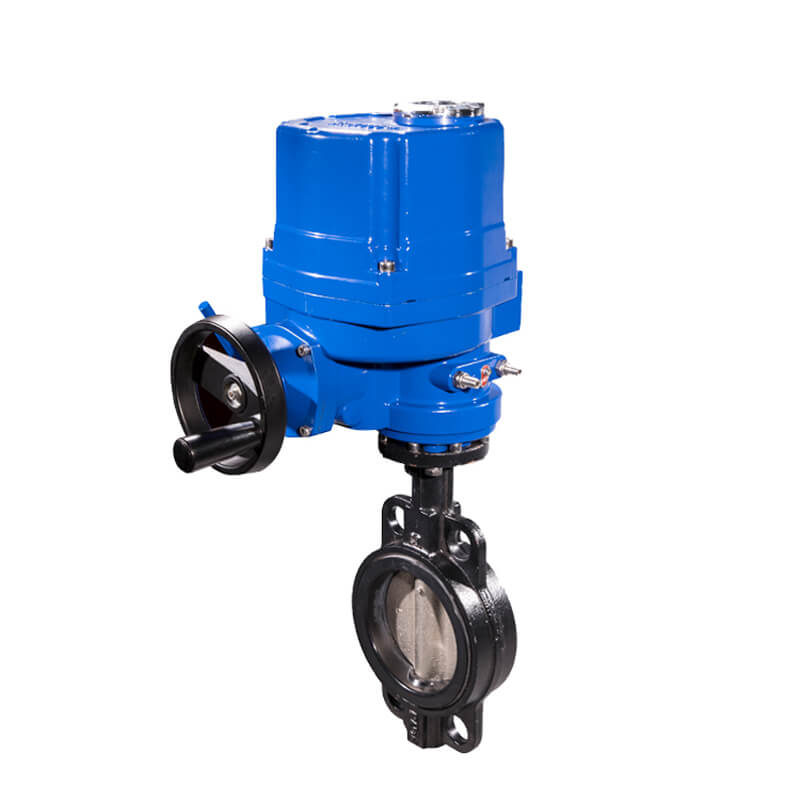

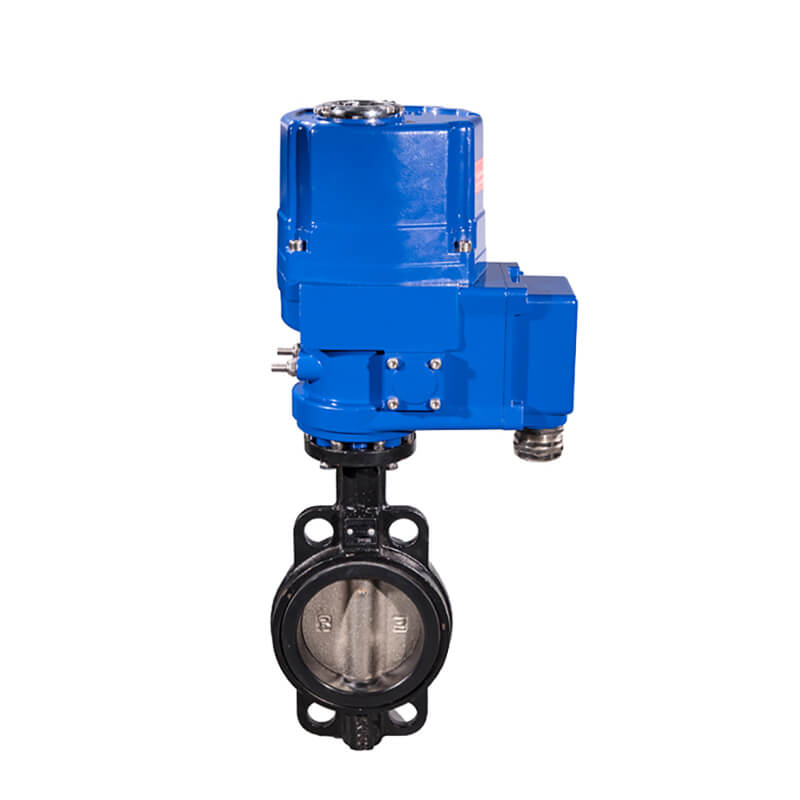

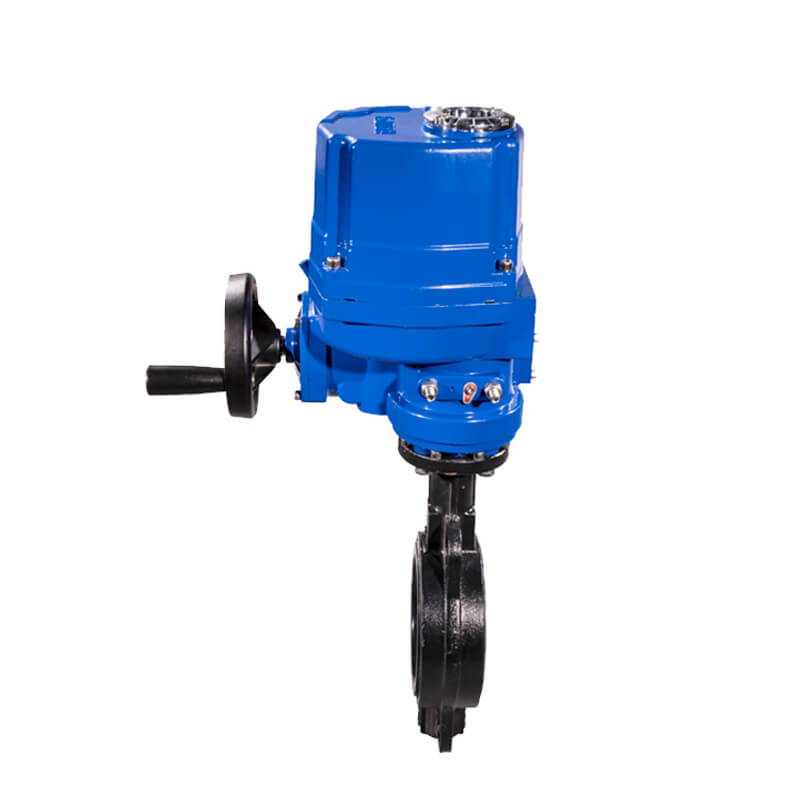

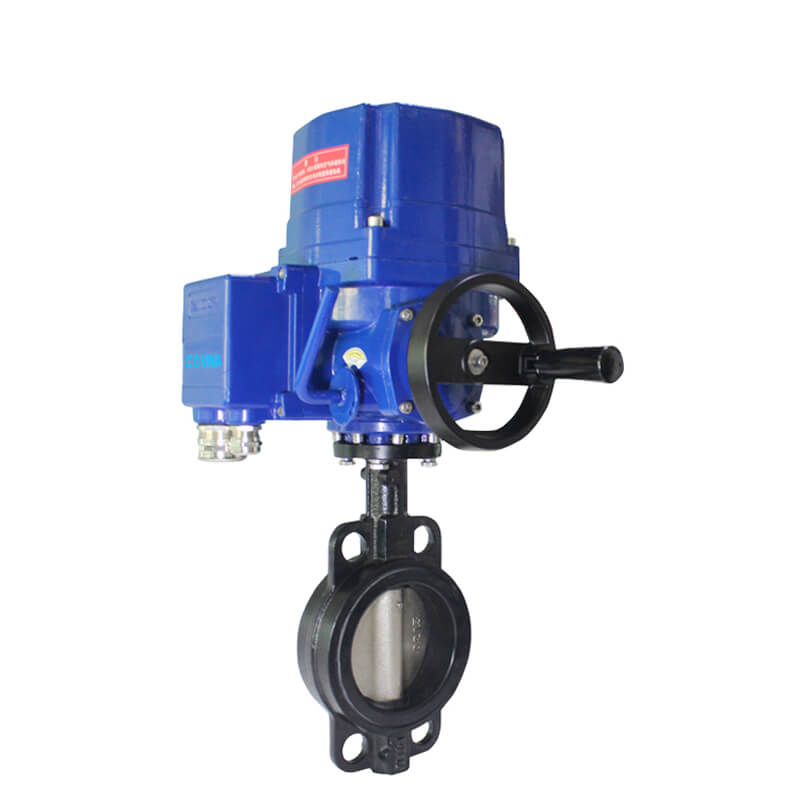

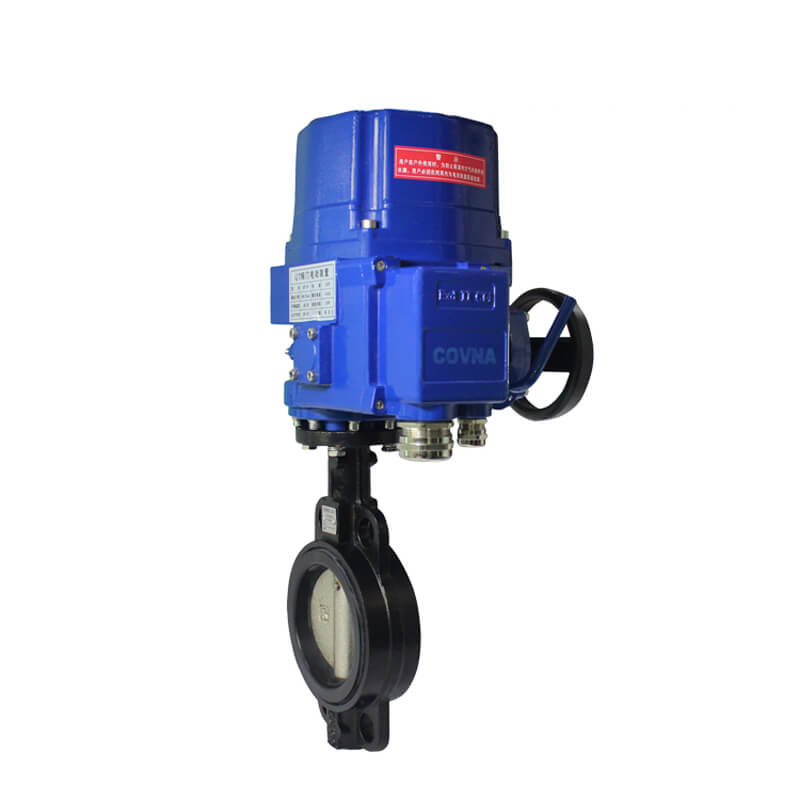

WYE explosion-proof electric butterfly valve provides you with a safe and reliable fluid control solution. The explosion-proof electric actuator contains explosion-proof modules, which can effectively prevent accidents, improve the safety of projects, and ensure the safety of personnel. Widely used in oil pipelines, natural gas pipelines, mining, shipbuilding and so on.
It can be used in various pipelines when used with butterfly valves. At the same time, we can help you choose a suitable butterfly valve according to your piping requirements, such as wafer butterfly valve, flange butterfly valve or lug butterfly valve and so on.
二．Product Features
● The valve is widely used in food, environmental protection, light industry, petroleum, paper, chemicals, teaching and research equipment, and electric power industries of industrial automation control systems
● The actuator has a very good sealing performance to avoid accidents caused by gas leakage
● Excellent explosion-proof performance
● Available in RS485
三．Technical data
| Actuator Type | Explosion Proof Actuator | Body Material | Cast Iron/Stainless Steel/WCB | |
| Working Pressure | 10 bar (145 psi) | Suitable Media | Air, water, steam, oil, gas, etc | |
| Temperature Of Media | -20 to 150℃ (-4℉ to 302℉) | Structure | Midline structure A type | |
| Port size Range | DN50 to DN800 | End Connection | Wafer | |
| Voltage | DC-12V, 24V; AC-24V,110V, 220V, 380V | Voltage Tolerance | ±10% |

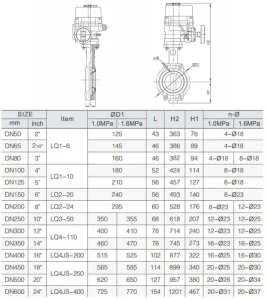

四．The main shape and connection size
