一．Product Introduction

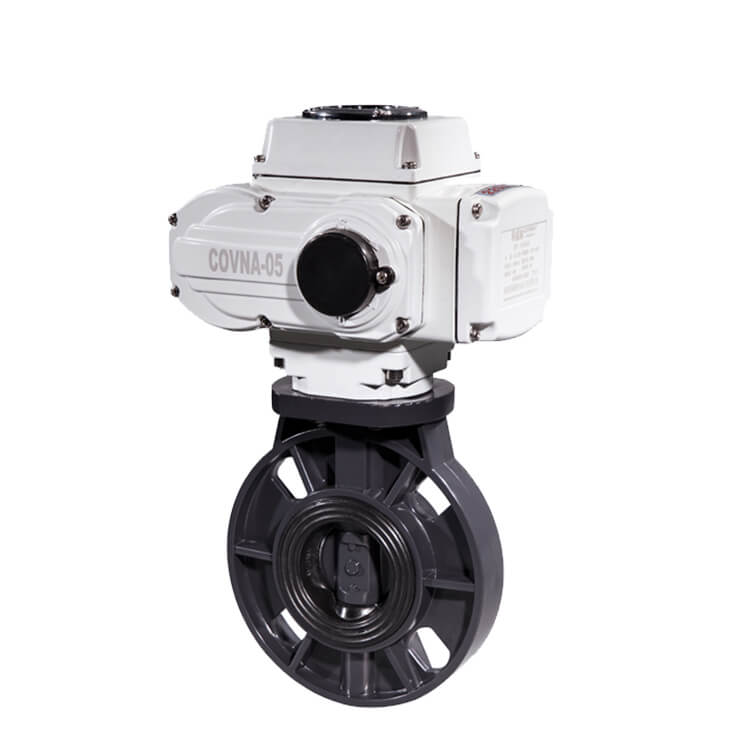

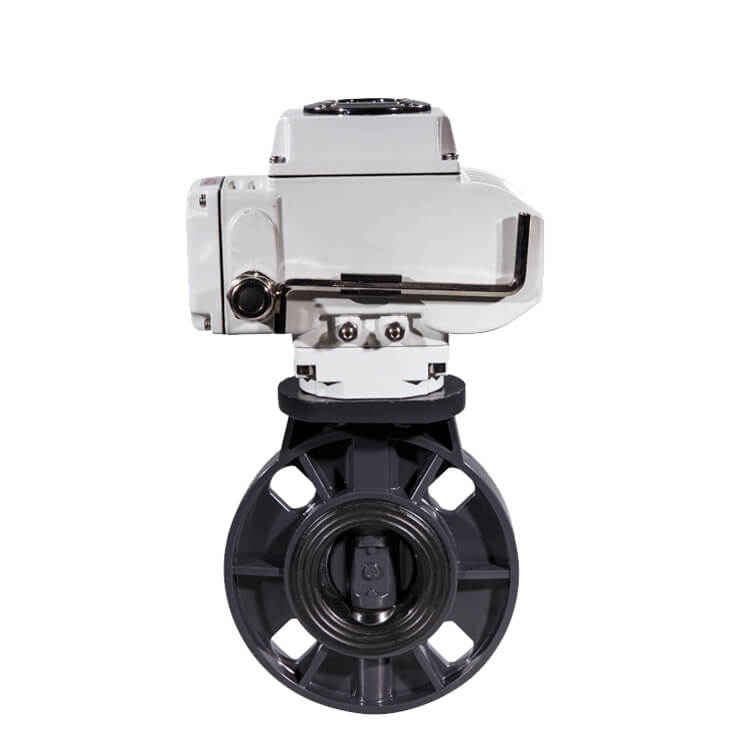

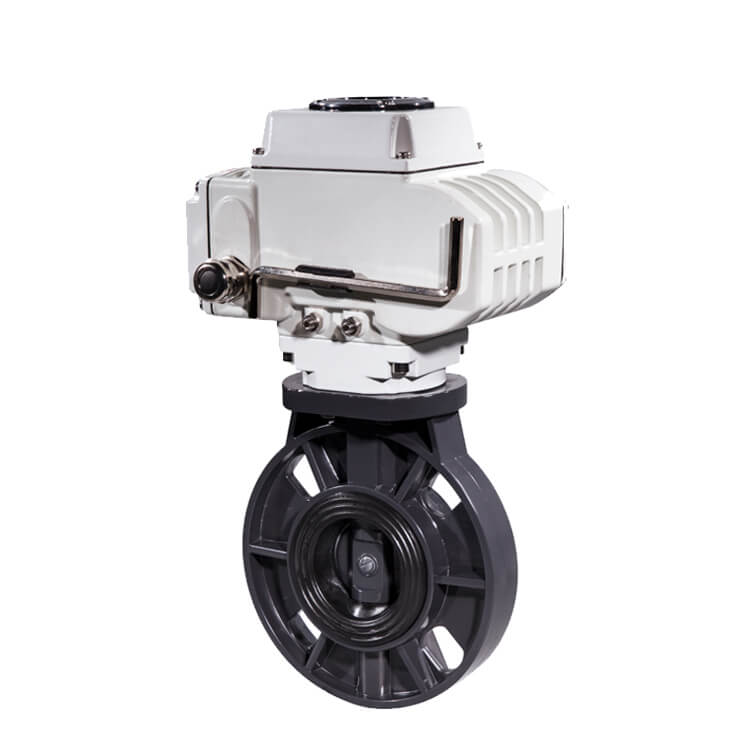

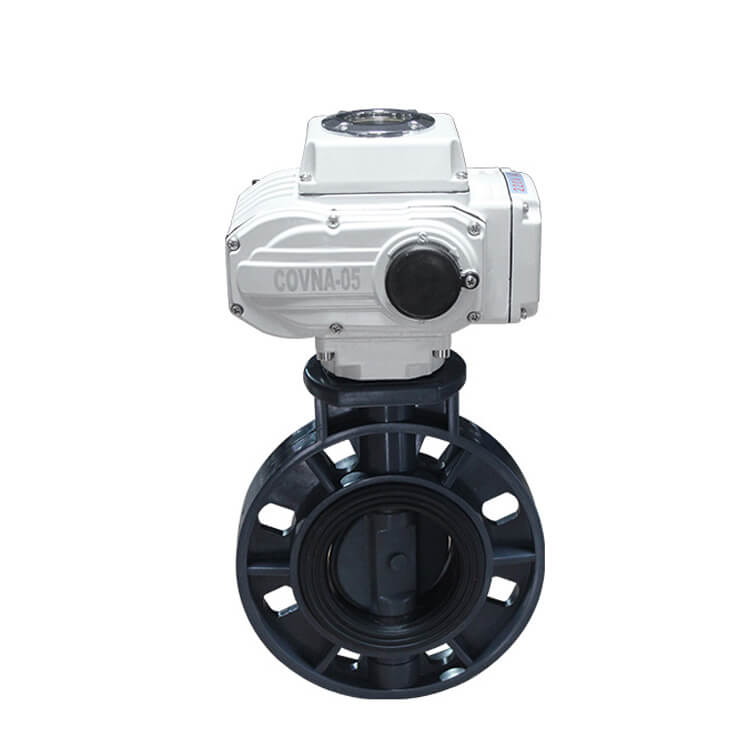

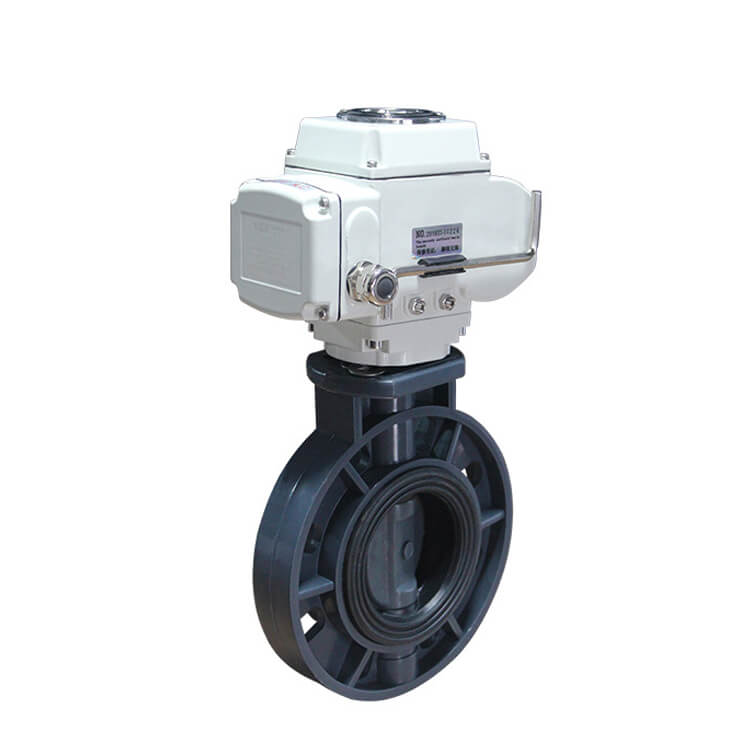

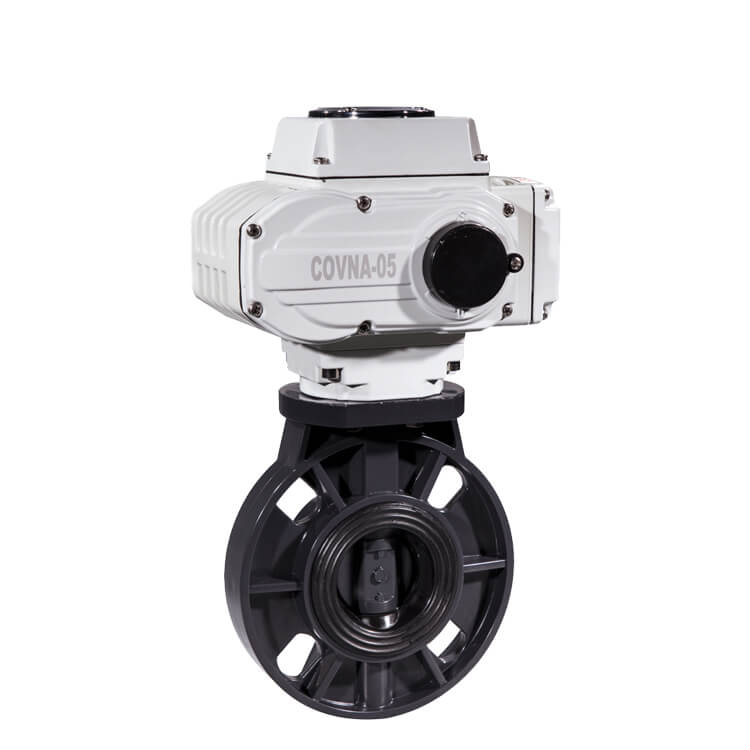

WYE electric UPVC butterfly valve provides you with a cost-effective fluid control solution. Its advantages are light weight, compact design, saving installation space and low cost. If your project needs to control the flow of ordinary water, then UPVC butterfly valve will be your first choice. Provide you with value for money valve solutions.
It can be used with electric actuator to realize remote control and improve production efficiency.
二．Product Features
● Features include lightweight, low cost, and anti-corrosive
● Multiple control methods for your choice: Manual override, signal control and AC/DC power supply
● Size range from 2 inches to 12 inches for your choice to meet your pipeline’s requirement
● Widely used in wastewater treatment, chemical industry, etc
● Also available in CPVC, PPL, PP material to meet your medium’s requirements
三．Technical data
| Medium | Air, water, gas, oil, etc | Port size | 2″, 2.5″, 3″, 4″, 5″, 6″, 8″, 10″, 12″ | |
| Structure | Midline structure A type | Voltage | DC-12V, 24V; AC-24V, 110V, 220V, 380V | |
| Connection | Wafer | Voltage Tolerance | ±10% | |
| Body Material | Plastic UPVC (CPVC, PPL and PP are available) | Working Pressure | 10 (145 psi) | |
| Manual Override | Accepted | Temperature Of Media | 60℃ (140 ℉) |
四．The main shape and connection size
