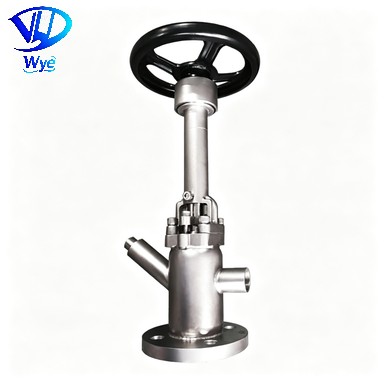

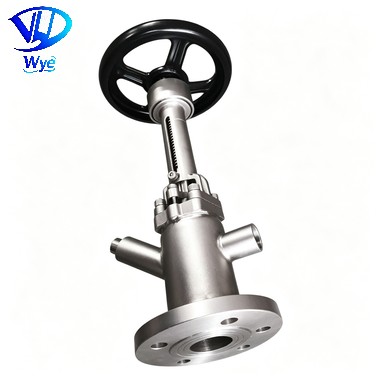

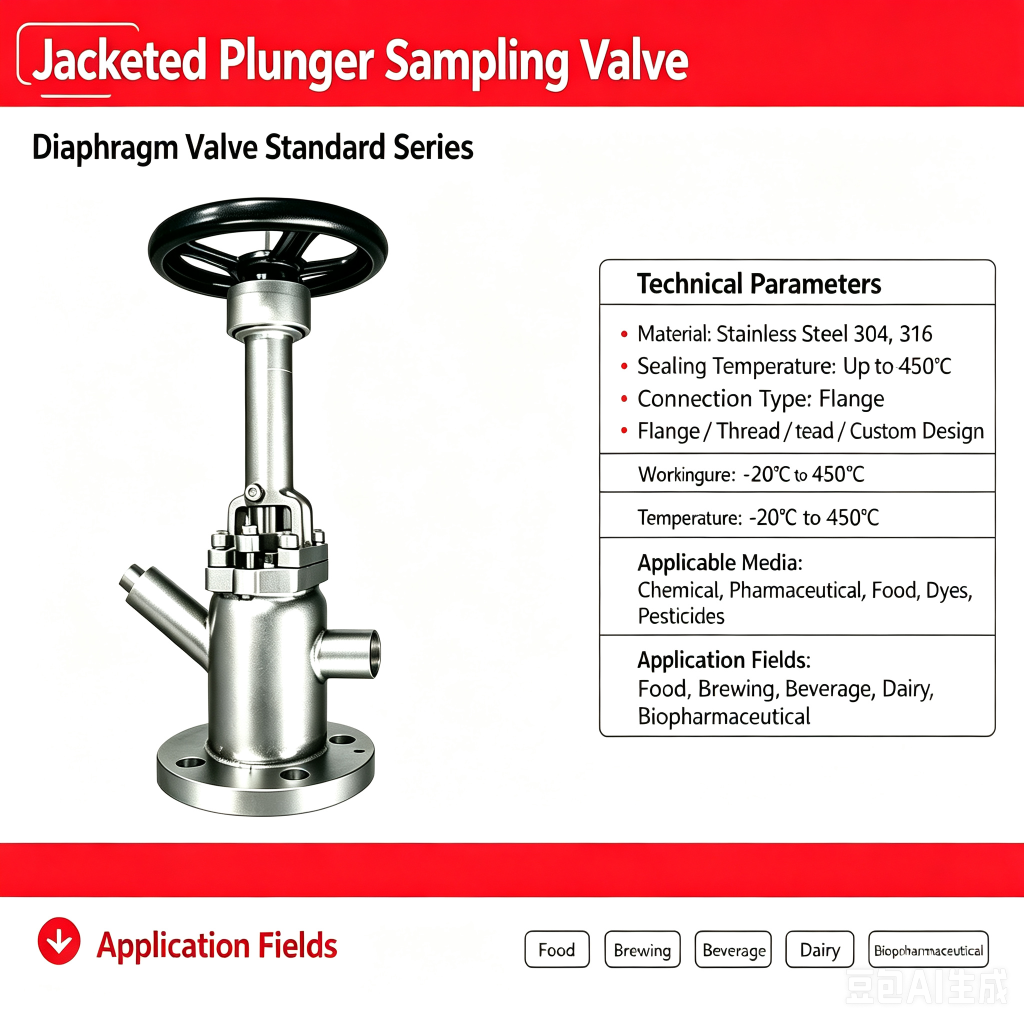

Parameter Category
|
Specific Specifications
|
Remarks
|
|---|---|---|
|
Main Material
|
Stainless Steel 304/316/316L
|
316/316L is recommended for pharmaceutical and biochemistry industries with higher corrosion resistance requirements
|
|
Sanitary Grade
|
3A, DIN 11851, ISO 2852
|
Compliant with international sanitary standards, no toxic and harmful substances, suitable for food and pharmaceutical contact
|
|

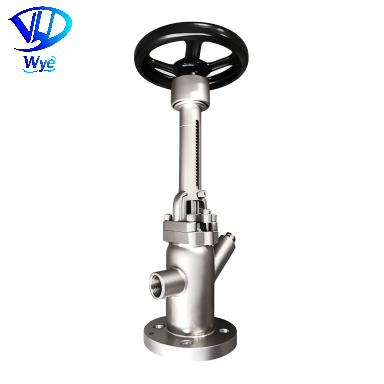

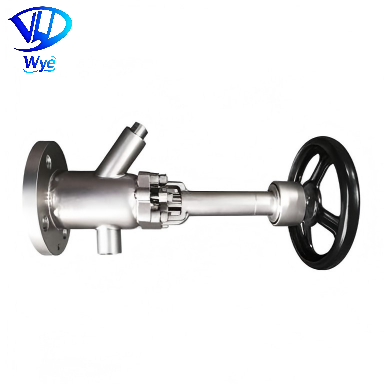

Structure Type
|
Jacketed Plunger Type, Double Sealing
|
Plunger-type core component, double mechanical sealing + PTFE sealing ring composite structure
|
|
Nominal Diameter (DN)
|
DN8, DN10, DN15, DN20, DN25, DN32
|
Customizable non-standard diameters according to customer requirements
|
|
Nominal Pressure (PN)
|
PN10, PN16, PN25
|
Suitable for working pressure range 0-1.6MPa (PN16 as standard)
|
|
Working Temperature
|
-20℃~150℃ (normal temperature); -40℃~200℃ (high temperature resistant type)
|
Temperature range can be adjusted according to the jacketed medium type
|
|
Jacketed Medium
|
Steam, hot water, cold water, heat transfer oil
|
Used for heating or cooling the medium in the valve body to prevent crystallization or viscosity change
|
|
Sealing Material
|
PTFE, EPDM, Silicone Rubber
|
PTFE is standard for high temperature and corrosion resistance; EPDM/silicone rubber for special medium requirements
|
|
Connection Mode
|
Clamp (Sanitary Clamp), Thread (NPT/BSP), Weld (Butt Weld/Socket Weld)
|
Clamp connection is standard for easy disassembly and cleaning; other connections customizable
|
|
Operating Mode
|
Manual (Handwheel), Pneumatic (Optional)
|
Manual type is standard; pneumatic type can be equipped with solenoid valve and control box for automatic control
|
|
Leakage Standard
|
Zero leakage (gas tightness test ≤1×10⁻⁶ Pa·m³/s)
|
Complies with GB/T 13927-2008 industrial valve pressure test standards
|
|
Surface Treatment
|
Inner wall: Mirror Polishing (Ra≤0.4μm); Outer wall: Polishing (Ra≤0.8μm) / Sandblasting
|
Mirror polishing for inner wall to avoid medium residue and facilitate cleaning
|
|
Applicable Media
|
Liquid, semi-fluid, high-viscosity fluid, easy-to-crystallize fluid, sterile fluid
|
Suitable for food, beverage, pharmaceutical, dairy, chemical and other industry media
|

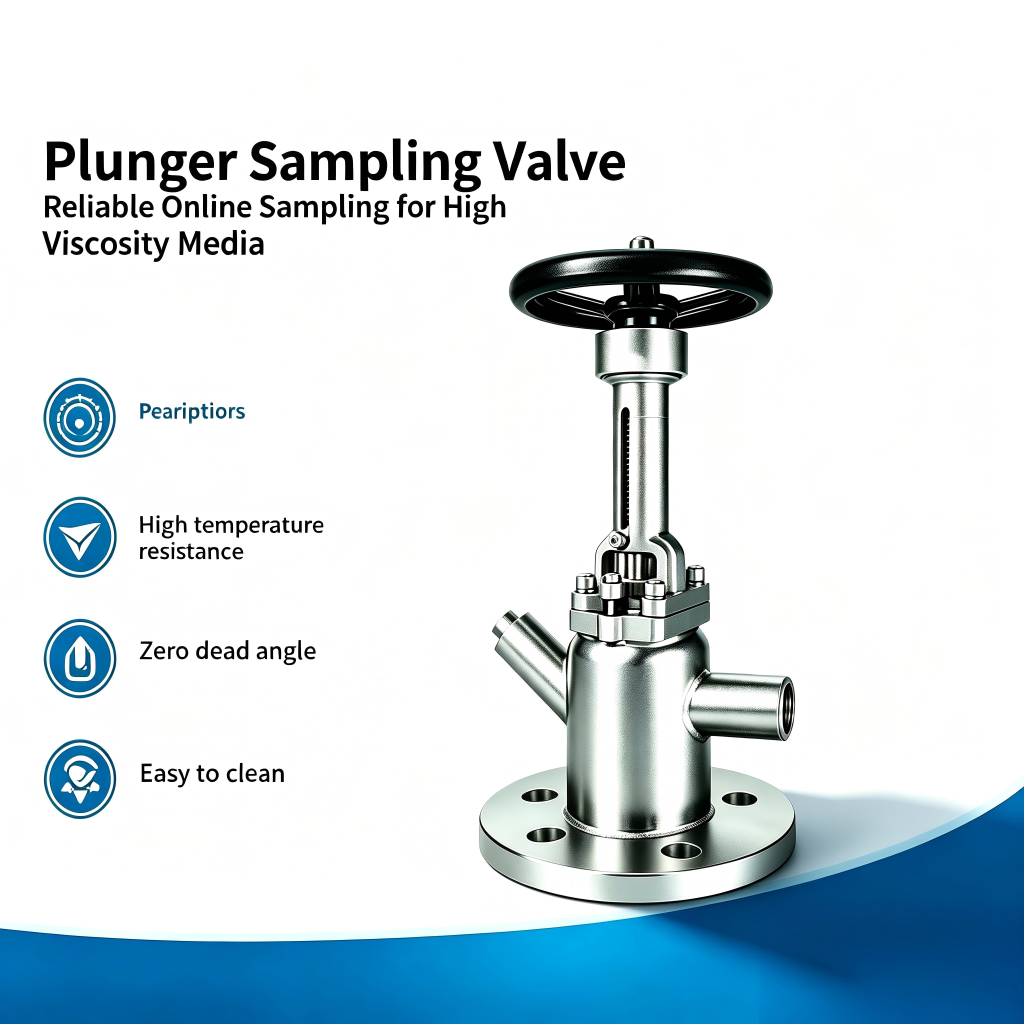

Product Advantages
1. Factory direct sales: No intermediate links, favorable price, customizable production according to customer needs, and short delivery cycle.
2. Excellent leak-proof performance: Double-sealing structure design, combining mechanical sealing and soft sealing, effectively preventing medium leakage and ensuring production safety.
3. Sanitary and safe: All materials in contact with the medium are food-grade and pharmaceutical-grade stainless steel, with smooth inner wall and no dead corners, meeting the requirements of CIP (Clean In Place) and SIP (Sterilize In Place).
4. Versatile applicability: Jacketed design adapts to temperature-sensitive media, and multiple connection and operating modes can meet the installation and use requirements of different production scenarios.
