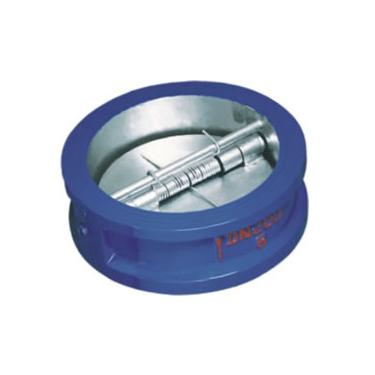

H76X/F/H/Y/W type clamp butterfly check valve

  H76H, H76Y, H76W, H76X, H76F type clamp butterfly check valves are used in pure pipelines and industrial, environmental protection, water treatment, and high-rise building water supply and drainage pipelines to prevent the reverse flow of media.

一.Product Introduction
  H76H, H76Y, H76W, H76X, H76F type clamp butterfly check valves are used in pure pipelines and industrial, environmental protection, water treatment, and high-rise building water supply and drainage pipelines to prevent the reverse flow of media.
二.Product Features

  1. Small size, light weight, compact structure and easy maintenance
  2. The valve plate adopts a dual type, which can be quickly closed by itself under the elastic force of the spring.
  3. Due to the quick-closing effect, the medium can be prevented from flowing back.
  4. The length and size of the valve body structure are small, and the rigidity is good.
  5. It is safe and convenient, and can be used for installation in both horizontal and vertical directions.

三.Technical data

Model number Working pressure

(MPa)

Applicable temperature

(°C)

Applicable media Valve body material
H76H-10C~40 1.0~4.0 -29~425 Water, steam, oil Carbon steel
H76W-10P~25 1.0~2.5 ≤150 Nitric acid Stainless steel
H76Y-40P 4.0 ≤150 Nitric acid Stainless steel

四.The main shape and connection size

Nominal diameter DN (mm) Size (mm)
  L H B1 B2
200 230 550 540 600
250 250 630 600 700
300 270 690 650 740
350 290 780 710 800
400 310 860 770 870
450 330 910 830 920
500 350 980 900 1000
600 390 1070 1090 1250
700 430 1220 1200 1360
800 470 1320 1320 1480
900 510 1430 1420 1580
1000 550 1550 1550 1700
1200 630 1800 1780 1950
1400 710 1980 2000 2175
