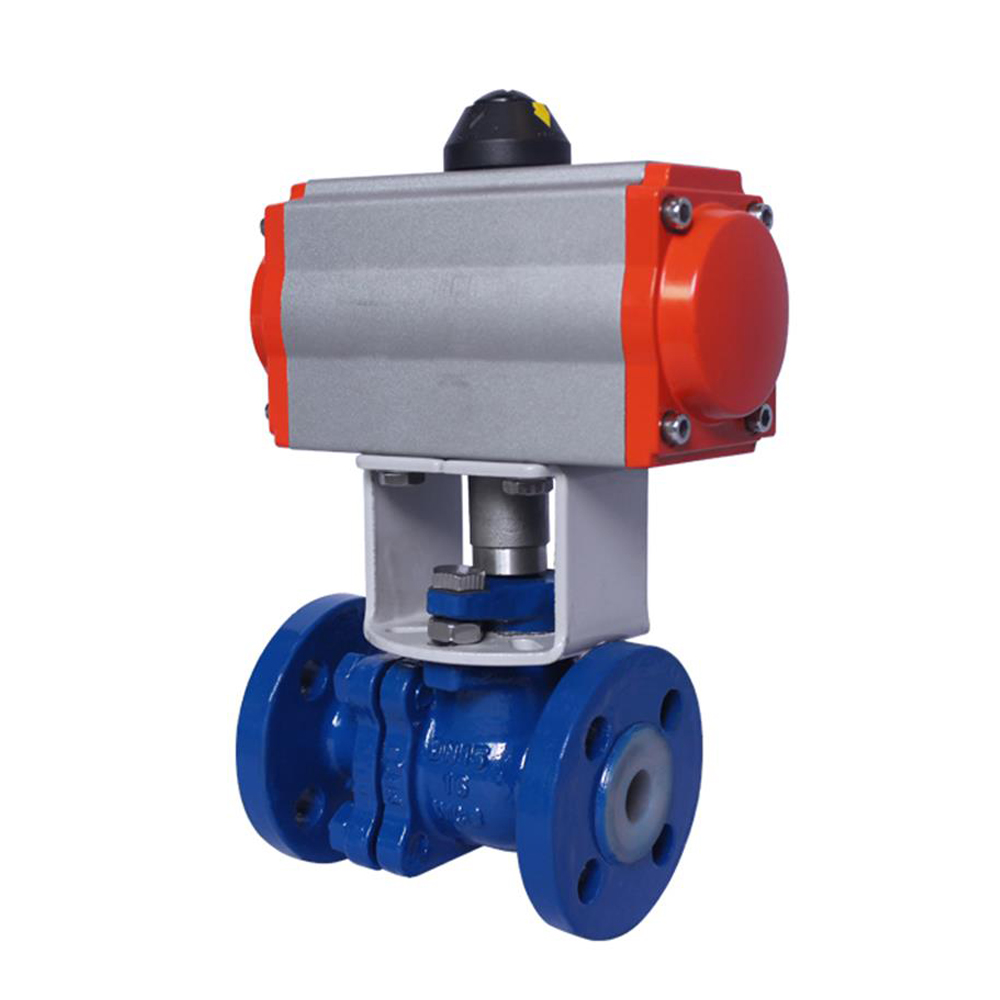

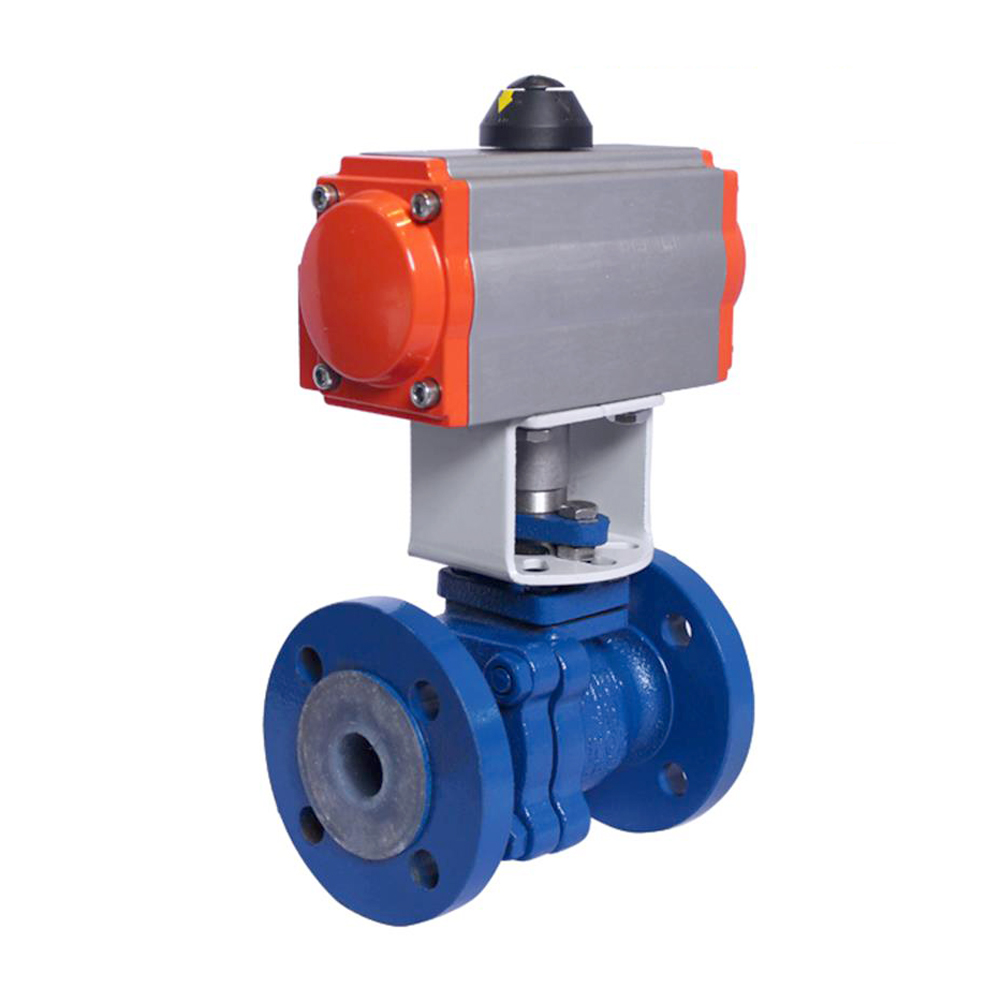

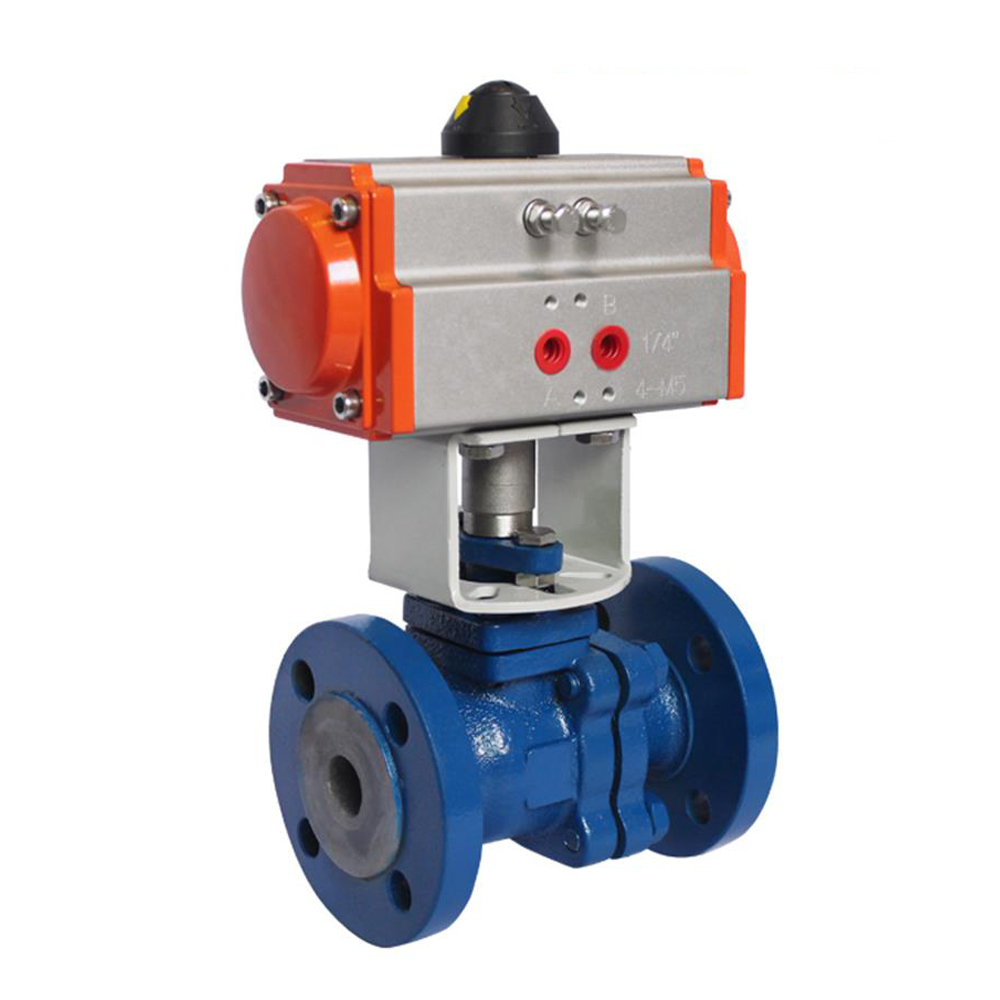

Flanged Pneumatic Actuator Ball Valve

Model:industrial valves
Size Range: 1/2″ to 8″
Pressure Range: 1.6MPa to 6.4MPa
Material: Stainless Steel

This supported stainless steel PTFE flanged pneumatic actuator ball valve is a high-performance control component designed for industrial fluid systems (e.g., chemical, petroleum, thermal power). It combines a corrosion-resistant stainless steel valve body, PTFE (polytetrafluoroethylene) sealing elements, and a pneumatic actuator to realize fast, automatic on-off/regulation of media under high temperature and pressure conditions. It is widely used in scenarios requiring strict sealing, corrosion resistance, and stable pressure control.

I. Product Introduction

II. Product Features

Excellent Corrosion & High-Temp Resistance: Stainless steel valve body (optional 304/316L) matches PTFE seals, enabling adaptation to media temperatures up to 200℃ and resistance to most acidic/alkaline corrosive fluids.
Stable Pneumatic Actuation: Equipped with a high-response pneumatic actuator (double-acting/single-acting), it achieves fast switching (≤5s) and supports remote automatic control, suitable for continuous industrial operations.
Reliable Sealing Performance: PTFE sealing structure (with support ring) ensures zero leakage under rated pressure, while the flanged connection meets industrial sealing standards (e.g., ANSI B16.5) for secure assembly.
Pressure Adaptability: Designed for high-pressure working environments, it maintains stable performance under rated pressures (up to Class 150/PN16, customizable to higher grades).
Durable Structure: The supported valve core design reduces wear during operation, extending the service life of sealing components and the valve body.

III. Technical Data

Parameter	Specification (Customizable)
Valve Body Material	304 Stainless Steel, 316L Stainless Steel
Sealing Material	PTFE (supported)
Nominal Diameter (DN)	DN15-DN200
Nominal Pressure	Class 150 (PN16), Class 300 (PN40)
Working Temperature	-20℃ to 200℃
Actuator Type	Double-acting Pneumatic Actuator, Single-acting (Spring Return)
Control Medium	Compressed Air (0.4-0.6MPa)
Connection Type	Flanged (ANSI, DIN, GB standards)
Applicable Media	Corrosive liquids/gases, high-temperature fluids

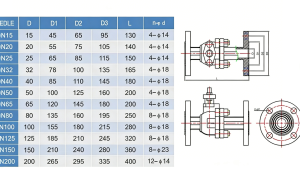

Ⅳ．The main shape and connection size
