一．Product Introduction

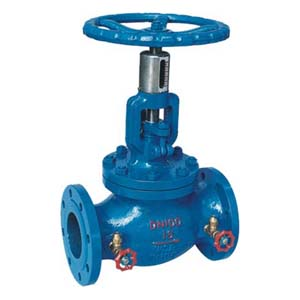

KPF type manual self-locking balance regulating valve: It is a kind of valve with special functions. In addition to the function of regulating valve, it can also realize flow quantification, which can effectively solve the problem of uneven room temperature and heat in the heating (air conditioning) system.Since the valve is equipped with an opening indicator, an opening locking device and a small pressure measuring valve for flow measurement, as long as a balance valve of appropriate size is installed at each branch and the user entrance, and a special intelligent instrument is used for one-time debugging and locking, the total water volume of the system is controlled within a reasonable range, and the unreasonable phenomenon of “large flow and small temperature difference” can be overcome. It is an ideal product in the heating system.
Manual self-locking balance regulating valve can be installed on the water supply pipe, it can also be installed on the return pipe, generally installed on the return pipe, especially for high temperature loops, in order to facilitate debugging, it should be installed on the return pipe road, the water supply and return pipe with the balance valve installed does not need to be equipped with a shut-off valve.
二.Product Features
1.Functions: lt has the function of a regulating valve and can achieve quantitative flow, effectively solving theuneven room temperature problem in heating (air conditioning) systems.
2.Configurations: Equipped with an opening degree indicator, an opening degree locking device, and a smallpressure measuring valve for flow measurement.
3.Commissioning and Role: install appropriate scale balance valves on each branch and user inlet, lock themafter one – time debugging with a dedicated intelligent instrument to control the total water volume of thesystem within a reasonable range, and overcome the unreasonable phenomenon of “large flow and smalltemperature difference”.
4.Installation Position: Can be installed on the supply pipe or return pipe. Generally, it is installed on the returnpipe. Especially for high – temperature loops, for convenient debugging, it should be installed on the return pipe.
5.Matching: The supply and return pipes with a balance valve installed do not need to be equipped with a stop valve.
三.Technical data
| Model number | PN | Working pressure/MPa | Applicable temperature /℃ | Applicable media | Transmission method |
| KPF-10 | 10 | 1.0 | -29~350 | Water, steam | Transmission method manual, gear transmission, electric |
| KPF-16 | 16 | 1.6 | |||
| KPF-25 | 25 | 2.5 |
| Model number | Material | ||
| Valve body, valve cover, packing gland, handwheel | Valve stem, valve disc sealing ring | Indicator plate, stem nut, nut sleeve | |
| KPF-10 | Gray cast iron, (cast steel) | Stainless steel | Brass |
| KPF-16 | |||
| KPF-25 | |||
四.The main shape and connection size
| DN | L | H | H1 | D0 |
| 15 | 130 | 150 | 160 | 80 |
| 20 | 150 | 160 | 170 | 180 |
| 25 | 160 | 182 | 197 | 80 |
| 32 | 180 | 192 | 207 | 90 |
| 40 | 200 | 250 | 270 | 100 |
| 50 | 230 | 264 | 284 | 120 |
| 65 | 290 | 380 | 410 | 200 |
| 80 | 310 | 413 | 448 | 200 |
| 100 | 350 | 446 | 506 | 240 |
| 125 | 400 | 540 | 595 | 240 |
| 150 | 480 | 623 | 688 | 360 |
| 200 | 495 | 687 | 762 | 400 |
| 250 | 622 | 782 | 867 | 500 |
| 300 | 698 | 914 | 1009 | 500 |
| 350 | 787 | 968 | 1073 | 680 |
| 400 | 914 | 1037 | 1152 | 680 |
| 500 | 978 | 1440 | 1440 | — |
| 600 | 1295 | 1790 | 1790 | — |
