â… . Product Introduction

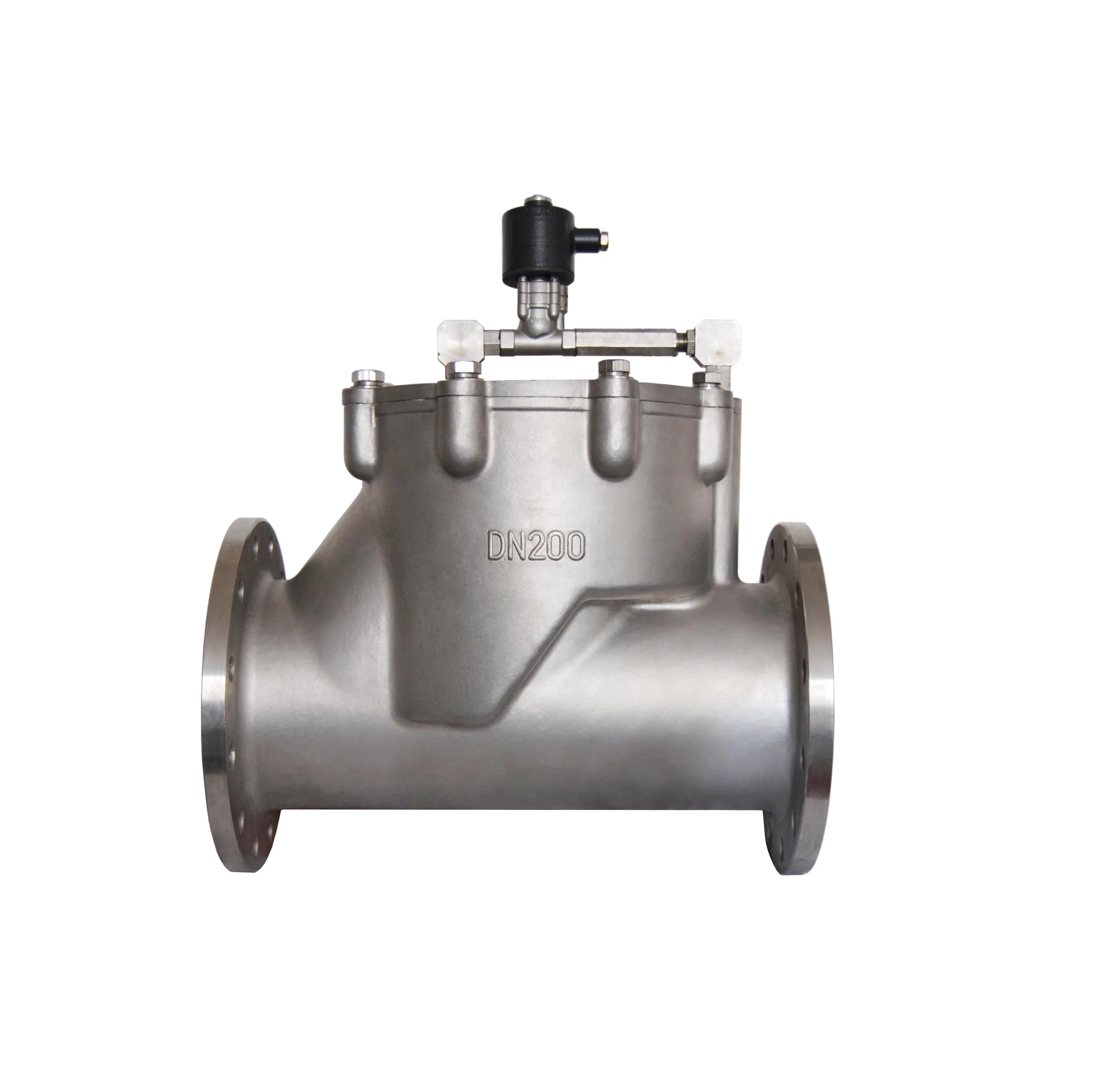

The large diameter solenoid valve is a high-performance control component specially designed for large-flow fluid control scenarios. It adopts advanced structural design and high-quality materials, which can accurately and stably control the on-off of various fluids (including water, gas, oil, etc.) under different working conditions. With its reliable performance and wide adaptability, this product has become an indispensable core part in many industrial and civil fields, providing efficient and safe solutions for fluid control systems.
It integrates patented technology and optimized manufacturing processes, and its structural design is scientific and reasonable. It not only meets the requirements of large-diameter fluid circulation, but also ensures the rapidity and stability of switching actions. Whether in high-pressure, high-temperature, corrosive or other harsh working environments, it can maintain excellent working performance, effectively improving the automation level and operation efficiency of the entire fluid system.
â…¡. Product Features
1. Core Structural & Technological Advantages
Adopts patented technology and piston structure, which fundamentally ensures the reliability and stability of the product. The piston structure has the characteristics of strong pressure bearing capacity and good sealing performance, which can realize rapid switching of the valve. The switching response speed is far higher than that of traditional valves, which can quickly meet the emergency control needs of the system and avoid potential risks caused by slow switching.
2. Long Service Life & Aesthetic Appearance
The valve body is made of high-quality materials such as stainless steel (304, 316, 316L) and cast steel, which have excellent corrosion resistance, wear resistance and high-temperature resistance. Cooperating with the precision manufacturing process, the product has a long service life, which greatly reduces the frequency of maintenance and replacement, and saves the operation cost for users. At the same time, the product has an exquisite appearance, with smooth lines and compact structure, which can be well integrated into various installation environments.
3. Wide Adaptability & Flexible Installation
It has a wide range of adaptability to circulating fluids, and can be applied to common fluids such as water, gas and oil, as well as special fluids such as flammable, explosive, corrosive, high-temperature and low-temperature fluids. The control modes include normally open and normally closed, which can be selected according to different working condition requirements. In terms of installation, there is no restriction on the installation position, and horizontal (S-type) or vertical (C-type) installation can be carried out according to the on-site space and system layout, which greatly improves the flexibility of installation.
4. Excellent Sealing Performance
It realizes zero leakage, which is crucial for fluid control systems, especially in fields with high requirements for fluid tightness such as petrochemical industry, medical care and food. Zero leakage can not only ensure the stability and safety of the system, but also avoid resource waste and environmental pollution caused by fluid leakage.
â…¢. Technical Data
Technical Parameters of Large Diameter Solenoid Valve
-
Action mode: Pilot type
-
Diameter range: DN100-600
-
Working environment temperature: -30—+80℃; -50—+100℃
-
Coil operating temperature: <+50℃, <+85℃
-
Control mode: Normally open, Normally closed
-
International standard voltage: AC (380, 220, 110, 24) V, DC (220, 110, 24, 12) V
-
Circulating fluid medium: water, gas, oil, flammable, explosive, corrosive, high and low temperature fluids
-
Circulating fluid temperature: <-100℃, <-40℃, <+60℃, <+120℃, <+200℃, <+350℃
-
Circulating fluid pressure: 6bar, 16bar, 25bar, 40bar, 64bar
-
Valve body material: stainless steel (304, 316, 316L), cast steel
-
Connection method: flange, welding
-
Leakage: zero leakage
Annotation
-
If the fluid contains impurities, a filter valve (30-80 mesh/inch) must be installed at the inlet end of the solenoid valve, and there should be no solidification or crystallization of the fluid.
-
There is no restriction on the installation position of the solenoid valve. (S-horizontal installation, C-vertical installation)
-
The above parameters are selected according to the requirements of the working conditions.
Application Scope
Water supply and drainage, sewage treatment, fountains, medical care, food, petrochemical industry, metallurgy, fire protection equipment, building automation, cleaning equipment, shipbuilding industry, power equipment, etc.
