â… ï¼ŽProduct Introduction

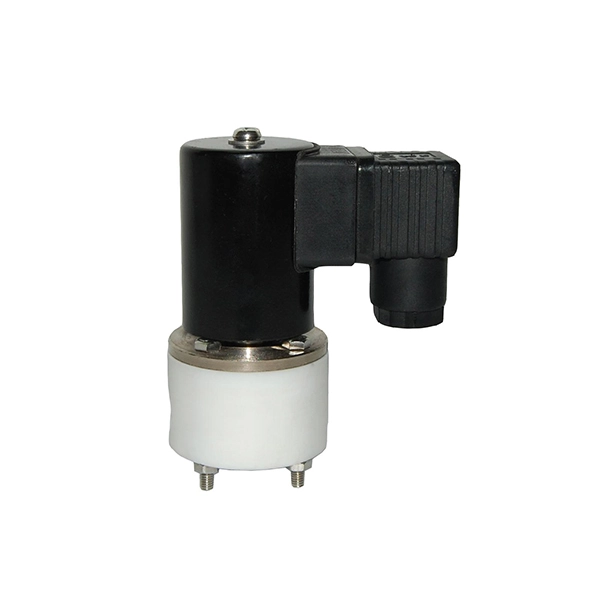

The anti-corrosion solenoid valve is a specialized control component designed for fluid control scenarios involving corrosive media. It integrates the functions of automatic control and anti-corrosion protection, playing a crucial role in regulating the on-off, flow, and direction of corrosive fluids in various industrial systems. Widely applied in chemical, petrochemical, pharmaceutical, electroplating, and other industries where corrosive media are present, this valve effectively solves the problem of valve damage caused by corrosion, ensuring the stability, safety, and long-term operation of the entire fluid control system. By adopting high-performance anti-corrosion materials and advanced structural design, it can withstand the erosion of various harsh corrosive media such as acids, alkalis, salts, phenols, and formaldehydes, providing reliable support for the normal production of related industries.
Ⅱ．Product Features
Excellent Anti-Corrosion Performance: The key components (such as valve body, valve core, and sealing parts) are made of high-quality anti-corrosion materials (e.g., PTFE, 316L stainless steel), which have strong resistance to corrosion by various acidic, alkaline, salt-based, and organic corrosive media, ensuring long service life in harsh working environments.
Versatile Application Scenarios: It supports a wide range of circulating fluid temperatures (from below -40℃ to above +200℃) and working environment temperatures (from -30℃ to +100℃), adapting to different extreme working conditions. Meanwhile, it is compatible with various corrosive fluid media, including but not limited to acids, alkalis, salts, phenols, formaldehydes, butane, and other chemical fluids.
Flexible Control Modes: Available in both normally open and normally closed control modes, it can be customized according to the specific control requirements of the system, meeting diverse on-off control needs.
Wide Voltage Compatibility: Complies with international standard voltage specifications, supporting both AC (380V, 220V, 110V, 24V) and DC (220V, 110V, 24V, 12V) power supplies, facilitating integration into different electrical systems worldwide.
Convenient Installation & Maintenance: There is no restriction on installation position, supporting both horizontal (S-type) and vertical (C-type) installation, which greatly simplifies the on-site installation process. The structural design is reasonable, making disassembly and maintenance easy, reducing maintenance costs and downtime.
Stable & Reliable Operation: Adopts a pilot-type action mode, which ensures sensitive and reliable valve opening and closing, with low energy consumption and stable performance. The coil operating temperature is strictly controlled (below +50℃ or +85℃), effectively preventing coil burnout due to overheating and ensuring long-term stable operation.
Ⅲ．Technical Data
Anti-corrosion solenoid valve technical parameters:
-
Action mode: Pilot type
-
Diameter range: DN0.1-25mm
-
Working environment temperature: -30—+80℃; -50—+100℃
-
Coil operating temperature: <+50℃, <+85℃
-
Control mode: Normally open, Normally closed
-
International standard voltage: AC (380, 220, 110, 24) V, DC (220, 110, 24, 12) V
-
Circulating fluid medium: Corrosive fluids (acid, alkali, salt, phenol, formaldehyde, butane, chemical fluids, etc.)
-
Circulating fluid temperature: <-40℃, <+60℃, <+120℃, <+200℃
Annotation:
-
If the fluid contains impurities, a filter valve (30-80 mesh/inch) must be installed at the inlet end of the solenoid valve, and there should be no solidification or crystallization.
-
There is no restriction on the installation position of the solenoid valve. (S-horizontal installation, C-vertical installation)
-
The above parameters are selected according to the requirements of the working conditions.
