Pneumatic Ceramic Ball Valve

The Pneumatic Ceramic Ball Valve is a high-performance industrial valve engineered for harsh working environments where conventional metal valves fail to meet durability and corrosion resistance requirements. Its trim components—including the ball, seat, and sleeve—are fabricated from high-purity alumina or zirconia ceramic, which boasts a hardness of HRC88 (second only to diamond) and exceptional chemical stability. Driven by a pneumatic actuator, this valve delivers rapid, reliable on/off control for abrasive, corrosive, or high-erosion media such as slurry, sand-laden fluids, and acidic/alkaline solutions. It is widely deployed in industries including power generation, petroleum refining, chemical processing, metallurgy, mining, and wastewater treatment, providing a long-lasting solution for critical pipeline systems.

Ⅰ. Product Introduction

The Pneumatic Ceramic Ball Valve is a high-performance industrial valve engineered for harsh working environments where conventional metal valves fail to meet durability and corrosion resistance requirements. Its trim components—including the ball, seat, and sleeve—are fabricated from high-purity alumina or zirconia ceramic, which boasts a hardness of HRC88 (second only to diamond) and exceptional chemical stability.

Driven by a pneumatic actuator, this valve delivers rapid, reliable on/off control for abrasive, corrosive, or high-erosion media such as slurry, sand-laden fluids, and acidic/alkaline solutions. It is widely deployed in industries including power generation, petroleum refining, chemical processing, metallurgy, mining, and wastewater treatment, providing a long-lasting solution for critical pipeline systems.

Ⅱ. Product Features

Superior Wear & Corrosion Resistance

The alumina/zirconia ceramic trim offers extreme hardness and chemical inertness, outperforming metal valves in abrasive and corrosive media. It resists erosion, galling, and oxidation, ensuring a service life 2–4 times longer than titanium alloy or Monel valves.
Precision Sealing & Low Torque

The ceramic ball is precision-ground to ultra-high roundness, and the self-lubricating properties of ceramic ensure a tight, low-friction seal. This eliminates common issues with metal hard-seal valves, such as high operating torque and seal surface corrosion.
Fast & Reliable Pneumatic Actuation

The pneumatic actuator enables quick opening/closing cycles, making the valve ideal for automated process control systems. It integrates easily with PLCs and other control equipment to ensure efficient pipeline operation.
Excellent Thermal & Electrical Insulation

Ceramic components provide natural heat-shielding and electrical insulation, protecting the valve from thermal shock and static buildup in demanding applications.
Cost-Effective Long-Term Operation

The extended lifespan and reduced maintenance requirements lower total cost of ownership, minimizing downtime and replacement expenses in critical industrial processes.
Broad Industry Compliance

Designed and manufactured to meet international standards including GB, JIS, and API, ensuring compatibility with global pipeline systems and regulatory requirements.

Ⅲ. Technical Data

Key Performance Specifications

Parameter	Specification
Trim Material	Alumina Ceramic / Zirconia Ceramic
Nominal Pressure	PN10 – PN40
Applicable Temperature	≤ 200℃
Applicable Medium	High-hardness granular media, erosive slurries, corrosive fluids
Design Standards	GB, JIS, API

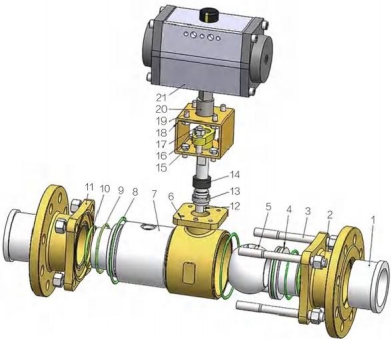

Component Material List

No.	Part Name	Material
01	Flange Sleeve	Structural Ceramic
02	Bolt	A193 B7/B8
03	Nut	A194 2H/8
04	Seat	Structural Ceramic
05	Ball	Structural Ceramic
06	Middle Body	WCB/CF8
07	Middle Body Sleeve	Structural Ceramic
08	O-ring	Nitrile Rubber / Viton
09	Bonnet	WCB/CF8
10	Stem	20Cr13/304
11	Stem Support	304
12	Packing	Flexible Graphite
15	Clamping Flange	WCB/CF8
16	Clamping Flange Nut	A194 2H/8
17	Yoke	Q235
18	Yoke Bolt	Q235
19	Coupling Shaft	25
20	Pneumatic Actuator	Assembly

Ⅳ．The main shape and connection size、

				PN10(1.0MPa)					PN16(1.6MPa)
DN	L	D	D1	D2 B	f	Z-d	D	D1	D2 B	f	Z-d
15	130	95	65	45 16	2	4-14	95	65	45 16	2	4-14
20	130	105	75	58 18	2	4-14	105	75	58 18	2	4-14
25	140	115	85	68 18	2	4-14	115	85	68 18	2	4-14
32	165	140	100	78 18	2	4-18	140	100	78 18	2	4-18
40	165	150	110	88 18	3	4-18	150	110	88 18	3	4-18
50	203	165	125	102 18	3	4-18	165	125	102 18	3	4-18
65	220	185	145	122 18	3	8-18	185	145	122 18	3	8-18
80	241	200	160	138 20	3	8-18	200	160	138 20	3	8-18
100	305	220	180	158 20	3	8-18	220	180	158 20	3	8-18
125	356	250	210	188 22	3	8-18	250	210	188 22	3	8-18
150	394	285	240	212 22	3	8-22	285	240	212 22	3	8-22
200	457	340	295	268 24	3	8-22	340	295	268 24	4	12-22
250	533	395	350	320 26	3	12-22	405	355	320 26	4	12-26
300	610	445	400	370 26	4	12-22	460	410	378 28	4	12-26
