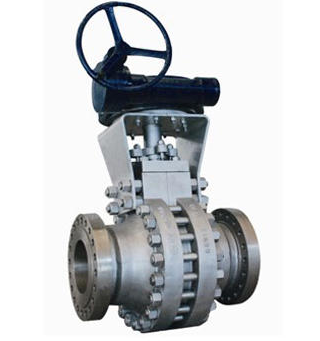

一.Product Introduction
The special slag-locking valve for coal chemical industry has attracted much attention from the industry because of its critical location, high technical requirements and expensive cost. It can be used under very harsh working conditions.Coal chemical industry and coal-to-oil projects must first be coal gasified. The slag-locking valve of the coal gasification device is used for the discharge of cinder after coal gasification. The conditions of the coal gasification device are very demanding. Coal-to-oil, coal-to-oil, coal gasification and other coal chemical projects have very strict requirements for valves, which require valves to have functions such as high wear resistance and scouring resistance, anti-fouling, anti-scarring, and rapid cutting.Due to the high requirements of working conditions, the technical requirements for valves for coal chemical industry are very difficult.
二.Product Features
- The sealing specific pressure is high;
- The surface hardness of the sphere is high;
- The binding strength of the spray welding layer is high;
- The self-cleaning function;
- The processing is difficult.
三.Technical data
| Size | NPS 3～NPS 24 |
| Operating temperature | -46℃～593℃ |
| Seal type | Metal to Metal |
| Operating pressure | CLASS 150～CLASS 900 |
| material | WCB、LCB、CF8、CF8M. etc. |
| standard | API 608、ISO 17292、BS 5351 |
| Face to face | ASME B16.10 |
| Connection end | ASME B16.5 |
| Test standard | API 598、ISO 5208 |
| Operation | worm wheel wheel, electric, pneumatic |
| Application fields | chemical industry |
