Q341F/Y worm drive ball valve

一.Product Introduction

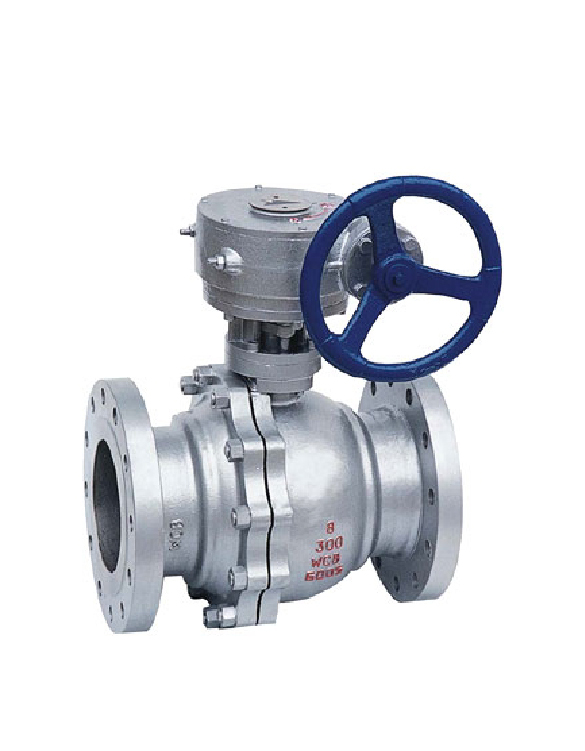

Q341F, Q341Y type PN16~PN40 worm drive ball valve: worm drive, flange connection, floating ball straight-through structure, seat sealing surface material is PTFE, reinforced PTFE plastic (Q341F), metal surfacing cobalt base (Q341Y), nominal pressure PN16~PN40, valve body material is WCB, CF8, CF8M ball valve.
二.Product Features

• Transmission & Connection: Adopts worm drive for easy operation, even with large-caliber valves. Uses flange connection for convenient installation and reliable sealing, suitable for medium and high-pressure pipeline systems.
• Sealing & Temperature Resistance:
  • Q341F (PTFE/Reinforced PTFE sealing): Suitable for clean media at ≤180℃, with excellent chemical resistance.
  • Q341Y (Cobalt-based metal surfacing sealing): For high-temperature (up to 450℃) and granular media, with good wear and impact resistance.
• Material & Pressure Rating:
  • Body materials: WCB (carbon steel), CF8 (304 stainless steel), CF8M (316 stainless steel) for different corrosion resistance needs.
  • Pressure range: PN16 (1.6MPa), PN25 (2.5MPa), PN40 (4.0MPa), meeting various pressure requirements.
• Wide Parameter Coverage: Fits pipe diameters from DN100 to DN300. Compatible with various media like water, gas, oil, nitric acid, and granular fluids.
• Structure & Performance: Floating ball straight-through structure ensures low flow resistance and stable sealing.

三.Technical data

四.The main shape and connection size

The main shape and structure dimensions of Q341F and Q341Y PN16 worm drive ball valve (mm)

The main shape and structure dimensions of Q341F and Q341Y PN25 worm drive ball valve (mm)

The main shape and structure dimensions of Q341F and Q341Y PN40 worm drive ball valve (mm)
