一．Product Introduction
The Resilient Seat V notch Ball Control Valve is a sophisticated control valve designed for precise flow regulation, throttling, and on-off control in various industrial applications. It integrates the advantages of a ball valve’s structural simplicity and a V-notch design’s excellent flow control performance, along with a resilient seat for reliable sealing. This valve is widely used in industries such as petrochemical, water treatment, pharmaceutical, and food processing, where accurate flow control and tight shut-off are essential. It can handle a variety of media, including liquids, gases, and even some slurries, making it a versatile choice for process control systems.
二．Product Features
- Precise Flow Control: The V-notch design of the ball enables precise throttling and control of flow rates. It provides a linear or equal percentage flow characteristic, depending on the notch design, allowing for accurate adjustment of media flow.
- Reliable Sealing: Equipped with a resilient seat, the valve offers excellent sealing performance, ensuring minimal leakage even under low-pressure conditions. The seat material is selected for its durability and compatibility with different media.
- Robust Construction: The valve body and ball are typically made from high-quality materials such as cast steel, stainless steel, or special alloys, ensuring resistance to corrosion, wear, and high pressures/temperatures, thus extending the service life.
- Wide Media Compatibility: It can handle various media, including corrosive, viscous, and particulate-containing fluids, due to the adaptable seat and ball materials.

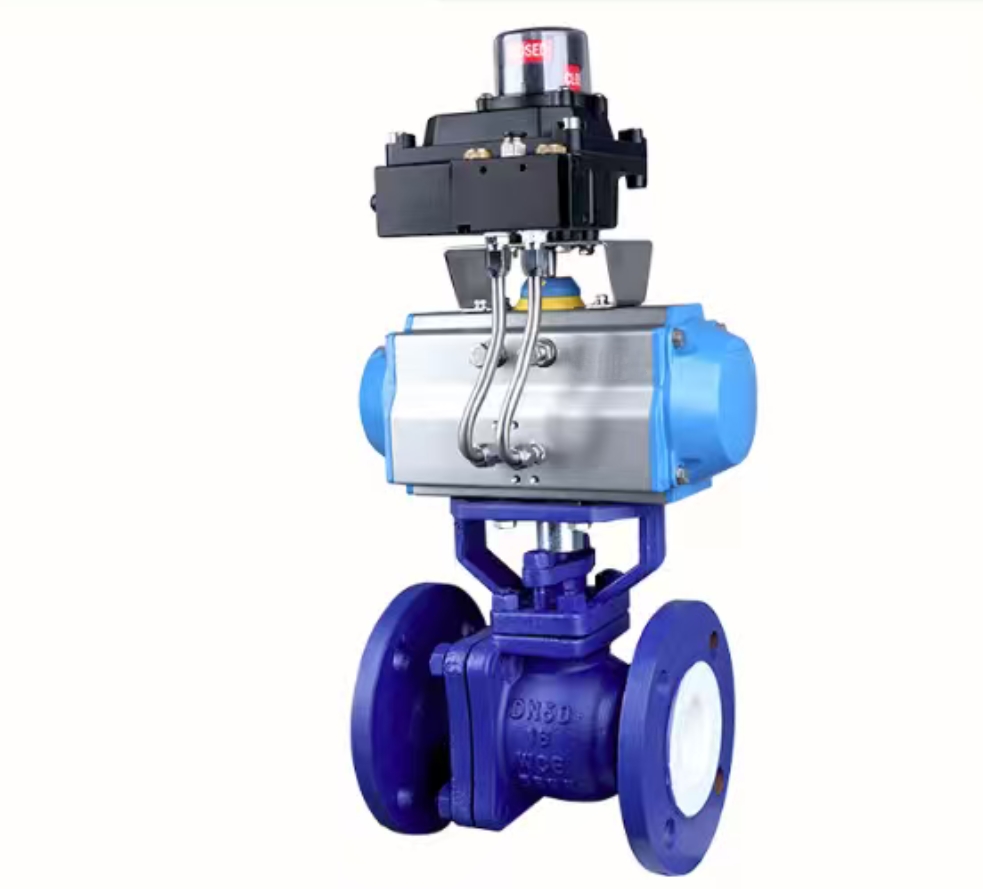

- Actuation Options: Compatible with multiple actuation systems, such as pneumatic (as shown in the image), electric, or hydraulic actuators, allowing integration into different automated control systems for remote and precise operation.
- Low Flow Resistance: The streamlined design of the valve ensures low pressure drop, which helps in energy conservation and efficient media transport.
- Easy Maintenance: Its simple structure allows for easy disassembly and maintenance, reducing downtime and operational costs.
三．Technical data
- Size Range: Typically from DN15 to DN300 (or ½” to 12”) to accommodate different pipeline requirements.
- Pressure Rating: Commonly PN10 to PN40, ANSI Class 150 to Class 300, suitable for both low and medium-pressure applications.
- Temperature Range: Depending on the material, it can handle temperatures from -20℃ to 200℃ (or wider ranges with special material selections).
- Flow Characteristic: Linear or Equal Percentage, based on the V-notch configuration, to meet different process control needs.
- Seat Leakage Class: Meets international standards such as ANSI/FCI 70-2 Class V or VI, ensuring minimal leakage.
- Actuator Type: Pneumatic (double-acting or spring-return), electric, or hydraulic, with various control signal options (4-20mA, 0-10V, etc.).
- Material Options:
- Body: Cast Iron, Cast Steel, Stainless Steel (304, 316, etc.)
- Ball: Stainless Steel, Hardened Alloy
- Seat: Resilient Materials like PTFE, NBR, EPDM, tailored for media compatibility.
- Connection Type: Flanged (as shown in the image), threaded, or welded, conforming to standards like ANSI, DIN, JIS, etc.
