一．Product Introduction
The V Notch Ball Valve is a specialized control valve engineered for accurate flow regulation and efficient on-off operations in industrial piping systems. Characterized by a V-shaped notch in its ball component, this valve is adept at handling a wide spectrum of media, including liquids, gases, and even abrasive slurries. It finds extensive application in industries such as petrochemicals, water treatment, power generation, and fine chemicals, where precise flow control and robust performance under demanding conditions are paramount.
Constructed to deliver consistent performance, the V Notch Ball Valve combines the advantages of ball valves and control valves. Its unique V-notch design enables it to achieve linear or equal percentage flow characteristics, making it a reliable choice for processes that require meticulous flow modulation. Whether it’s regulating the flow of corrosive chemicals or managing the pressure in power plant pipelines, this valve stands out for its versatility and durability.
二．Product Features
- Precision Flow Control: The V-shaped notch in the ball allows for precise throttling, enabling linear or equal percentage flow profiles that are essential for accurate process control.
- Abrasion Resistance: Ideal for handling abrasive media like slurries, the V-notch design and robust construction minimize wear and tear, ensuring a longer service life.
- High Sealing Integrity: Delivers reliable sealing performance even under high-pressure conditions, reducing the risk of leaks and enhancing operational safety.
- Corrosion Resistance: Available in materials such as stainless steel (304, 316, 316L) and special alloys, it can withstand corrosive environments commonly found in chemical and petrochemical industries.

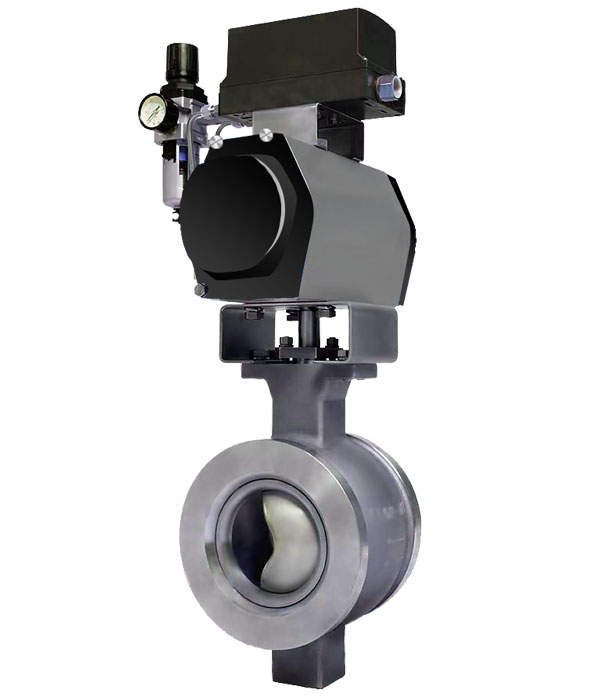

- Versatile Actuation: Can be equipped with pneumatic actuators (as depicted in the figure), electric actuators, hydraulic actuators, or manual operation, catering to different automation and operational needs.
- Easy Maintenance: Modular design facilitates straightforward disassembly, inspection, and repair, reducing downtime and maintenance costs.
三．Technical Data
- Size Range: DN15 – DN200 (or 1/2″ – 8″)
- Pressure Rating: PN16 – PN100, Class 150 – Class 600
- Temperature Range: -20℃ – 200℃ (with special materials, the range can be extended to -40℃ or higher)
- Material Options:
- Body: Stainless steel (304, 316, 316L), carbon steel, alloy steel
- Ball/Seat: Stainless steel, hard alloy, PTFE, rubber
- Actuation Types: Pneumatic, electric, hydraulic, manual
- Sealing Class: ANSI Class VI, ISO Class A
- Connection Type: Flange (complying with ANSI, DIN, JIS, GB standards), threaded, or welded
- Flow Coefficient (Cv): Ranges from 10 to 4000+ depending on size and notch design
- Media Compatibility: Water, oil, gas, corrosive chemicals, abrasive slurries, and more
