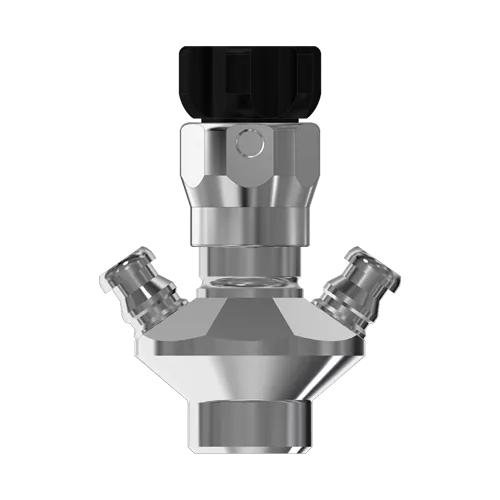

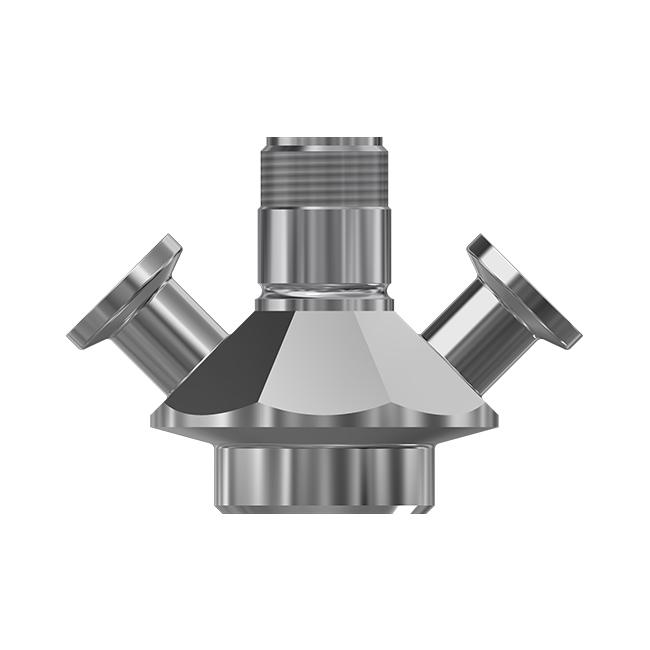

Sanitary Tri-Clamp Sampling Valve
The Sanitary Tri-Clamp Sampling Valve is designed for hygienic sampling from tanks, vessels, and process pipelines. Its sanitary clamp connection provides quick installation and removal, making the valve suitable for processing systems where frequent cleaning, inspection, and maintenance are required.
The valve uses a hygienic membrane sealing design to separate the process medium from the operating mechanism. Samples can be collected during production without dismantling the process line, while the sampling area can be cleaned or sterilized according to process requirements.
一、Product Overview
1.1 Main Function
The Sanitary Tri-Clamp Sampling Valve is used to collect representative samples from hygienic tanks and process pipelines for:
- Quality Control
- Laboratory Analysis
- Microbiological Testing
- Process Monitoring
- Product Inspection
1.2 Hygienic Design
The valve uses a compact stainless steel body with a sanitary sampling passage.
A membrane sealing element isolates the product-contact area from the operating mechanism, helping reduce contamination risk during sampling.
1.3 Tri-Clamp Connection
The sanitary clamp connection allows the valve to be installed and removed without complicated threaded or bolted connections.
This makes inspection, cleaning, and maintenance more convenient.
二、Product Features
2.1 Sanitary Clamp Connection
The Tri-Clamp design provides fast assembly and disassembly and is widely used in hygienic processing equipment.
2.2 Stainless Steel Construction
Product-contact components can be manufactured from SS316L stainless steel for corrosion resistance and hygienic processing applications.
2.3 Membrane Sealing
The membrane acts as a hygienic sealing element between the process medium and valve operating mechanism.
2.4 Sterilizable Design
Depending on configuration, the sampling chamber can be sterilized using steam or alcohol before and after sampling.
2.5 Easy Cleaning
Smooth product-contact surfaces and removable sanitary connections simplify cleaning and inspection.
2.6 Flexible Operation
Manual and pneumatic operating configurations can be supplied according to process requirements.
三、Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Sanitary Tri-Clamp Sampling Valve |
| Product Contact Material | SS316L |
| Optional Material | SS304 |
| Seal / Membrane | EPDM / Silicone / PTFE |
| Connection | Sanitary Tri-Clamp |
| Operation | Manual / Pneumatic |
| Installation | Tank / Vessel / Pipeline |
| Sterilization | Steam / Alcohol |
| Application | Hygienic Process Sampling |
The exact pressure, temperature, size, and membrane configuration should be selected according to the final valve specification and process conditions.
A verified manufacturer reference for this type of sanitary sample valve lists SS304/SS316L construction, clamp/weld/thread connections, PTFE/EPDM/silicone sealing options, manual or pneumatic operation, and sterilization using alcohol or steam.
四、Working Principle
4.1 Closed Position
When the valve is closed, the membrane seals the sampling passage and isolates the process medium from the outlet.
4.2 Opening
The operator opens the valve manually or activates the pneumatic actuator.
The valve stem and membrane move away from the sealing position, allowing product to enter the sampling passage.
4.3 Sampling
A controlled amount of process medium flows through the sampling outlet into the sample container.
4.4 Closing
After collecting the required sample, the valve is returned to the closed position.
4.5 Cleaning and Sterilization
The sampling passage can then be cleaned or sterilized according to the hygiene requirements of the process.
五、Applications
5.1 Food Processing
Suitable for hygienic tanks and process lines used for liquid food production.
5.2 Beverage Production
Suitable for sampling in beverage, juice, brewery, and similar liquid processing systems.
5.3 Dairy Processing
Can be installed on milk tanks and other hygienic dairy processing equipment.
5.4 Pharmaceutical Processing
Suitable configurations can be used where controlled hygienic sampling is required.
5.5 Other Hygienic Processes
The valve can also be applied in cosmetic, chemical, biotechnology, and other compatible hygienic fluid systems. Manufacturer references specifically identify food, beverage, dairy, pharmaceutical, chemical, and related processing applications.
六、Available Configurations
6.1 Body Material
- SS304
- SS316L
6.2 Membrane Options
- EPDM
- Silicone
- PTFE
6.3 Operation Options
- Manual Operation
- Pneumatic Operation
6.4 Installation Options
- Tank Mounted
- Vessel Mounted
- Pipeline Mounted
6.5 Connection Options
Depending on the selected version, the product family can also be supplied with:
- Tri-Clamp
- Weld
- Thread
七、Advantages
7.1 Quick Installation
The sanitary clamp connection enables convenient installation and removal.
7.2 Easy Maintenance
The valve can be removed from the process connection relatively quickly for inspection or maintenance.
7.3 Hygienic Sampling
The membrane sealing design helps separate the sampling medium from external operating components.
7.4 Flexible Configuration
Different body materials, membranes, connections, and operating methods can be selected.
7.5 Suitable for Repeated Sampling
The valve can be used for routine process monitoring and quality-control sampling.
八、How to Select
8.1 Select the Material
Choose SS304 or SS316L according to product compatibility and corrosion requirements.
8.2 Select the Membrane
Choose EPDM, silicone, or PTFE according to temperature, chemical compatibility, and sterilization requirements.
8.3 Confirm Clamp Size
The Tri-Clamp connection must match the existing tank or pipeline connection.
8.4 Select the Operation Method
Manual operation is suitable for occasional sampling, while pneumatic operation is more suitable for automated or frequent sampling.
8.5 Confirm Sterilization Requirements
Determine whether steam, alcohol, CIP, or another cleaning procedure will be used.
九、Maintenance
9.1 Inspect the Membrane
Check the membrane periodically for wear, cracking, or deformation.
9.2 Inspect the Clamp Connection
Make sure the clamp and gasket are correctly installed before operation.
9.3 Clean the Sampling Passage
Clean product-contact areas according to process hygiene requirements.
9.4 Replace Worn Components
Replace seals and membranes when signs of deterioration or leakage are detected.
十、FAQ
10.1 What is a Sanitary Tri-Clamp Sampling Valve?
It is a hygienic sampling valve equipped with a sanitary clamp process connection for quick installation and removal.
10.2 Where can it be installed?
It can be installed on tanks, vessels, and process pipelines.
10.3 Is SS316L available?
Yes. SS316L is commonly available for product-contact components in this type of sampling valve.
10.4 What membrane materials are available?
Common options include EPDM, silicone, and PTFE.
10.5 Can the valve be sterilized?
Depending on configuration, the sampling area can be sterilized using steam or alcohol.
10.6 Is pneumatic operation available?
Yes. Both manual and pneumatic configurations are available for this type of sanitary sampling valve.
