The Sterilizable Sampling Valve is designed for hygienic and controlled sampling from tanks, vessels, and process pipelines. It allows the sampling chamber to be sterilized before or after sample collection using flame, circulating cleaning media, or steam injection.
Its compact and modular construction makes it suitable for food, beverage, pharmaceutical, cosmetic, and other hygienic processing applications where contamination control is important.
一、Product Overview
1.1 Main Function
The Sterilizable Sampling Valve is used to collect representative samples from process equipment while helping maintain hygienic conditions around the sampling point.
Typical purposes include:
- Quality control
- Microbiological testing
- Laboratory analysis
- Process monitoring
- Product verification
1.2 Sterilizable Sampling Design
The main advantage of this valve is the ability to sterilize the sampling passage.
Depending on configuration, sterilization can be performed by:
- Flame sterilization
- Steam injection
- Circulation of cleaning media
This provides greater flexibility for different plant hygiene procedures.
1.3 Compact Modular Construction
The valve is designed as a compact sampling unit that can be adapted to different tank and pipeline installations.
Multiple process connections are available, making it suitable for both new equipment and existing hygienic systems.
二、Product Features
2.1 Multiple Sterilization Methods
The valve can be configured for flame sterilization or for sterilization using steam or cleaning liquids.
2.2 Hygienic Construction
A one-piece machined body helps provide a smooth and uniform internal surface while reducing rough weld areas around the outlet.
2.3 Manual or Automatic Operation
Manual and pneumatic versions are available.
Manual versions can use:
- Stainless steel handle
- Plastic handle
- Colored handle options
Automatic versions can be equipped with a compact normally closed actuator.
2.4 Multiple Connection Options
Available connections include:
- Wall weld
- Pipeline weld
- Male threaded connection
- Clamp
- Mini-Clamp
- Micro-Clamp
This makes the valve adaptable to a wide range of hygienic installations.
2.5 Different Seal Options
Various seal combinations are available for different media and operating requirements.
These include configurations based on:
- PFA / EPDM
- PFA / FKM
- EPDM
- FKM
- VMQ
三、Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Sterilizable Sampling Valve |
| Nominal Sizes | DN 6/8, DN 10/12, DN 16/18 |
| Body Construction | One-piece machined stainless steel body |
| Operation | Manual / Pneumatic |
| Sterilization | Flame / Steam / Cleaning Media |
| Connections | Wall Weld / Pipe Weld / Thread / Clamp / Mini-Clamp / Micro-Clamp |
| Seal Options | PFA/EPDM, PFA/FKM, EPDM, FKM, VMQ |
| Installation | Tank / Vessel / Pipeline |
| Application | Hygienic Process Sampling |
The verified manufacturer range lists DN 6/8, 10/12 and 16/18 together with six different connection options.
四、Working Principle
4.1 Closed Position
When the valve is closed, the sampling passage is isolated from the process medium.
4.2 Sterilization Before Sampling
Before collecting a sample, the sampling passage can be sterilized according to the installed configuration.
For a single-outlet version, flame sterilization may be used.
For a two-outlet version, steam or cleaning media can circulate through the sampling area.
4.3 Sampling
The operator opens the valve manually or activates the pneumatic actuator.
Product then enters the sampling outlet and can be collected in a suitable sample container.
4.4 Closing
After the required quantity has been collected, the valve is closed.
4.5 Post-Sampling Cleaning
The sampling area can then be cleaned or sterilized again to prepare the valve for the next sampling cycle.
五、Applications
5.1 Food Processing
Suitable for hygienic sampling from food production tanks and processing lines.
5.2 Pharmaceutical Processing
Suitable for applications where controlled sampling and cleaning are important.
5.3 Cosmetics
Can be used for hygienic sampling of cosmetic liquids and process mixtures.
5.4 Baby Food Processing
Suitable for production systems requiring careful hygiene control.
5.5 Cleaning Products
Can also be configured for compatible cleaning-product processing applications.
The manufacturer specifically identifies food, pharmaceutical, cosmetics, baby food, pet food and cleaning-product industries among the application areas.
六、Available Configurations
6.1 Manual Version
Suitable for occasional sampling and simple installations.
6.2 Pneumatic Version
Suitable for automated sampling systems.
6.3 Single-Outlet Version
Designed for flame sterilization.

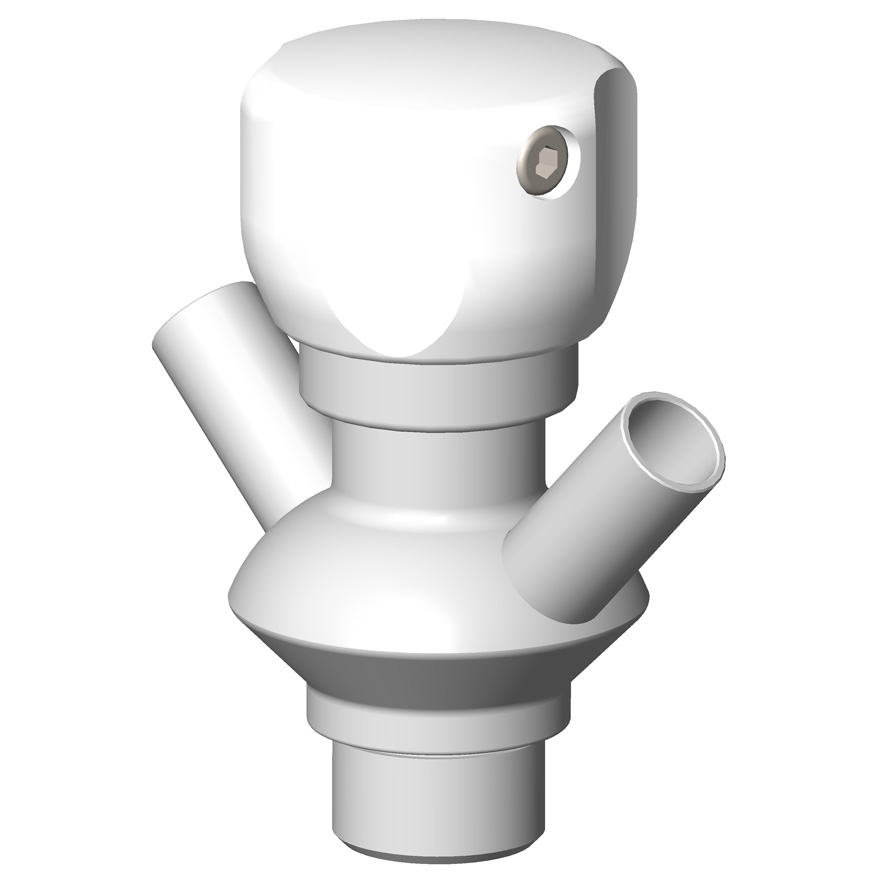

6.4 Double-Outlet Version
Designed for steam injection or circulation of cleaning media.
6.5 Connection Options
Available with:
- Welded tank connection
- Pipeline weld connection
- Clamp
- Mini-Clamp
- Micro-Clamp
- Threaded connection
七、Advantages
7.1 Improved Sampling Hygiene
The sterilizable sampling passage helps reduce contamination risk.
7.2 Flexible Sterilization
Users can select flame, steam, or cleaning-media sterilization according to their process.
7.3 Compact Installation
The small valve body is suitable for tanks and pipelines where installation space is limited.
7.4 Multiple Connection Types
A wide range of process connections simplifies integration.
7.5 Manual and Automatic Options
The same basic product family can support both manually operated and automated production systems.
7.6 Suitable for Different Media
Multiple seal materials provide flexibility for different products and cleaning conditions.
八、How to Select
8.1 Choose the Sterilization Method
First determine whether the process requires:
- Flame sterilization
- Steam sterilization
- Cleaning-media circulation
8.2 Select the Connection
Choose the connection according to the existing tank or pipeline design.
8.3 Choose Manual or Pneumatic Operation
Manual operation is suitable for occasional sampling.
Pneumatic operation is more suitable for frequent, automated, or remotely controlled sampling.
8.4 Select the Seal Material
Seal material should be selected according to:
- Product chemistry
- Cleaning chemicals
- Temperature
- Hygiene requirements
8.5 Confirm Nominal Size
Available reference sizes include:
- DN 6/8
- DN 10/12
- DN 16/18
九、Maintenance
9.1 Clean the Sampling Passage
The sampling passage should be cleaned according to the plant sanitation procedure.
9.2 Inspect Sealing Components
Regularly check seals for:
- Wear
- Cracking
- Hardening
- Deformation
9.3 Check the Handle or Actuator
Manual handles should move smoothly.
Pneumatic actuators should be checked for correct opening and closing.
9.4 Inspect Connections
Clamp, welded, and threaded interfaces should be checked periodically for leakage or damage.
十、FAQ
10.1 What is a Sterilizable Sampling Valve?
It is a hygienic sampling valve designed so the sampling path can be sterilized before or after taking a sample.
10.2 What sterilization methods are available?
Depending on the configuration, flame, steam injection, or circulating cleaning media can be used.
10.3 Is pneumatic operation available?
Yes. Both manual and automatic pneumatic versions are available.
10.4 Can it be installed on a tank?
Yes. Wall-welded configurations are available for tank installation.
10.5 Can it be installed on pipelines?
Yes. Pipeline-welded, clamp, mini-clamp, micro-clamp and threaded options are available.
