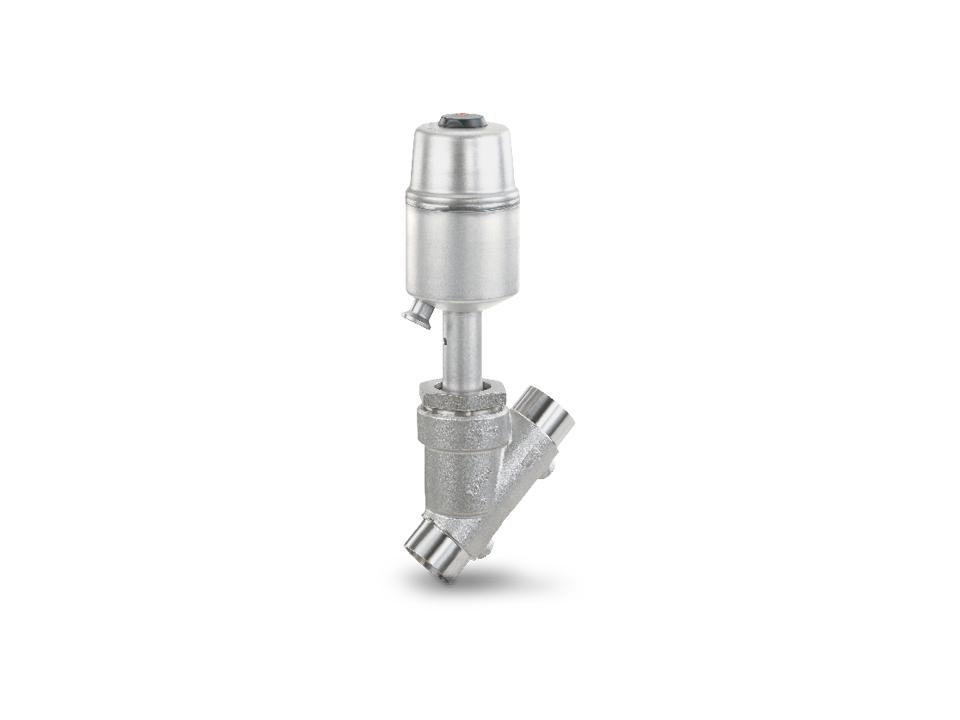

The Pneumatic Angle Seat Valve is a compact and high-performance shut-off valve designed for fast and reliable control of liquid, gas, steam and other process media. Its angled flow path helps reduce flow resistance and provides a high flow capacity compared with conventional globe valve designs.
The valve is operated by a pneumatic piston actuator, providing fast opening and closing response for automated process systems. A stainless steel valve body offers excellent corrosion resistance and durability, making the valve suitable for demanding industrial environments.
Depending on the application, the valve can be supplied with different connection options such as threaded, welded, flanged or sanitary clamp ends. PTFE or metal seat options can also be selected according to operating temperature, pressure and media requirements.
Features
- Pneumatic piston actuator for fast and reliable operation
- Compact angle-seat design with high flow capacity
- Stainless steel valve body for corrosion resistance
- Suitable for liquids, gases, steam and viscous media
- Low-maintenance stem sealing structure
- PTFE or metal seat options available
- Threaded, welded, flanged and clamp connections available
- Normally closed, normally open or double-acting configurations can be supplied
- Suitable for automated shut-off and flow control applications
Typical Applications
Pneumatic angle seat valves are widely used in:
- Steam and condensate systems
- Industrial water treatment
- Food and beverage processing
- Pharmaceutical processing equipment
- Chemical processing
- Filling and packaging machinery
- CIP and cleaning systems
- Compressed air and gas systems
- General industrial process control
Technical Data
| Parameter | Specification |
|---|---|
| Product Type | Pneumatic Angle Seat Valve |
| Valve Design | 2/2 Way Angle Seat |
| Body Material | Stainless Steel 304 / 316 / 316L |
| Seat Material | PTFE / Metal |
| Operation | Pneumatic |
| Connection | Thread / Weld / Clamp / Flange |
| Nominal Size | According to model |
| Working Pressure | Up to 25 bar* |
| Media Temperature | Up to 210°C* |
| Applicable Media | Water, Steam, Gas, Oil and Process Fluids |
| Control Function | Normally Closed / Normally Open / Double Acting |
*Maximum pressure and temperature depend on valve size, body material, seat material and connection configuration.
Product Description
With its high-flow angle seat construction and durable pneumatic actuator, this valve provides a reliable solution for frequent switching and automated process control. The streamlined internal flow path minimizes pressure loss, while the robust stainless steel construction ensures long service life under demanding operating conditions.
Multiple sizes, connection standards and actuator configurations are available to meet different piping and process requirements.
