â… ï¼ŽProduct Introduction

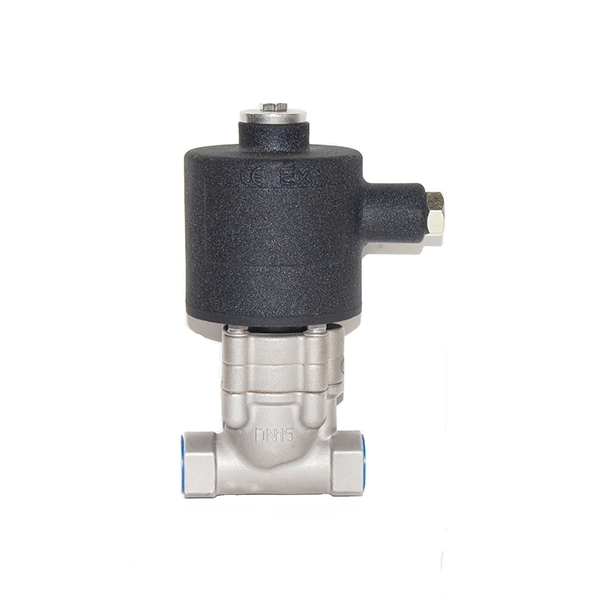

The waterproof solenoid valve is a high-performance control component designed for fluid control in various environments, especially those involving moisture, water immersion, or harsh working conditions. It integrates advanced patented technology to realize precise and reliable on-off control of fluids, ensuring stable operation even in complex scenarios such as underwater use. With its excellent sealing performance and wide adaptability, this product has been widely applied in multiple industries, playing a crucial role in optimizing fluid control systems, improving operation efficiency, and ensuring operational safety.
This valve is engineered to handle a variety of fluids, including common media like water, gas, and oil, as well as special fluids such as ultra-low temperature, ultra-high temperature, corrosive, flammable, and explosive fluids. Its flexible installation methods and broad parameter range allow it to meet the customized needs of different working conditions, making it a versatile solution for fluid control in both industrial and civil fields.
Ⅱ．Product Features
-
Patented Core Technology: Adopts proprietary patented technology, which effectively enhances the overall performance and reliability of the valve, distinguishing it from conventional solenoid valves in terms of stability and durability.
-
Sensitive Switch Response: Features a highly sensitive switching mechanism that enables rapid on-off control of fluids, reducing response time and improving the efficiency of the entire fluid control system.
-
Excellent Sealing Performance: Equipped with advanced sealing structures to achieve zero leakage, preventing fluid loss and environmental pollution, and ensuring safe operation even in high-pressure or corrosive fluid environments.
-
Stable and Reliable Operation: Undergoes rigorous testing to ensure stable performance in extreme working conditions. The valve acts reliably with consistent performance, minimizing downtime and maintenance costs.
-
Underwater Safety Protection: Designed with special anti-burning technology for the coil, ensuring that the coil will never burn when used underwater, which greatly expands its application scope in wet and underwater environments.
-
Wide Adaptability: Compatible with a wide range of fluids, temperatures, pressures, and installation modes, capable of adapting to diverse working conditions from general to harsh environments.
Ⅲ．Technical Data
|
Technical Item
|
Specifications
|
|---|---|
|
Action mode
|
Pilot type
|
|
Diameter range
|
DN0.1-600mm
|
|
Working environment temperature
|
-30—+80℃; -50—+100℃
|
|
Coil operating temperature
|
<+50℃, <+85℃
|
|
Control mode
|
Normally open, Normally closed
|
|
International standard voltage
|
AC (380, 220, 110, 24) V; DC (220, 110, 24, 12) V
|
|
Circulating fluid medium
|
Water, gas, oil, ultra-low temperature, ultra-high temperature, corrosive, flammable, explosive and other fluids
|
|
Circulating fluid temperature
|
<-40℃, <+60℃, <+120℃
|
|
Circulating fluid pressure
|
1bar, 6bar, 16bar, 25bar, 40bar, 64bar
|
|
Valve body material
|
Stainless steel (304, 316, 316L), cast steel
|
|
Connection method
|
Threaded (internal thread, external thread), flange, welding, clamp, union
|
|
Leakage
|
Zero leakage
|

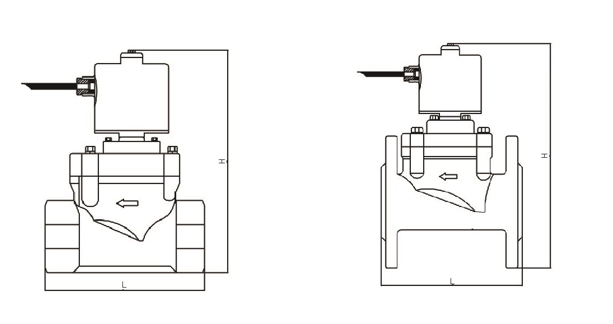

Ⅳ．The main shape and connection size
| Specificati on model | Nominal Diameter |
Inside thread connection | Flange cannection | ||||||
| G | L | H | L | H | φD | φk | N-φD | ||
| DN1 | 1 | G1/8 | 39 | 95 | |||||
| DN2 | 2 | G1/8 G14 | 39 | 95 | |||||
| DN3 | 3 | G1/8 G14 | 39 | 95 | |||||
| DN4 | 4 | G1/8 G14 | 39 | 95 | |||||
| DN5 | 5 | G1/8 G14 | 43 | 115 | |||||
| DN6 | 6 | G1/4 | 43 | 115 | |||||
| DN7 | 7 | G1/4 | 43 | 115 | |||||
| DN8 | 8 | G1/4 | 43 | 115 | |||||
| DN10 | 10 | G3/8 | 72 | 149 | |||||
| DN15 | 15 | G1/2 | 72 | 149 | 98 | 178 | 94 | 65 | 4-φ14 |
| DN20 | 20 | G3/4 | 85 | 186 | 110 | 205 | 103 | 75 | 4-φ14 |
| DN25 | 25 | G1 | 97 | 186 | 118 | 217 | 115 | 85 | 4-φ14 |
| DN32 | 32 | G11/4 | 117 | 196 | 145 | 238 | 135 | 100 | 4-φ18 |
| DN40 | 40 | G11/2 | 128 | 207 | 155 | 253 | 145 | 110 | 4-φ18 |
| DN50 | 50 | G2 | 149 | 222 | 173 | 265 | 160 | 125 | 4-φ18 |
| DN65 | 65 | 216 | 323 | 180 | 145 | 4-φ18 | |||
| DN80 | 80 | 228 | 347 | 195 | 160 | 8-φ18 | |||
| DN100 | 100 | 278 | 383 | 215 | 180 | 8-φ18 | |||
| DN125 | 125 | 400 | 475 | 245 | 210 | 8-φ18 | |||
| DN150 | 150 | 485 | 585 | 280 | 240 | 8-φ18 | |||
| DN200 | 200 | 600 | 645 | 335 | 295 | 12-φ23 | |||
| DN250 | 250 | 650 | 655 | 406 | 350 | 12-φ25 | |||
| DN300 | 300 | 750 | 705 | 460 | 400 | 12-φ25 | |||
| DN350 | 350 | 850 | 845 | 520 | 460 | 16-φ25 | |||
| DN400 | 400 | 950 | 845 | 580 | 515 | 16-φ30 | |||
| DN450 | 450 | 1100 | 1015 | 640 | 565 | 20-φ30 | |||
| DN500 | 500 | 1150 | 1015 | 706 | 620 | 20-φ34 | |||
| DN600 | 600 | 1400 | 1105 | 840 | 725 | 20-φ36 | |||
