â… ï¼ŽProduct Introduction
Ⅱ．Product Features
-
Automated & Efficient Control

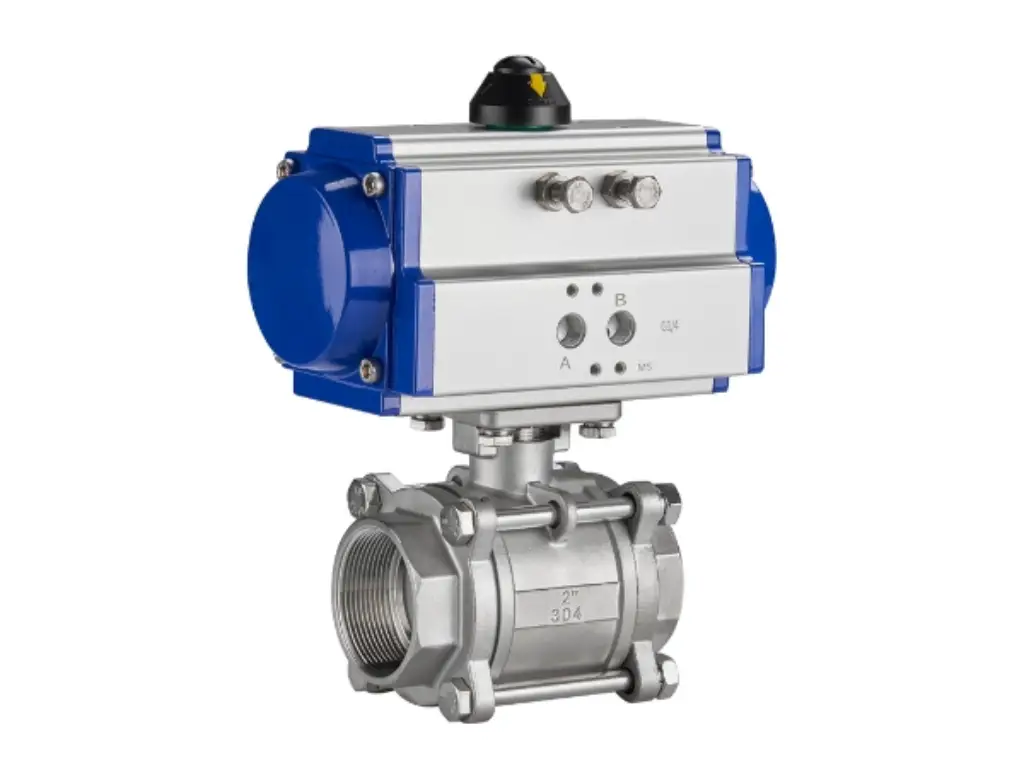

The actuator operated ball valve enables remote, automatic flow control, eliminating the need for manual valve adjustment. The pneumatic actuator delivers rapid 90° rotation, ensuring quick opening/closing and minimal pressure loss.
-
Durable & Leak-Proof Structure
Constructed from 304/316 stainless steel, the actuator operated ball valve offers excellent resistance to corrosion and wear. Its floating or trunnion-mounted ball design ensures a tight seal, providing reliable zero-leakage performance even under high pressure.
-
Versatile Installation & Operation
The actuator operated ball valve supports multiple connection types, including threaded, flanged, and welded, to adapt to different pipeline systems. It is compatible with double-acting and spring-return actuator configurations for fail-safe operation.
-
Low Maintenance & Long Service Life
The streamlined internal structure of the actuator operated ball valve reduces fluid turbulence and sediment accumulation. This minimizes wear on internal components, lowering maintenance requirements and extending the valve’s service life.
-
Safety & Reliability
The actuator operated ball valve is designed with explosion-proof options and position feedback sensors, ensuring safe operation in hazardous environments. Its robust construction can withstand harsh conditions, including high temperatures and pressures.
Ⅲ．Technical Data
| Parameter | Specification |
|---|---|
| Valve Body Material | 304 Stainless Steel, 316 Stainless Steel |
| Ball & Seat Material | PTFE, PEEK, NBR (depending on medium) |
| Actuator Type | Pneumatic Double-Acting / Spring-Return |
| Operating Pressure | 1.6 MPa ~ 6.4 MPa (PN16 ~ PN64) |
| Operating Temperature | -20℃ ~ 180℃ (varies by seat material) |
| Connection Type | Threaded (NPT/BSP), Flanged (ANSI/DIN), Welded |
| Control Signal | 4~20 mA (for regulating models), 24V DC/AC (for on/off models) |
| Response Time | ≤ 1 second (for 90° rotation) |
| Flow Characteristic | Quick-opening |
| Protection Class | IP65 (standard), IP67 (optional) |
| Explosion Protection | Ex d II BT4 (optional) |
Ⅳ．The main shape and connection size
