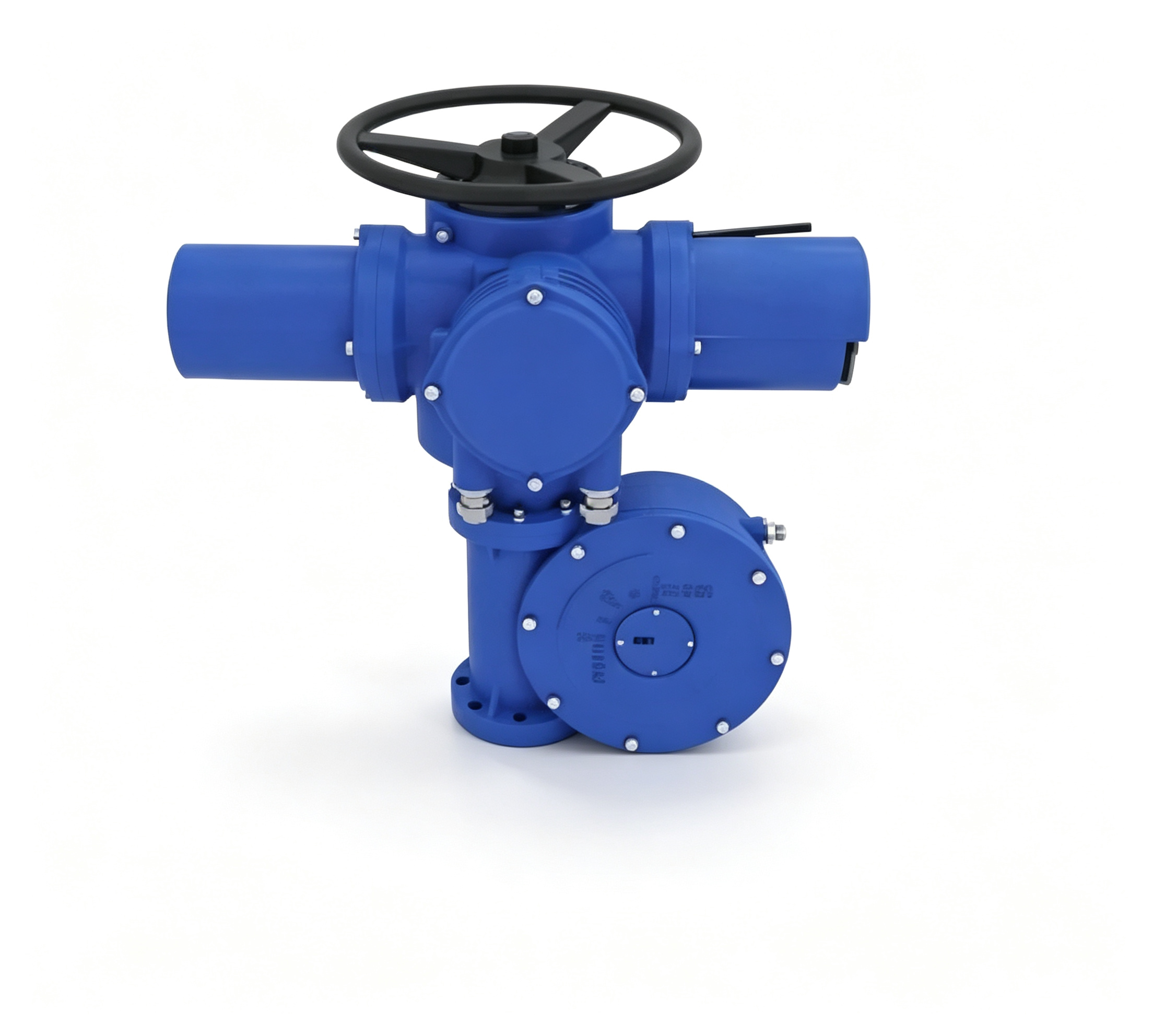

WyeQ+BW Quarter-turn Electric Actuator
一、Product Overview
1.1 Short Description
The WyeQ+BW Quarter-turn Electric Actuator combines a WyeQ multi-turn electric actuator with a BW gearbox to provide high-torque 90-degree rotary operation.
It is designed for ball valves, butterfly valves, plug valves, dampers and other quarter-turn valve applications requiring higher output torque.
1.2 Product Overview
The WyeQ+BW series provides a high-torque electric actuation solution for industrial quarter-turn valves.
By combining the intelligent WyeQ electric actuator with a BW reduction gearbox, the series converts multi-turn actuator output into quarter-turn valve movement while increasing available output torque.
The product range includes eight actuator and gearbox combinations, covering output torque from 1000 Nm to 15000 Nm.
二、Features and Applications
2.1 Key Features
- WyeQ actuator combined with BW gearbox
- High-torque quarter-turn operation
- 90° rotary valve control
- Non-invasive actuator design
- Intelligent torque and position control
- Local and remote operation
- IP68 actuator protection
- Multi-language display
- Infrared setting and control
- Data logging
- Fault self-diagnosis
- On/off, modulating and fieldbus control
- Modbus, Profibus DP and HART communication options
2.2 Applications
The WyeQ+BW series is suitable for high-torque quarter-turn valve applications including:
- Ball valves
- Butterfly valves
- Plug valves
- Dampers
Typical industries include:
- Oil and Gas
- Power
- Water and Wastewater
- Chemical Processing
- Marine
- Mining
- Pulp and Paper
- Industrial Process Systems
三、Technical Data
3.1 Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Quarter-turn Electric Actuator with Gearbox |
| Actuator Series | WyeQ |
| Gearbox Series | BW |
| Operating Angle | 90° |
| Output Torque Range | 1000–15000 Nm |
| Protection Grade | IP68 |
| Three-phase Power Supply | AC 380–690 V, 50/60 Hz |
| Single-phase Power Supply | AC 110–240 V, 50/60 Hz |
| Control Modes | On/Off, Modulating, Fieldbus |
| Position Feedback | 4–20 mA / 1–5 V / 0–10 V options |
| Communication | Modbus, Profibus DP, HART |
| Insulation Class | F |
| Setting Method | Infrared non-invasive setting |
The WyeQ actuator platform provides the standard control, protection and communication functions used with the BW gearbox combinations.
3.2 Available Models
| Model | Output Torque |
|---|---|
| WyeQ18+BW1 | 1000 Nm |
| WyeQ18+BW2 | 1600 Nm |
| WyeQ18+BW3 | 2500 Nm |
| WyeQ18+BW4 | 4000 Nm |
| WyeQ25+BW5 | 6000 Nm |
| WyeQ25+BW6 | 8000 Nm |
| WyeQ35+BW7 | 10000 Nm |
| WyeQ35+BW8 | 15000 Nm |
The catalog lists eight WyeQ+BW combinations, from WyeQ18+BW1 through WyeQ35+BW8.
四、Control and Communication
4.1 Control Modes
| Control Type | Description |
|---|---|
| On/Off Control | For fully open and fully closed valve operation |
| Modulating Control | For continuous valve position regulation |
| Fieldbus Control | For centralized PLC or DCS control |
4.2 Communication Options
| Communication | Application |
|---|---|
| Modbus | Industrial digital communication |
| Profibus DP | Fieldbus control and automation |
| HART | Digital communication with 4–20 mA signal |
The WyeQ control platform also provides local operation, LCD indication, infrared setting, diagnostic functions and remote control capability.
五、Protection and Reliability
5.1 IP68 Protection
The WyeQ actuator uses an IP68 enclosure for protection against water and dust in demanding industrial environments.
5.2 Double-Seal Protection
The actuator control section is isolated from the terminal compartment through a double-sealed design, helping protect internal electronic components during field wiring and operation.
5.3 High-Torque Gear Drive
The BW gearbox provides mechanical reduction to increase output torque and convert the WyeQ actuator’s multi-turn output into quarter-turn valve movement.
六、Model Selection
6.1 How to Select a WyeQ+BW Actuator
| Selection Parameter | Required Information |
|---|---|
| Valve Type | Ball valve, butterfly valve, plug valve, damper, etc. |
| Required Torque | Nm |
| Power Supply | Single-phase or three-phase |
| Control Type | On/Off, modulating or fieldbus |
| Feedback Signal | 4–20 mA / 1–5 V / 0–10 V |
| Communication | Modbus / Profibus DP / HART |
| Valve Connection | Flange and shaft dimensions |
| Operating Environment | Temperature and installation conditions |
6.2 Model Range
WyeQ18+BW1 / WyeQ18+BW2 / WyeQ18+BW3 / WyeQ18+BW4 / WyeQ25+BW5 / WyeQ25+BW6 / WyeQ35+BW7 / WyeQ35+BW8
