WyeQ+VE Linear Electric Actuator
一、Product Overview
1.1 Short Description

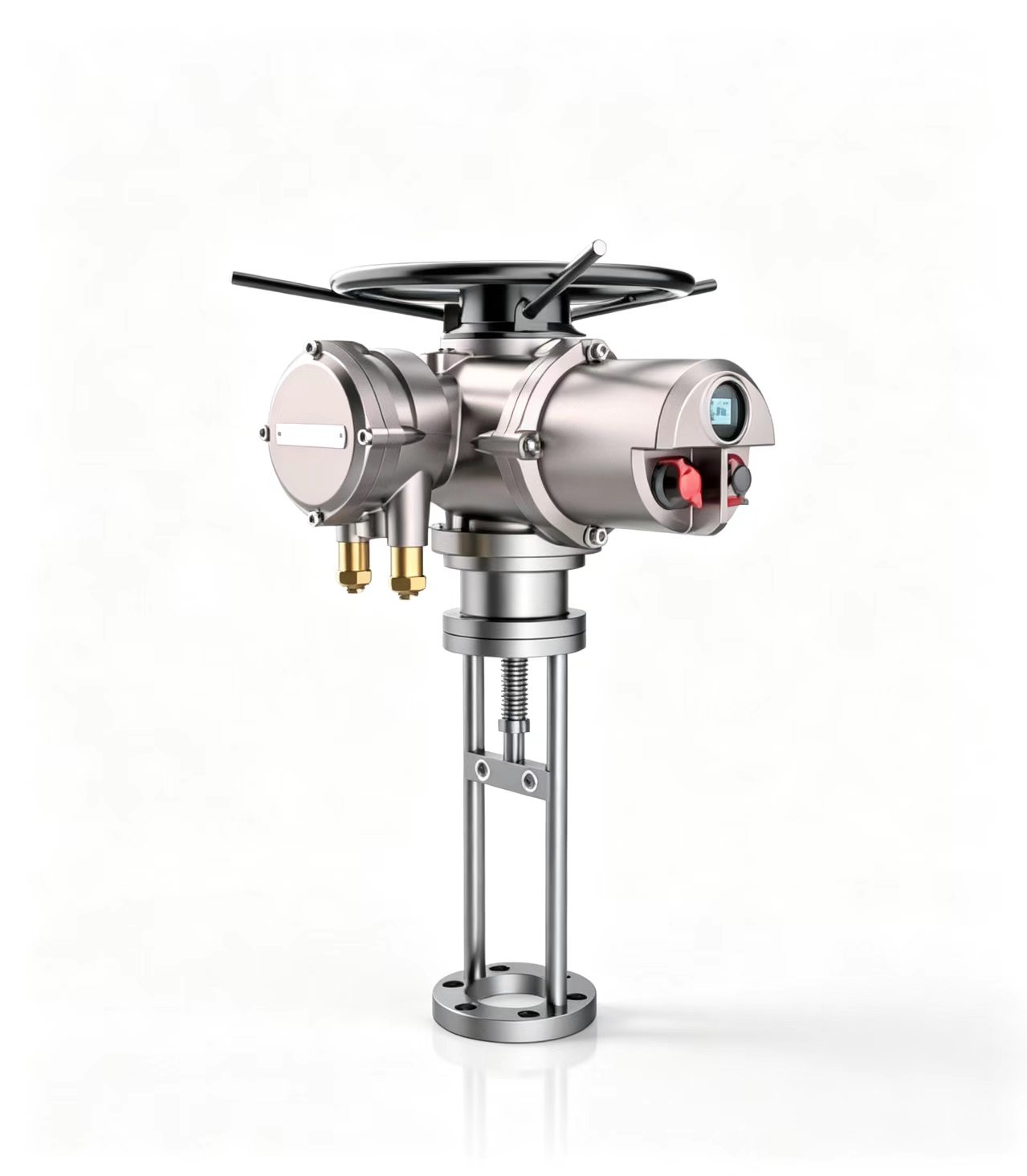

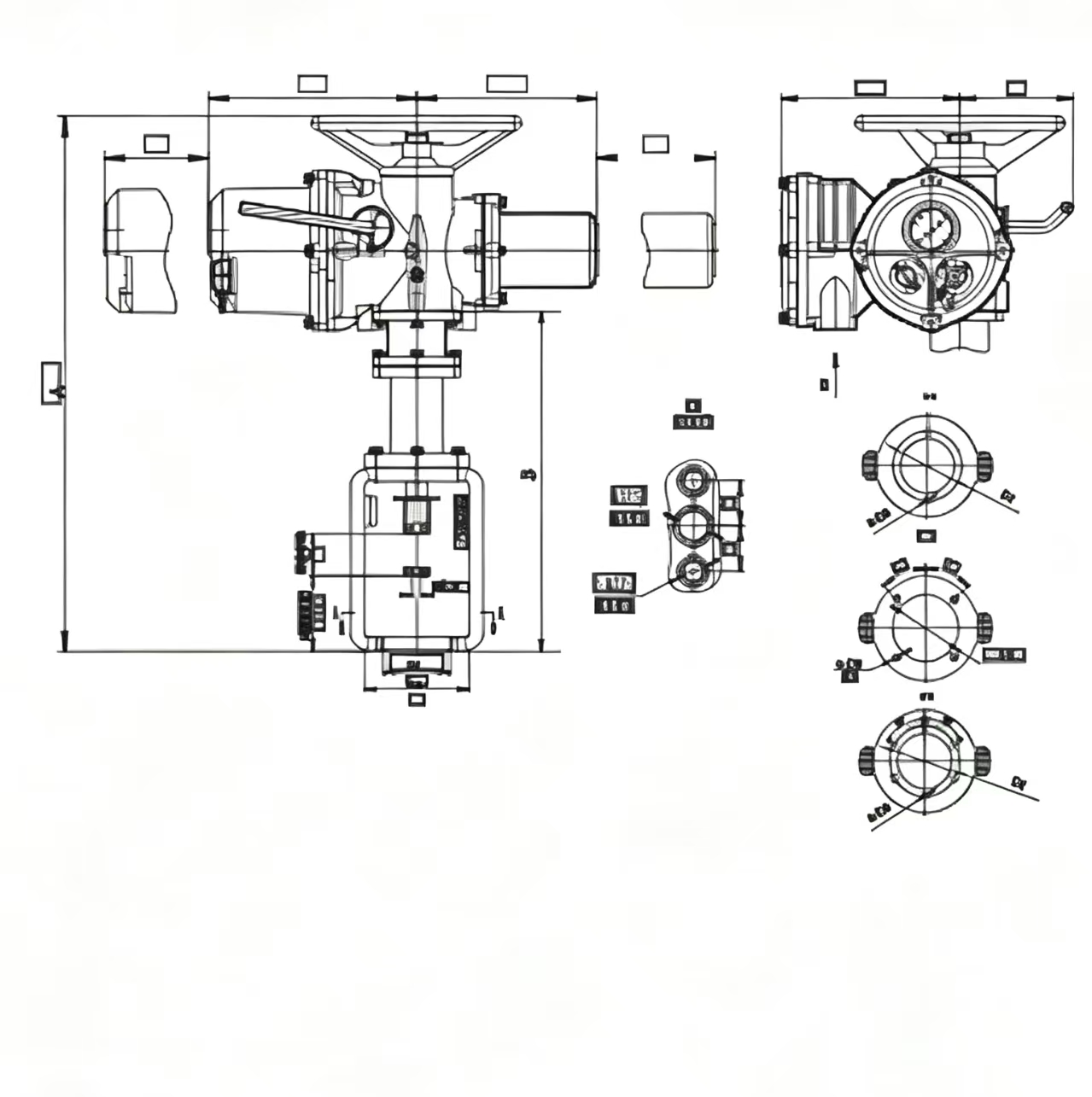

The WyeQ+VE Linear Electric Actuator combines the WyeQ intelligent electric actuator with a VE linear drive unit to provide controlled linear valve movement.
It is designed for applications requiring linear stem travel and is available with rated thrust from 6400 N to 25000 N.
1.2 Product Overview
The WyeQ+VE series converts the rotary output of the WyeQ electric actuator into linear motion through the VE linear drive mechanism.
It is suitable for valve applications where the stem must move in a straight line rather than rotate. The catalog provides four main VE sizes — VE64, VE100, VE160 and VE250 — with different thrust and travel ranges.
The WyeQ control platform also provides intelligent setting, local indication, position feedback and communication functions for industrial valve automation.
二、Features and Applications
2.1 Key Features
- Linear valve operation
- Rated thrust from 6400 N to 25000 N
- Multiple stroke options
- WyeQ intelligent actuator platform
- Non-invasive setting
- Local LCD indication
- Infrared setup and control
- Position feedback
- Fault self-diagnosis
- IP68 actuator protection
- On/off and modulating control
- Fieldbus communication
- Modbus, Profibus DP and HART options
- Single-phase and three-phase configurations
The catalog lists non-invasive setting, infrared control, diagnostic functions and fieldbus communication as standard WyeQ platform capabilities.
2.2 Applications
The WyeQ+VE series is suitable for linear valve applications including:
- Globe valves
- Control valves
- Linear regulating valves
- Process control valves
- Other valves requiring linear stem movement
Typical industries include:
- Oil and Gas
- Power
- Water and Wastewater
- Chemical Processing
- Marine
- Mining
- Pulp and Paper
- Food and Beverage
- Pharmaceutical
三、Technical Data
3.1 Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Linear Electric Actuator |
| Actuator Series | WyeQ |
| Linear Drive Series | VE |
| Rated Thrust | 6400–25000 N |
| Protection Grade | IP68 |
| Three-phase Power Supply | AC 380–690 V, 50/60 Hz |
| Single-phase Power Supply | AC 110–240 V, 50/60 Hz |
| Motor | Fully sealed squirrel-cage AC motor |
| Ambient Temperature | Standard: -30°C to +70°C |
| Ambient Humidity | Max. 90% RH, non-condensing |
| Position Transmitter | 1 kΩ potentiometer / 4–20 mA |
| Feedback Signal | 4–20 mA / 1–5 V / 0–10 V |
| Control Modes | On/Off, Modulating, Fieldbus |
| Communication | Modbus, Profibus DP, HART |
| Insulation Class | F |
These specifications follow the standard actuator data listed in the catalog, including IP68 protection, power supply, feedback and communication functions.
3.2 VE Size and Travel Range
| VE Size | Rated Thrust | Travel Range |
|---|---|---|
| VE64 | 6400 N | 10–40 mm |
| VE100 | 10000 N | 16–60 mm |
| VE160 | 16000 N | 25–100 mm |
| VE250 | 25000 N | 40–100 mm |
The catalog lists these four main thrust and travel ranges for the VE linear actuator system.
四、Available Models
4.1 Main Product Series
The main WyeQ+VE combinations include:
- WyeQ18+VE64
- WyeQ18+VE100
- WyeQ18+VE160
- WyeQ25+VE250
These four product families are shown in the catalog product categories.
4.2 Detailed Configurations
The catalog also lists multiple detailed configurations within these four series, with different travel and operating parameters.
Examples include:
- WyeQ18+VE64/0610
- WyeQ18+VE64/0810
- WyeQ18+VE64/1210
- WyeQ18+VE64/1610
- WyeQ18+VE100/1216
- WyeQ18+VE100/1625
- WyeQ18+VE160/1225
- WyeQ18+VE160/1660
- WyeQ25+VE250/1640
- WyeQ25+VE250/1660
- WyeQ25+VE250/1600
The catalog contains many full configuration codes, so for the website I recommend displaying only the four main product families and handling detailed configuration during quotation or technical selection.
五、Control and Feedback
5.1 Control Modes
| Control Type | Description |
|---|---|
| On/Off Control | Full open and full close linear operation |
| Modulating Control | Continuous stem position regulation |
| Fieldbus Control | Integration with PLC and DCS systems |
5.2 Signal Options
Available signal options listed in the catalog include:
- Passive dry contact control
- DC 24 V control
- AC 220 V control
- 4–20 mA modulating signal
- 1–5 V modulating signal
- 0–10 V modulating signal
Feedback options include valve position and fault signals.
5.3 Communication Options
| Communication | Application |
|---|---|
| Modbus | Industrial digital communication |
| Profibus DP | Fieldbus automation |
| HART | Digital communication with analog signal |
六、Protection and Reliability
6.1 IP68 Protection
The WyeQ actuator platform is specified with IP68 protection for demanding industrial environments.
6.2 Non-Invasive Setting
The actuator can be configured through infrared setup without opening the electrical enclosure during commissioning.
6.3 Fault Diagnosis
The actuator platform provides fault self-diagnosis and local indication to support easier commissioning and maintenance.
6.4 Double-Seal Protection
The catalog describes a double-seal structure that isolates the control section from the connection box to help protect internal electronic components.
七、Model Selection
7.1 How to Select a WyeQ+VE Actuator
| Selection Parameter | Required Information |
|---|---|
| Valve Type | Globe valve, control valve, linear valve, etc. |
| Required Thrust | N |
| Required Travel | mm |
| Power Supply | Single-phase or three-phase |
| Control Type | On/Off or modulating |
| Input Signal | 4–20 mA / 1–5 V / 0–10 V |
| Feedback Signal | Position / fault feedback |
| Communication | Modbus / Profibus DP / HART |
| Stem Connection | Stem dimensions and connection |
| Environment | Temperature and installation conditions |
7.2 Quick Selection Guide
| Required Thrust | Recommended Series |
|---|---|
| Up to 6400 N | WyeQ18+VE64 |
| Up to 10000 N | WyeQ18+VE100 |
| Up to 16000 N | WyeQ18+VE160 |
| Up to 25000 N | WyeQ25+VE250 |
Final model selection should also consider stroke, operating speed, power supply and mechanical connection.
