501T Top-Guided Cage Control Valve
Stable Flow Control for Industrial Process Applications
The Wye 501T Top-Guided Cage Control Valve is designed for industrial flow and pressure regulation. Its cage-guided trim structure provides stable valve plug guidance and helps maintain reliable control under different operating conditions.
The 501T is available with different trim, material, temperature and actuator configurations to meet specific process requirements.
DN25–DN300 | Pneumatic or Electric Actuation
[Request a Quote] [Send Your Operating Conditions]
一、Product Overview
1.1 What Is the 501T Control Valve?
The 501T is a cage-guided control valve designed to regulate the flow and pressure of process fluids.
Its cage structure guides the valve plug during operation, providing improved stability and supporting consistent throttling performance.
Different configurations can be selected according to operating pressure, temperature, flow requirements and process medium.
1.2 What Problems Can the 501T Help Solve?
Industrial process systems require control valves that can maintain stable operation under changing conditions.
Common challenges include:
- Unstable flow and pressure regulation
- Vibration during valve operation
- High differential pressure
- Noise caused by fluid flow
- Valve trim wear
- Difficult maintenance
The 501T offers a cage-guided design with different configuration options to address these operating requirements.
二、Process Control Solutions
2.1 Stable Flow and Pressure Regulation
The cage-guided structure provides support and guidance for the valve plug throughout its travel.
This helps maintain stable movement during throttling and supports consistent flow regulation.
The valve can be selected according to the required flow coefficient, operating pressure and process conditions.
2.2 Improved Valve Plug Stability
During operation, fluid forces can affect valve plug movement.
The 501T cage structure provides additional guidance to the plug, helping improve operating stability.
This design is particularly relevant to applications where stable valve movement is important.
2.3 Application-Specific Configuration
Different industrial processes require different control valve configurations.
The 501T can be configured according to:
- Operating pressure
- Differential pressure
- Flow rate
- Process temperature
- Fluid properties
- Required flow characteristics
- Shutoff requirements
The final configuration should be determined using actual operating data.
三、Valve Structure and Trim Options
3.1 Cage-Guided Structure
The 501T uses a cage-guided internal structure.
The cage guides the valve plug during movement and helps maintain alignment throughout the operating stroke.
3.2 Trim Configuration
The valve trim can be selected according to the required flow characteristics and operating conditions.
Appropriate trim selection helps match the valve to the required flow capacity and control duty.
3.3 Maintenance Considerations
The internal construction allows valve components to be selected according to the application.
Maintenance procedures and replacement requirements depend on the final valve configuration.
四、Temperature and Media Options
4.1 Standard Temperature Applications
Standard configurations can be selected for conventional industrial process temperatures.
4.2 High-Temperature Applications
High-temperature configurations can be selected according to the process medium and operating temperature.
4.3 Low-Temperature Applications
Low-temperature configurations are available for applications requiring suitable materials and extended valve construction.
The applicable temperature limits must be confirmed for the selected configuration.
五、Technical Specifications
5.1 Main Technical Parameters
| Parameter | Specification |
|---|---|
| Model | 501T |
| Product Type | Cage Control Valve |
| Guidance | Cage-guided |
| Nominal Size | DN25–DN300 |
| Valve Body | Straight-through globe type |
| Actuation | Pneumatic or electric |
| Flow Characteristics | Selected according to trim |
| Body Material | Selected according to service |
| Trim Material | Selected according to service |
| End Connection | Selected according to specification |
| Temperature Range | Depends on configuration |
Detailed pressure ratings, Cv values, leakage classes and actuator dimensions should be taken from the corresponding 501T selection tables.
六、Body and Trim Materials
6.1 Body Materials
The body material should be selected according to the operating pressure, temperature and process medium.
6.2 Trim Materials
Trim material selection should consider fluid properties, corrosion requirements and operating conditions.
6.3 Packing and Sealing
Packing and sealing materials should be selected according to temperature, medium compatibility and leakage requirements.
七、Actuator Options
7.1 Pneumatic Actuator

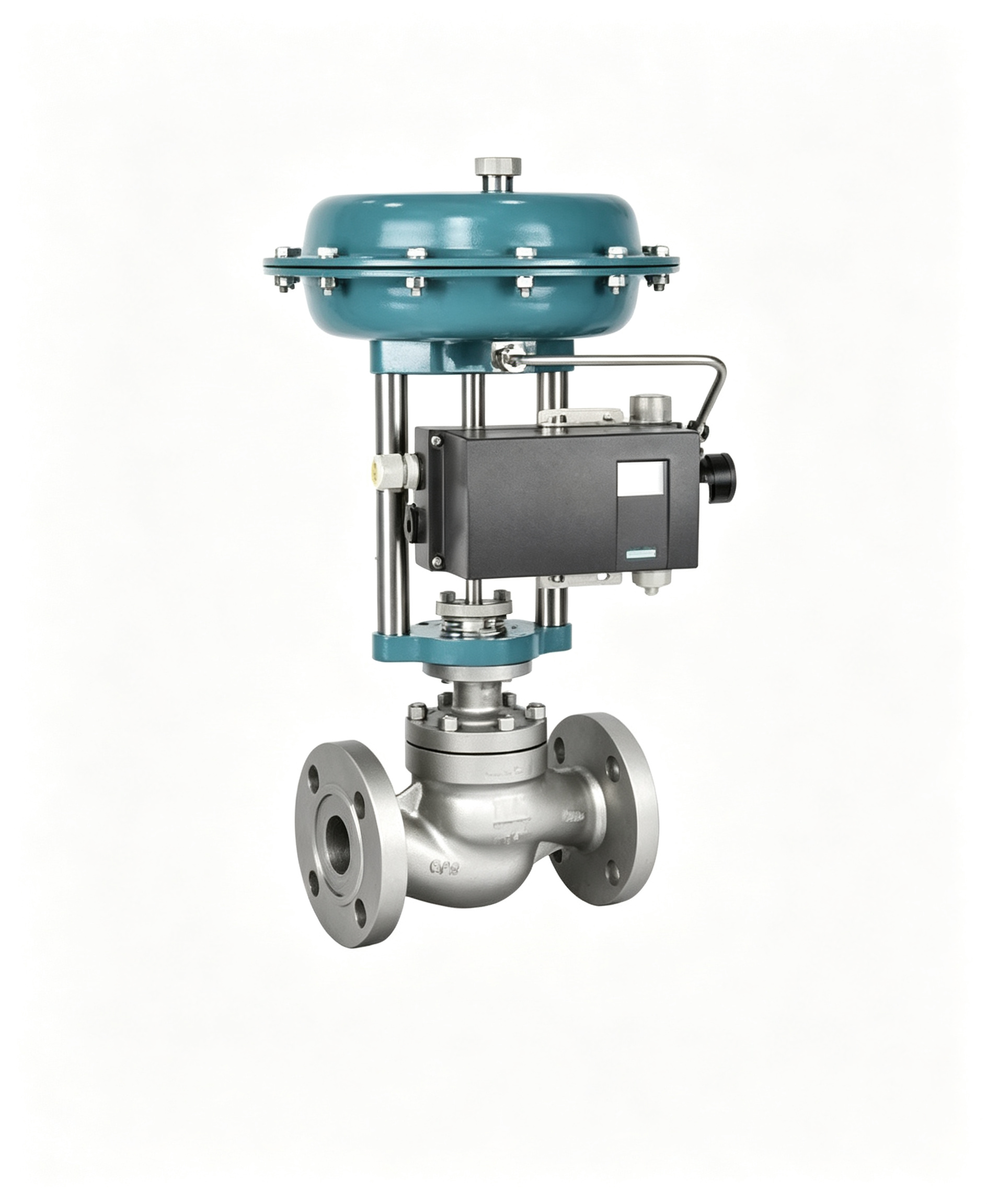

The 501T can be supplied with a pneumatic actuator for automatic flow and pressure regulation.
A valve positioner and suitable accessories can be configured according to the control requirements.
7.2 Electric Actuator

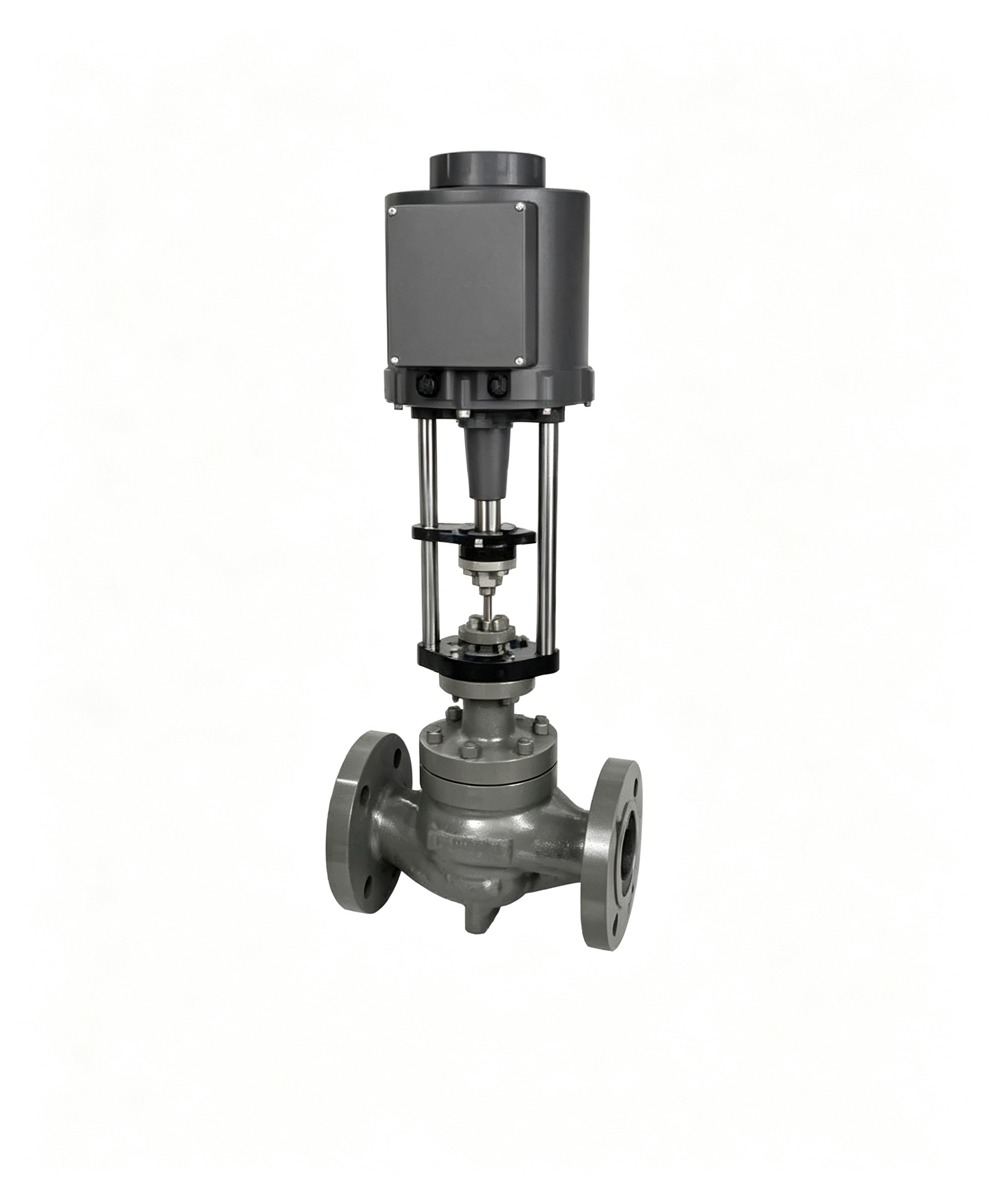

Electric actuator configurations are available for applications requiring electrically operated regulation.
The actuator should be selected according to valve size, required thrust and control requirements.
八、Why Choose the Wye 501T?
8.1 Cage-Guided Stability
The cage structure provides guidance for the valve plug and supports stable operation.
8.2 Flexible Configuration
Different trim, material and actuator combinations can be selected according to the application.
8.3 Process-Based Selection
The valve can be selected according to actual operating conditions rather than nominal size alone.
8.4 Industrial Control Applications
The 501T is designed for industrial process systems requiring controlled fluid flow and pressure regulation.
九、Valve Selection Information
9.1 Information Required for Selection
Please provide the following operating data:
- Process medium
- Inlet pressure
- Outlet pressure
- Differential pressure
- Minimum flow rate
- Normal flow rate
- Maximum flow rate
- Operating temperature
- Pipe size
- Required Cv, if available
- Body and trim material requirements
- Actuator preference
- Shutoff requirements
9.2 Application-Based Configuration
Based on the supplied operating data, the appropriate valve size, trim, materials and actuator can be determined.
十、Send Us Your Operating Conditions
Selecting a control valve requires consideration of the entire process, including pressure, flow, temperature and control requirements.
Send us your operating conditions to discuss a suitable 501T configuration for your application.
[Request Valve Selection]
[Request a Quote]
[Download Datasheet]
