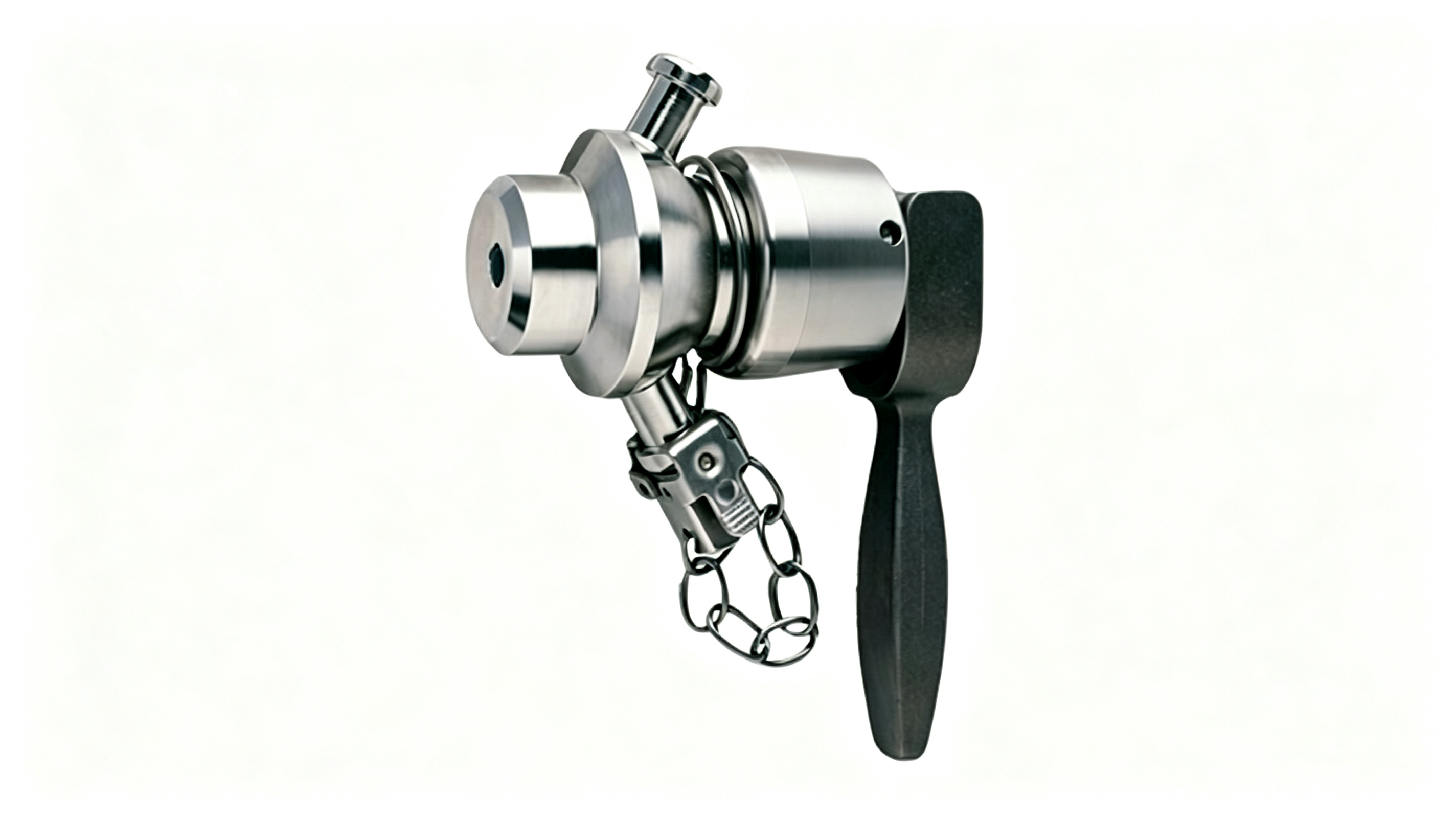

The Aseptic Membrane Sampling Valve is designed for hygienic and aseptic sampling from tanks, vessels, and process pipelines. Featuring a sanitary stainless steel body and membrane sealing design, the valve helps isolate the process medium from the external environment and minimizes the risk of contamination during sampling.
Its compact construction, smooth product-contact surfaces, and hygienic design make the valve easy to clean, sterilize, and maintain. The sampling chamber can be sterilized with alcohol or steam before and after sampling, making the valve suitable for food, beverage, dairy, brewery, fermentation, and other hygienic processing applications.
Features
- Hygienic stainless steel construction
- Membrane sealing design for reliable product isolation
- Suitable for aseptic and hygienic sampling
- Can be sterilized with alcohol or steam before and after sampling
- Smooth internal surfaces for easy cleaning
- Compact design for installation in limited spaces
- Suitable for tank and pipeline installation
- Manual, micro-sampling, and pneumatic operation options available
- Designed for hygienic liquid processing applications
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Aseptic Membrane Sampling Valve |
| Product Contact Material | SS316L / 1.4404 |
| Other Steel Parts | SS304 / 1.4307 |
| Membrane Material | EPDM |
| Surface Finish | Ra ≤ 0.8 μm |
| Max. Working Pressure | 10 bar |
| Working Temperature | 1–130°C |
| Max. Sterilization Temperature | 121°C |
| Operation | Manual / Micro-Sampling / Pneumatic |
| Installation | Tank / Pipeline / Threaded Installation |
| Sterilization | Alcohol / Steam |
Working Principle
The aseptic membrane sampling valve consists mainly of a valve body, membrane seal, and operating mechanism. When the valve is closed, the membrane seals directly against the product side, separating the process medium from the sampling outlet.
Before sampling, the sampling chamber can be sterilized with alcohol or steam. When the valve is opened manually or pneumatically, the process medium flows through the sampling outlet into the sampling container.
After sampling, the valve is closed and the sampling area can be flushed, cleaned, or sterilized again, helping maintain hygienic conditions for the next sampling operation.
Applications
The Aseptic Membrane Sampling Valve is suitable for hygienic processing systems where clean and representative samples are required. Typical applications include:
- Food processing
- Beverage production
- Breweries
- Dairy processing
- Fermentation systems
- Hygienic storage tanks
- Process vessels
- Sanitary process pipelines
- Other hygienic liquid processing systems
Available Options
Different configurations are available to meet various process and installation requirements, including:
- Manual Sampling Valve
- Micro Sampling Valve
- Pneumatic Sampling Valve
- Tank Sampling Valve
- Pipeline Sampling Valve
- Threaded Sampling Valve
The valve can be configured according to specific process conditions, installation requirements, and sampling applications.
