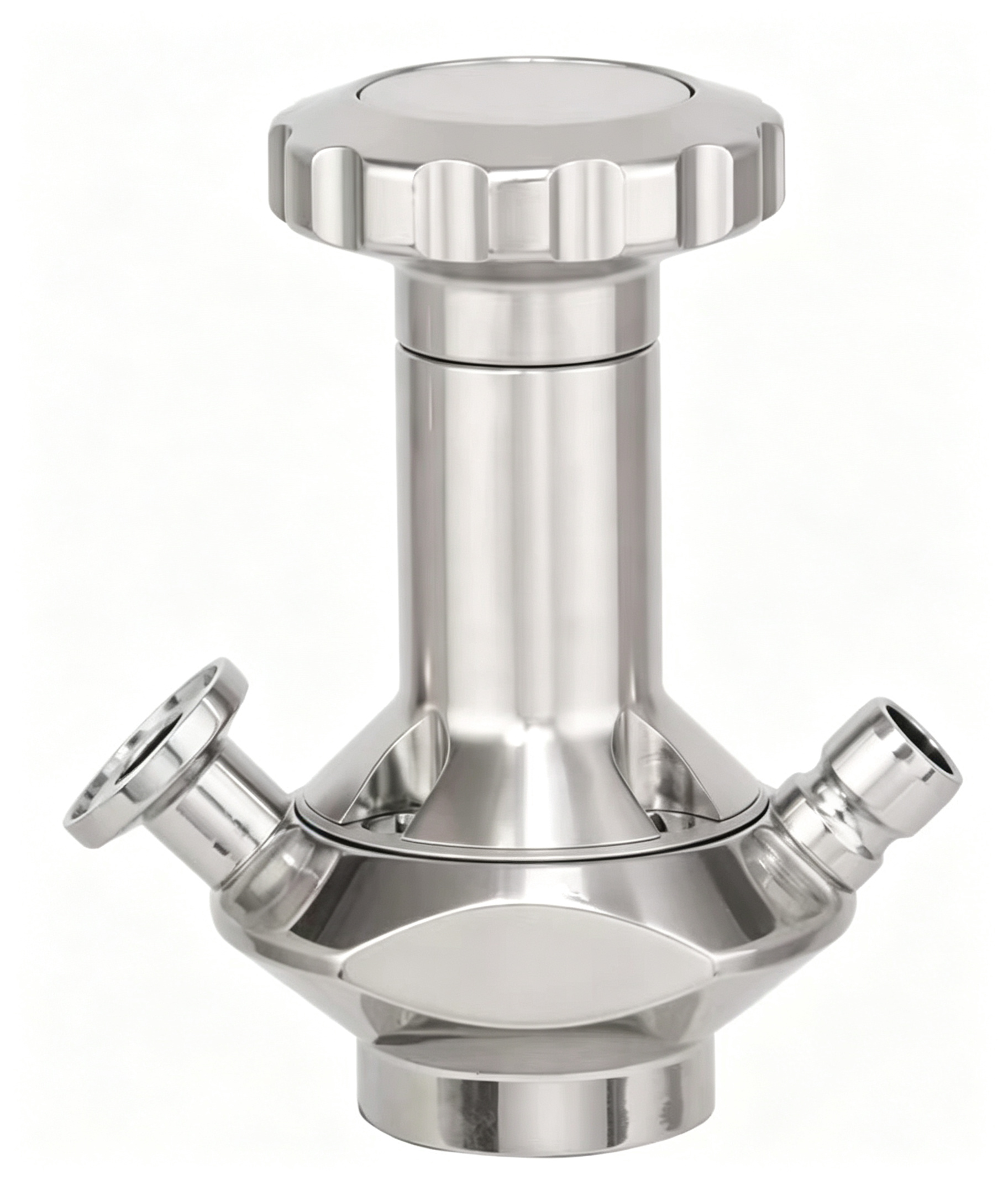

The Single Seat Sampling Valve is designed for hygienic sampling from tanks, vessels, and process pipelines. Its compact single-seat construction provides controlled product sampling while maintaining reliable shut-off between the process medium and the sampling outlet.
Manufactured with high-quality stainless steel product-contact parts and smooth internal surfaces, the valve is suitable for hygienic processing systems where cleanliness, reliability, and ease of operation are essential. Manual and pneumatic operating options are available to meet different production and automation requirements.
Features
- Hygienic single-seat construction
- SS316L product-contact parts
- Smooth internal surface for improved cleanability
- Compact and reliable design
- Suitable for tank and pipeline sampling
- Manual or pneumatic operation available
- Easy installation, operation, and maintenance
- EPDM or silicone sealing options
- Designed for hygienic liquid processing systems
- Suitable for repeated process sampling
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Single Seat Sampling Valve |
| Product Contact Material | SS316L / 1.4404 |
| Seal Material | EPDM / Silicone |
| Surface Finish | Ra ≤ 0.8 μm |
| Max. Working Pressure | 6 bar |
| Working Temperature | 1–130°C |
| Operation | Manual / Pneumatic |
| Nominal Size | DN25 / 1 inch |
| Installation | Tank / Vessel / Process Pipeline |
| Application | Hygienic Sampling |
Working Principle
The Single Seat Sampling Valve uses a movable stem and sealing element to control the flow between the process line and the sampling outlet.
In the closed position, the sealing element shuts off the product flow and isolates the sampling outlet from the process medium.
When the valve is opened manually or pneumatically, the stem moves away from the valve seat, allowing a controlled amount of process liquid to flow through the sampling outlet.
After the required sample has been collected, the valve is closed to stop the flow and restore the sealed condition.
Applications
The Single Seat Sampling Valve is suitable for hygienic processing applications including:
- Food Processing
- Beverage Production
- Dairy Processing
- Brewery Systems
- Fermentation Equipment
- Hygienic Storage Tanks
- Process Vessels
- Sanitary Process Pipelines
- Liquid Processing Systems
Available Options
Available configurations may include:
- Manual Single Seat Sampling Valve
- Pneumatic Single Seat Sampling Valve
- EPDM Seal
- Silicone Seal
- Tank Mounted Version
- Pipeline Mounted Version
