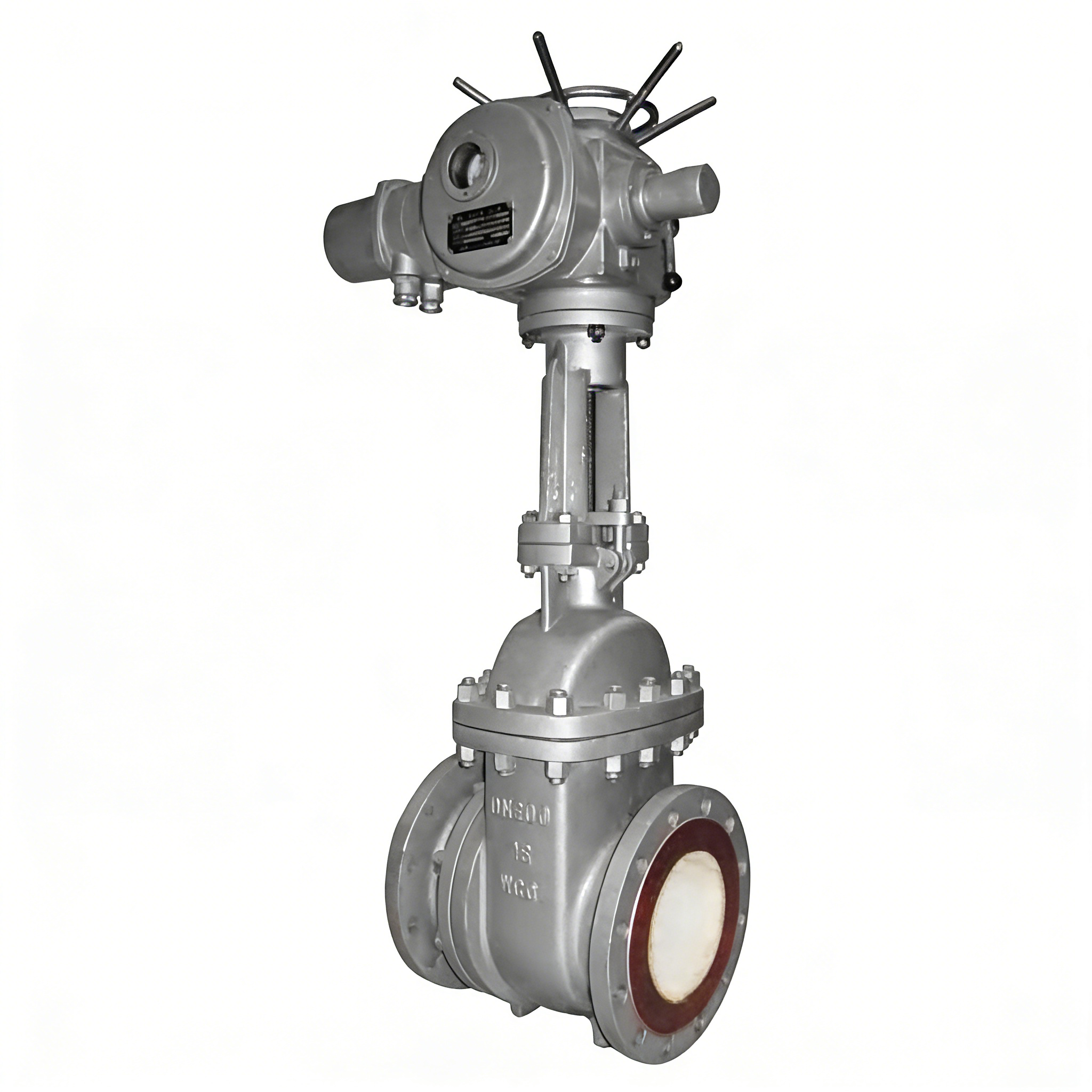

Electric Ceramic Slag Valve

The Electric Ceramic Slag Valve is a specialized industrial valve designed for handling abrasive, high-wear media consisting of liquid-solid mixtures, such as slag, ash, and slurry. Its core design features a streamlined flow path and ceramic sealing components, ensuring no residual slag accumulates in the valve body and providing a tight, reliable shutoff. The valve’s disc and seat are fabricated from high-performance engineering ceramics, delivering exceptional resistance to abrasion and corrosion, which extends its service life significantly compared to conventional metal valves. It is widely used in industries including power generation, petrochemicals, metallurgy, mining, coal-fired power plants, cement plants, and wastewater treatment facilities. It is particularly suited for mortar, ash transportation pipelines, and other high-abrasion systems where metal valves fail prematurely. Available with electric or manual actuation, this valve provides precise, automated control for critical slag discharge and abrasive fluid handling applications.

Ⅰ. Product Introduction

The Electric Ceramic Slag Valve is a specialized industrial valve designed for handling abrasive, high-wear media consisting of liquid-solid mixtures, such as slag, ash, and slurry. Its core design features a streamlined flow path and ceramic sealing components, ensuring no residual slag accumulates in the valve body and providing a tight, reliable shutoff.

The valve’s disc and seat are fabricated from high-performance engineering ceramics, delivering exceptional resistance to abrasion and corrosion, which extends its service life significantly compared to conventional metal valves. It is widely used in industries including power generation, petrochemicals, metallurgy, mining, coal-fired power plants, cement plants, and wastewater treatment facilities. It is particularly suited for mortar, ash transportation pipelines, and other high-abrasion systems where metal valves fail prematurely.

Available with electric or manual actuation, this valve provides precise, automated control for critical slag discharge and abrasive fluid handling applications.

Ⅱ. Product Features

Superior Abrasion & Corrosion Resistance

The disc and seat are made of toughened engineering ceramics (HRC88 hardness), providing outstanding resistance to wear, corrosion, and erosion in harsh media such as slag, ash, and slurry.
No Slag Accumulation

The streamlined outlet design ensures complete media discharge with no residual slag buildup in the valve body, preventing blockages and maintaining consistent flow.
Low Operating Effort

The handwheel (for manual models) incorporates a thrust bearing to reduce opening/closing torque, ensuring smooth and easy operation. High-wear internal components use abrasion-resistant composite materials for extended durability.
Self-Compensating Sealing

The ceramic sealing surfaces maintain tight shutoff even after prolonged use, with minimal degradation in performance.
Flexible Installation

The compact, robust design allows installation at any angle, adapting to diverse pipeline layouts.
Automated Control

The electric actuator enables remote, precise on/off control, making it ideal for integrated industrial process systems.
Broad Application Range

Specifically engineered for ash removal systems in coal-fired power plants, and also suitable for mine ore washing, coal preparation, and chemical abrasive fluid pipelines.

Ⅲ. Technical Data

Basic Technical Parameters

Parameter Name	Specification
Nominal Pressure (PN)	1.0 MPa, 1.6 MPa, 2.5 MPa, 4.0 MPa
Applicable Temperature	≤200℃
Applicable Medium	Liquid-solid mixtures, slag, ash, slurry, abrasive fluids
Actuation Type	Electric, Manual
Installation	Any angle

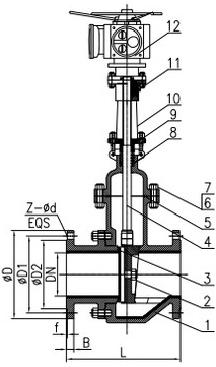

Parts Material

No.	Part Name	Material
1	Valve Body	WCB + Engineering Ceramic
2	Disc	WCB + Engineering Ceramic
3	Seat	Engineering Ceramic
4	Stem	2Cr13
5	Middle Gasket	Graphite Composite Gasket
6	Stud	35CrMo
7	Nut	45# Steel
8	Packing	Graphite Packing
9	Packing Gland	WCB
10	Yoke	WCB
11	Stem Nut	Copper Alloy
12	Electric Actuator	Assembly

Ⅳ．The main shape and connection size

DN	L	PN10(1.0MPa)						PN16(1.6MPa)
		D	D1	D2	B	f	Z-d	D	D1	D2	B	f	Z-d
50	250	165	125	102	18	3	4-18	165	125	102	20	3	4-18
80	280	200	160	138	20	3	8-18	200	160	138	20	3	8-18
100	300	220	180	158	20	3	8-18	220	180	158	22	3	8-18
125	325	250	210	188	22	3	8-18	250	210	188	22	3	8-18
150	350	285	240	212	22	3	8-22	285	240	212	22	3	8-22
200	400	340	295	268	24	3	8-22	340	295	268	24	3	12-22
250	450	395	350	320	26	3	12-22	405	355	320	26	3	12-26
300	500	445	400	370	26	4	12-22	460	410	378	28	4	12-26
350	550	505	460	430	26	4	16-22	520	470	438	30	4	16-26
400	600	565	515	482	26	4	16-26	580	525	490	32	4	16-30
