1. Product Overview
1.1 Product Description

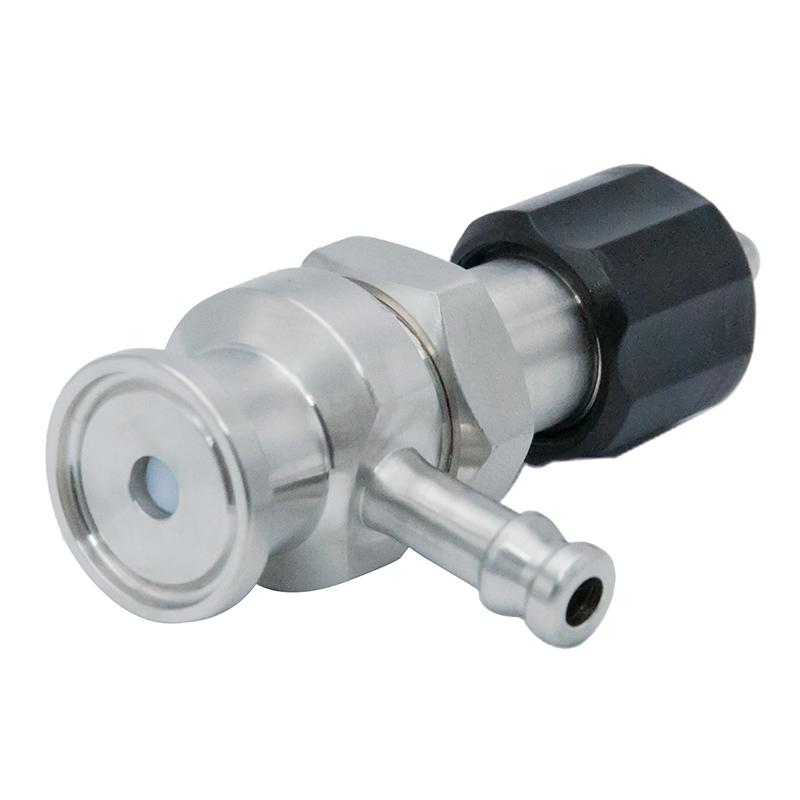

The Micro Aseptic Sampling Valve is designed for small-volume, hygienic and microbiological sampling from tanks, vessels and process pipelines. Its compact construction makes it suitable for applications where only a very small sample quantity is required for laboratory testing, microbiological analysis or quality control.
Depending on the valve configuration, sampling can be performed through a dedicated micro sampling outlet or by using a fine hypodermic needle through a self-sealing membrane or elastomer plug. This design helps minimize sample volume and reduce exposure of the process medium to the external environment.
The valve is suitable for food, beverage, dairy, brewing, pharmaceutical and biotechnology processing systems where frequent small-volume sampling is required.
1.2 Working Principle
During sampling, a small quantity of process medium is collected through the dedicated micro sampling point.
For needle-type designs, a fine hypodermic needle passes through a self-sealing elastomer plug or membrane to collect the sample. After the needle is removed, the sealing element closes automatically, helping maintain hygienic separation between the process system and the surrounding environment.
The compact sampling path also helps reduce product loss compared with conventional larger sampling valves.
2. Features and Technical Data
2.1 Features
- Designed for small-volume and microbiological sampling
- Compact hygienic construction
- Suitable for tanks, vessels and process pipelines
- Helps minimize product loss during sampling
- Available with sanitary weld or clamp connections
- Wetted components available in 316L stainless steel
- Suitable for hygienic and aseptic process applications
- Easy to clean and sterilize
- Simple manual operation
- Suitable for laboratory and quality-control sampling
2.2 Technical Data
| Item | Specification |
|---|---|
| Product Name | Micro Aseptic Sampling Valve |
| Body Material | 316L Stainless Steel |
| Operation | Manual |
| Installation | Tank / Pipeline |
| Connection | Weld / Clamp |
| Sampling Type | Micro-volume Sampling |
| Seal / Membrane | EPDM / Silicone / PTFE, depending on configuration |
| Surface Finish | Hygienic Polished Finish |
| Cleaning | CIP / Manual Sterilization, depending on design |
| Application | Food, Beverage, Dairy, Brewing, Pharmaceutical, Biotechnology |
3. Applications
3.1 Typical Applications
The Micro Aseptic Sampling Valve is suitable for:
- Microbiological testing
- Laboratory sample collection
- Beer and fermentation processes
- Dairy processing
- Beverage production
- Pharmaceutical process fluids
- Biotechnology systems
- Process water sampling
3.2 Installation
The valve can be installed directly on tank walls, vessels or hygienic process pipelines. Welded installation is commonly used where a permanent hygienic connection is required, while clamp-type connections can be selected when easier disassembly and maintenance are preferred.
The installation position should allow convenient sampling, cleaning and sterilization while minimizing unnecessary dead space in the process system.
