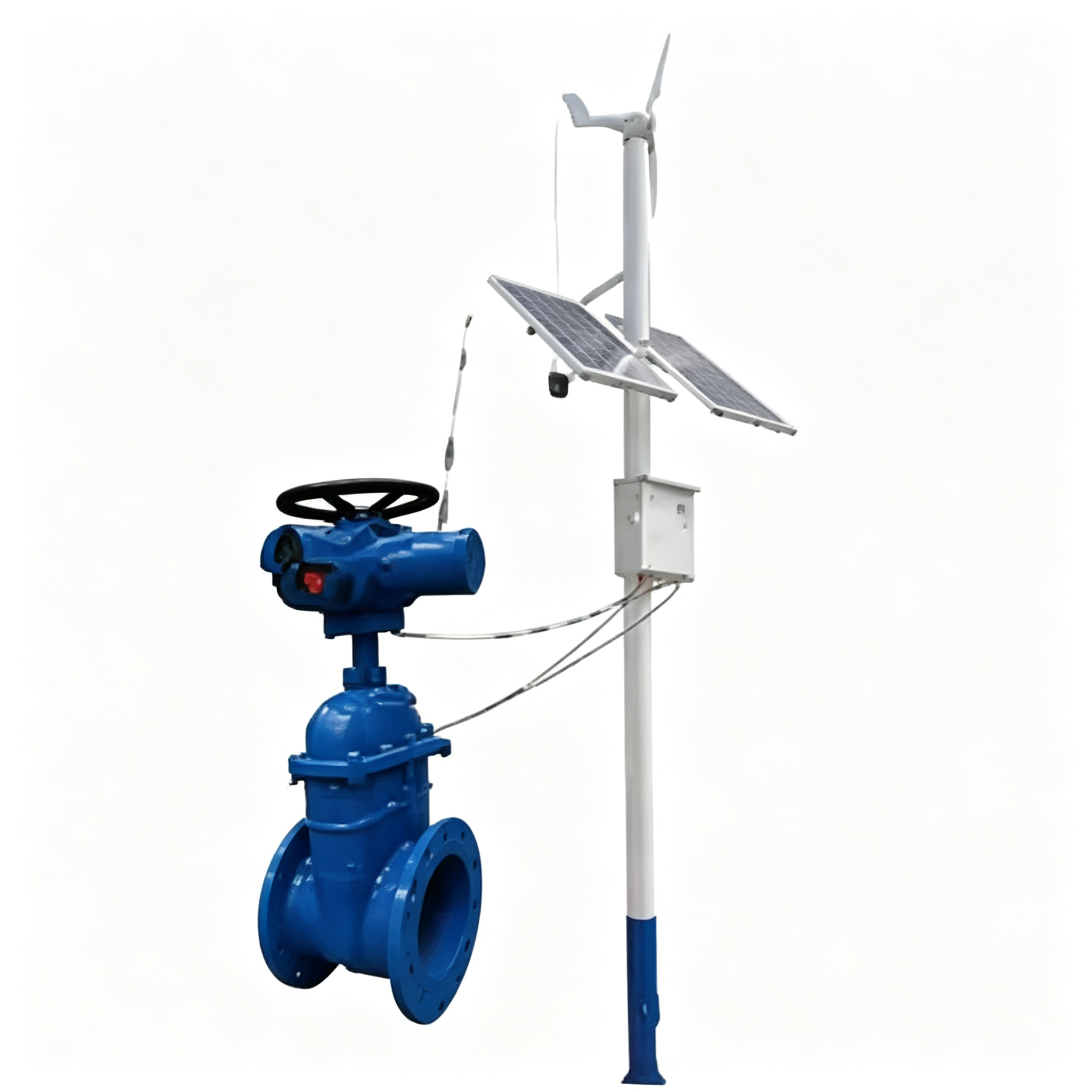

Mobile Phone Controlled Electric Actuated Gate Valve
I. Product Overview
Remote Electric Gate Valve Control Powered by Renewable Energy
The Mobile Phone Controlled Electric Actuated Gate Valve combines an electric actuated gate valve with wind and solar power supply, intelligent control and wireless communication technology.
Designed for remote and outdoor valve applications, the system uses renewable energy to support valve operation and enables operators to control and monitor the valve remotely through a mobile phone or connected monitoring system.
By integrating valve actuation, renewable power supply and remote communication, the system provides a practical solution for field locations where conventional power supply or frequent on-site operation may be difficult.
II. Key Features
2.1、Wind & Solar Power Supply
The system can utilize wind and solar energy to provide power for the electric valve and associated control equipment.
Wind and solar power can be combined with energy storage and energy management to support operation in remote field environments.
2.2、Mobile Phone Remote Control
Wireless communication enables remote valve operation through a mobile phone, allowing operators to control the valve without being physically present at the installation site.
2.3、Intelligent Electric Actuation
The electric actuator receives commands from the control system and drives the gate valve.
According to the supplied documentation, the intelligent actuator control system can support valve operation, percentage control, fault alarm, ESD emergency shutdown and remote data upload.
2.4、Wireless Communication
The system documentation shows support for communication methods including:
GPRS / 4G / 5G / WiFi / LoRa
The communication method can be selected according to project and site requirements.
2.5、Remote Monitoring
Valve operating information and connected field data can be transmitted through the communication network for remote monitoring and management.
III. How the System Works
The Mobile Phone Controlled Electric Actuated Gate Valve combines several functional elements into one remote valve control system.
Wind & Solar Energy → Energy Management → Control System → Electric Actuator → Gate Valve
Wind and solar energy provide power for the field equipment. The energy management system manages the renewable power supply and energy storage.
When an operating command is received, the control system sends the command to the electric actuator. The actuator then drives the gate valve to perform the required operation.
Wireless communication provides the connection between the field equipment and the remote control or monitoring system.
IV. Intelligent Energy Management
The renewable energy system can be combined with intelligent energy management to manage power generation and battery energy storage.
The product documentation shows monitoring functions including:
- Charging Status
- Low Voltage
- Overcurrent
- Fault Information
These functions provide operating information related to the field power supply and energy storage system.
V. Intelligent Valve Control
The electric actuator can be integrated with the intelligent control system to provide remote valve operation and status management.
Functions shown in the supplied documentation include:
- Valve Operation
- Percentage Control
- Fault Alarm
- ESD Emergency Shutdown
- Remote Data Upload
This allows the gate valve to become part of a remotely controlled and monitored field system rather than operating only as a standalone valve.
VI. Field Instrument Integration
The control system can be connected with field instruments for process monitoring.
The supplied documentation shows monitoring of parameters including:
- Pressure
- Temperature
- Flow
- Water Level
The collected field information can be transmitted through the communication network and used as part of the remote monitoring and control system.
VII. Remote Monitoring & IoT Connectivity
The Mobile Phone Controlled Electric Actuated Gate Valve can be connected to an Industrial IoT monitoring and control system.
Depending on the system configuration, information available for remote monitoring can include:
- Valve Position
- Pressure
- Temperature
- Flow Rate
- Battery Status
- Operating Records
- Fault Records
The system documentation also shows communication technologies including WiFi, LoRa, NB-IoT, GPRS, 4G and 5G for different field communication requirements.
VIII. Typical Applications
Based on the applications shown in the supplied product materials, the system can be used for remote valve control in applications such as:
8.1、Agricultural Irrigation
Renewable energy and remote valve control can be used for irrigation systems where valves are distributed across field locations.
8.2、Water Control Systems
The electric gate valve can be integrated with remote monitoring and control equipment for water management applications.
8.3、Remote Pipeline Control
Wireless communication and renewable energy supply can support electric gate valve operation at remotely located pipeline installations.
IX. System Configuration
A typical system can consist of:
- Electric Actuated Gate Valve
- Wind Power Generation Equipment
- Solar Power Generation Equipment
- Energy Storage
- Energy Management System
- Intelligent Control Equipment
- Wireless Communication Equipment
- Mobile Phone / Remote Monitoring System
The actual configuration can be selected according to project and site requirements.
X. Why Use This Solution?
10.1、Renewable Energy for Remote Sites
Wind and solar energy provide an alternative power source for locations where access to conventional electrical infrastructure may be difficult.
10.2、Reduced Need for On-Site Operation
Remote control allows valve operating commands to be sent without requiring routine local operation at the valve installation point.
10.3、Integrated Monitoring
Valve status, power information and connected field instrument data can be incorporated into the remote monitoring system.
10.4、Flexible Communication
Multiple wireless communication methods can be selected according to the communication conditions and requirements of the project.
XI. Project Configuration
Configure the Valve System for Your Application
The appropriate configuration depends on the valve application, site conditions, power requirements and communication requirements.
For project evaluation and quotation, please provide available information including:
- Gate Valve Size
- Pipeline Medium
- Application
- Installation Environment
- Power Supply Conditions
- Remote Control Requirements
- Communication Requirements
- Field Instruments to Be Connected
- Monitoring Requirements
Based on the available project information, the valve, renewable energy supply, control and communication configuration can be selected according to the application requirements.
