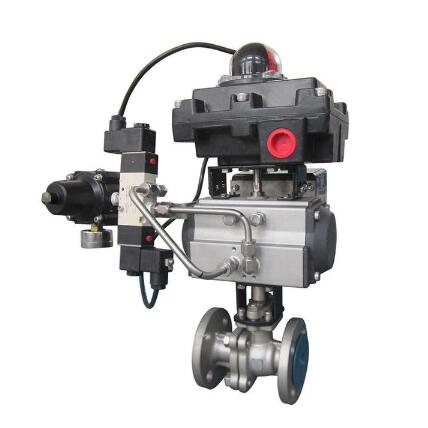

Single acting spring return fail open Pneumatic ball valve introduction:
Single acting spring return fail open Pneumatic ball valve is mainly composed of floating ball valve or trunnion ball valve, pneumatic actuator and related accessories. Single acting spring return fail open Pneumatic ball valve body adopts the silicon dissolves the tumble precision casting. Single acting spring return fail open Pneumatic ball valve has the high platform or yoke connection design. Through the compressed air as the power source, we may control the ball valve to open and close. Single acting spring return fail open Pneumatic ball valve overall structure is compact, switch quickly, which is equipped with electrical valve positioner, receive 4-20 mA control signal of industrial automation control system, to complete the adjustment of pipeline medium flow, pressure, temperature and other technical parameters, to achieve automatic control.
Single acting spring return fail open Pneumatic ball valve technical specification:
| Nominal Diameter | DN15-400mm |
| Nominal Perssure | PN1.6MPa;2.5MPa;4.0MPa;6.4MPa |
| Type of Connection | Flange |
| Driving Type | Pneumatic,Manual |
| Working Temperature | Soft seal: -30~+180ºC; metal-to-metal:-40~+450ºC |
| Body Material | Carbon steel(WCB),Stainless steel(CF8,CF83,CF3,CF3M) |
| Seat Material | PTFE,H,Y |
| Mode of Action | Single action(spring return),Double Action(normal open&normal close) |
| Control Type | Adjust type; On-off type |
| Accessory | Solenoid valve, positioner, limit switch, manual mechanism |
| Application range | Water, oil, gas, corrosive media, etc |
| Features | It has ompact structure, large flux, quick switching, and wide application range. |
Single acting spring return fail open Pneumatic ball valve Pneumatic actuator information:
| 1). Pressure Range: Max. Working pressure 10bar |
| 2). Air pressure: 2.5bar~8bar |
| 3). Adjustment Range: 90° ± 5° |
| 4). Ambient temperature: -20 ~ +90° C |
| 5). Type: Double-acting, Single-acting (spring return) |
| 6). Optional accessories: Solenoid valve, limite switch, electric position, air regulator |
| 7). Lubrication: All the moving parts are coated with lubricants, extending their service life |
| 8). Life Time: One million time |

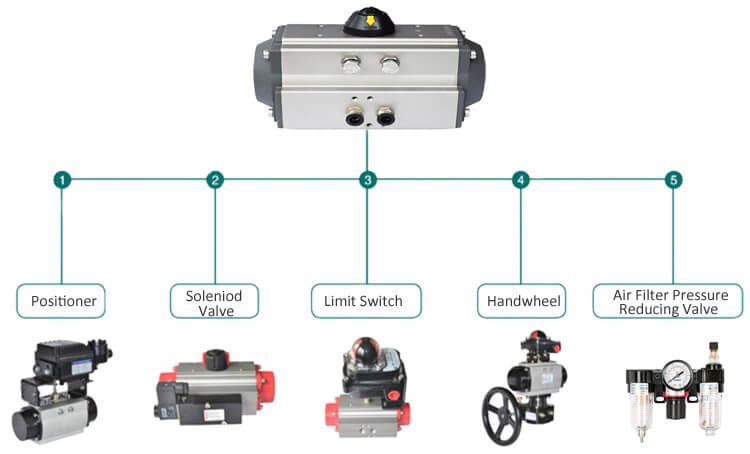

Single acting spring return fail open Pneumatic ball valve accessories:
1 Electric-Pneumatic (Pneumatic-pneumatic) positioner for regulating ball valve
2 Valve position transmitter
3 solenoid valve
4 limited switch
5 Air filter reducer
